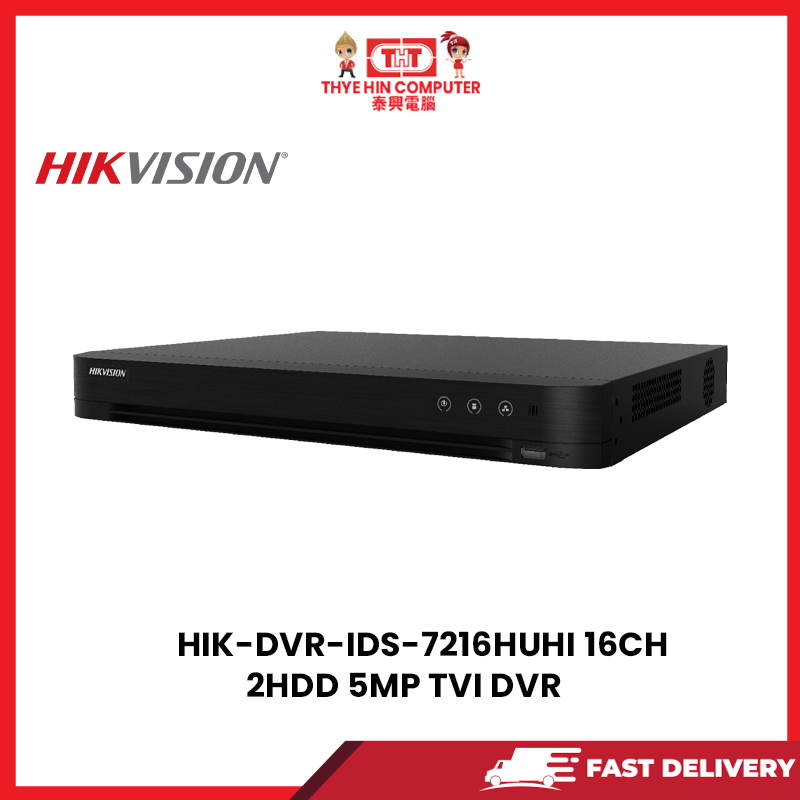

HIK-DVR-IDS-7216HUHI 16CH 2HDD 5MP TVI DVR [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM1899.00
IDS-7216HUHI-M2/S
16CH 5MP Acusense Turbo HD DVR
- 16 channels and 2 HDDs 1U AcuSense DVR
- Providing detailed information with face detection
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 32 network cameras can be connected.
Out of stock
HIK-DVR-IDS-7216HUHI 16CH 2HDD 5MP TVI DVR
| SPECIFICATIONS | |
| MOTION DETECTION 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| PERIMETER PROTECTION | |
| Human/Vehicle Analysis | Up to 4-ch |
| RECORDING | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | Main stream: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|
| Video bitrate | 32 Kbps to 10 Mbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bitrate | 64 Kbps |
| VIDEO AND AUDIO | |
| IP video input | 8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps |
| Up to 8 MP resolution | |
| Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Analog video input | 16-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| HDTVI input | 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4MP@30 fps, 4MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD input | 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| CVBS input | PAL/NTSC |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 576, NTSC: 704 480 |
| VGA output | 1-ch, 1920 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output |
| HDMI output | 1-ch, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI/VGA simultaneous output |
| Audio input | 1-ch (up to 16-ch is optional), RCA (2.0 Vpp, 1 KΩ) |
| 16-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Synchronous playback | 16-ch |
| NETWORK | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| AUXILIARY INTERFACE | |
| SATA | 1 SATA interface |
| Capacity | Up to 10TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Front panel: 1 USB 2.0 Rear panel: 1 USB 3.0 |
| Alarm in/out | N/A |
| GENERAL | |
| Power supply | 12 VDC, 5 A |
| Consumption (without hard disks) | ≤ 19 W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Dimensions (W x D x H) | 315 242 45 mm (12.4 9.5 1.8 inch) |
| Weight (without hard disks) | ≤ 2.1 kg (4.6 lb) |
| Weight | 2.10 kg |
|---|---|
| Dimensions | 31.50 × 24.20 × 4.50 cm |
Be the first to review “HIK-DVR-IDS-7216HUHI 16CH 2HDD 5MP TVI DVR [SBN:NO NILAI:NO MELAKA:NO HPS:NO]”
Related products

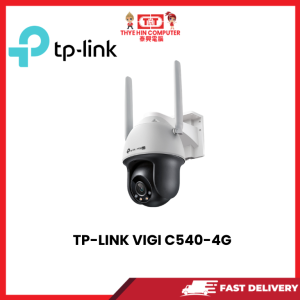

![TP-LINK VIGI C540(4MM) 4MP FULL COLOUR PAN&TILT NETWORK CAMERA [SBN:YES NILAI:NO MELAKA:NO HPS:NO]](https://thyehincomputer.com.my/wp-content/uploads/2026/03/6b8c6aa3b8a30b4f45093af4e3a77d76-300x300.png)
