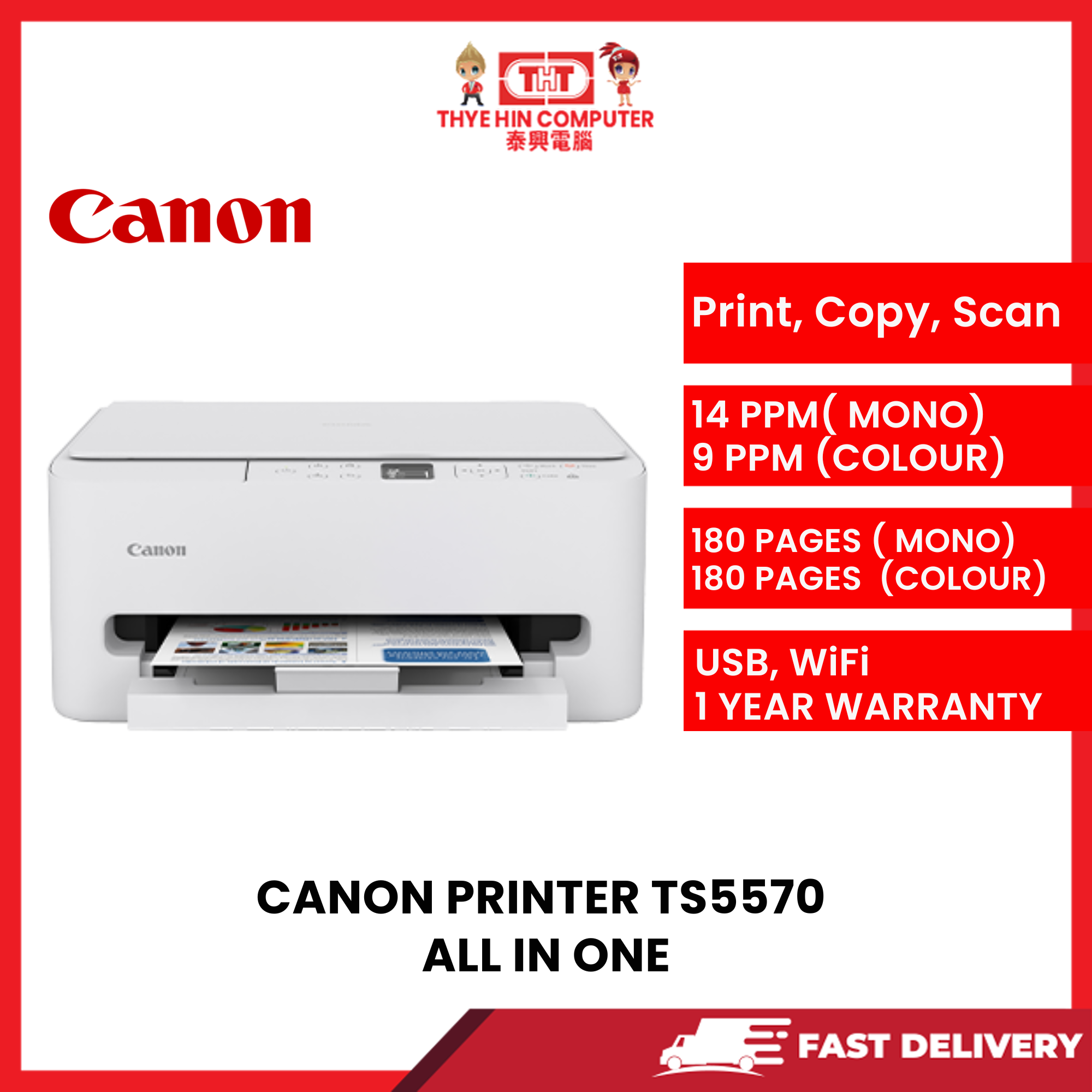

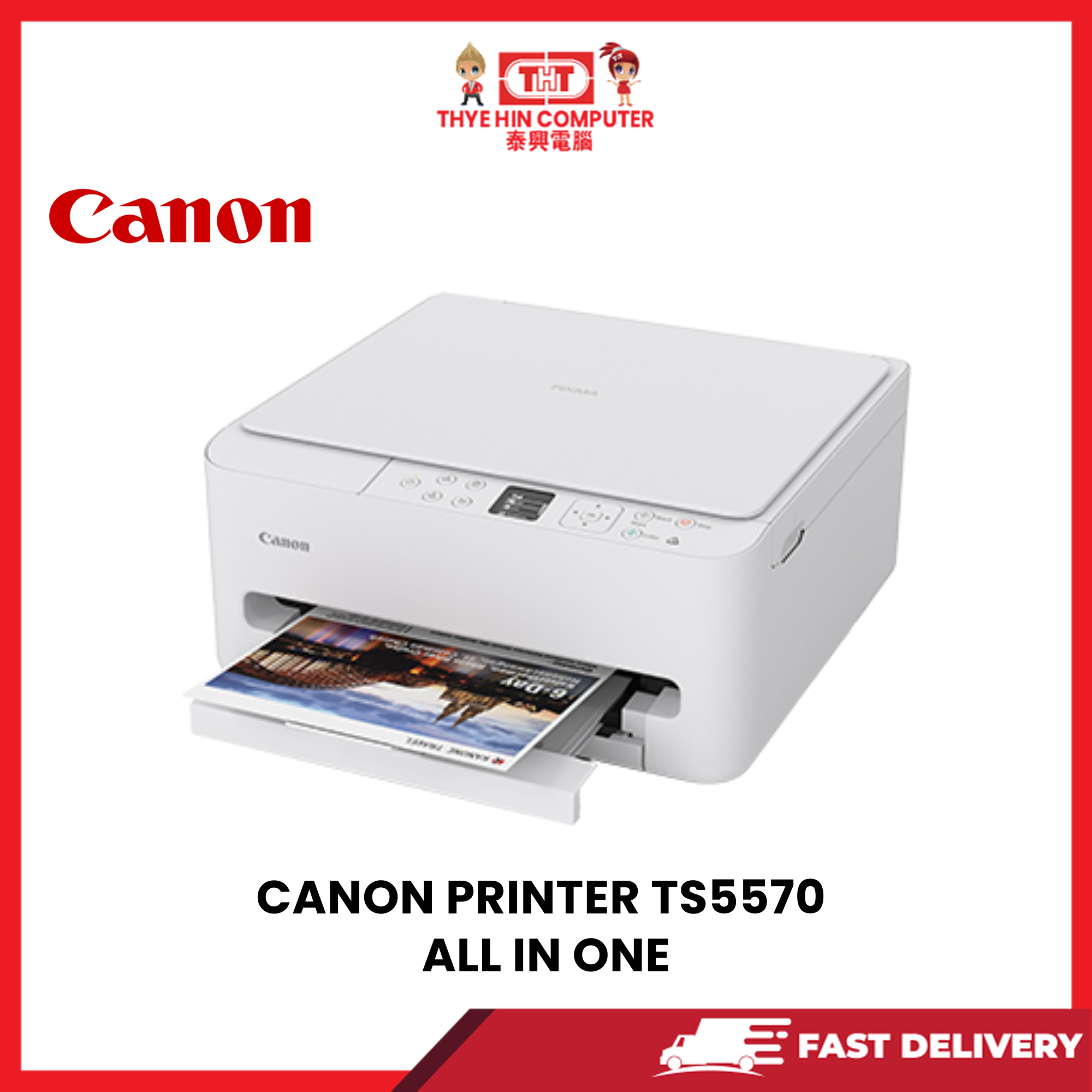

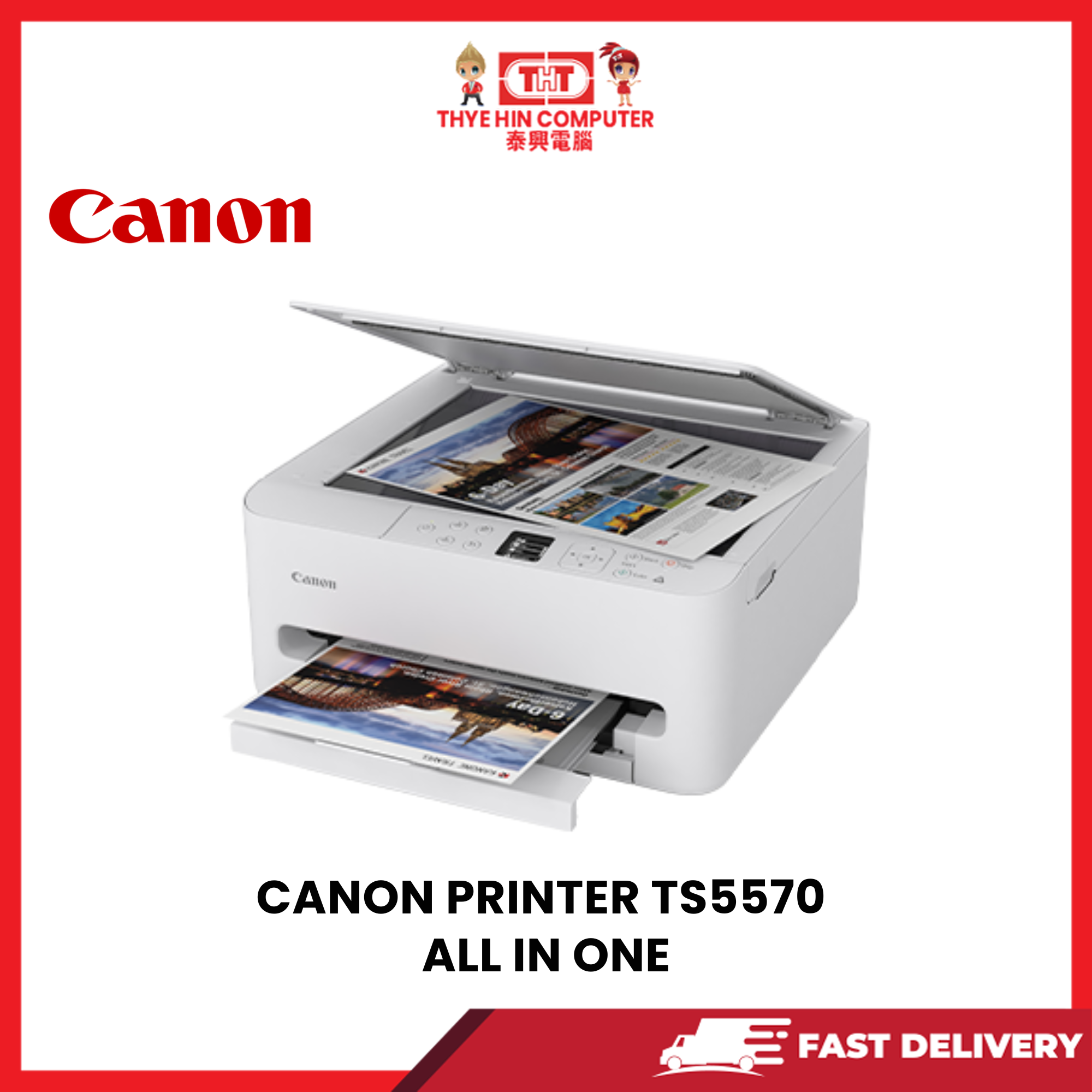

CANON PRINTER TS5570 ALL IN ONE [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

Print

• Number of nozzles: Total 3,136

• Ink cartridges (type/colours):

  • PG-795 (Pigment Ink / Black)

  • CL-786 (Dye-based Ink / Colour)

• Maximum print resolution: 1,200 (Horizontal) x 1,200 (Vertical) dpi

• Print speed (approx.):

  • Document (ESAT / Simplex): 14 / 9 ipm (Mono / Colour)

  • Document (ESAT / Duplex): 5.5 ipm (Colour)

  • Document (FPOT Ready / Simplex): 7.5 / 9.5 sec (Mono / Colour)

  • Photo 4 x 6" (PP-201 / Borderless): 39 sec

• Print width: Up to 216.0 mm (8.5")

Scan

• Scanner type: Flatbed

• Scanner technology: Contact Image Sensor (CIS)

• Optical resolution: 1,200 x 2,400 dpi

• Scanning bit depth (output):

  • Greyscale: 8 bit

  • Colour: RGB each 8 bit

• Maximum document size: A4, LTR (216 x 297 mm)

• Scan features: Save to PC, Attach to E-mail, Multi-Page PDF

Copy

• Copy speed (approx.):

  • Document (sFCOT / Simplex): 18 sec (Colour)

  • Document (sESAT / Simplex): 7 ipm (Colour)

• Maximum copies: 99 pages

• Maximum document size: A4, LTR

• Reduction / Enlargement: 25 – 400%

• Copy features: Two-sided, 2-on-1, 4-on-1, Frame Erase, ID Copy

Paper Handling

• Print margin:

  • Borderless printing: Top/Bottom/Left/Right: 0 mm

  • Bordered printing:

    • Envelope (COM10, DL): Top 8 mm, Bottom 12.7 mm, Left/Right 5.6 mm

    • LTR: Top/Bottom 5 mm, Left 6.4 mm, Right 6.3 mm

    • 4 x 6", 5 x 7", 7 x 10", 8 x 10": Top 3 mm, Bottom 5 mm, Left/Right 3.4 mm

    • Square (127 x 127 mm): Top/Bottom/Left/Right 6 mm

    • Custom size (Width 89 – 215.9 mm, Length 127 – 297 mm):

      • Top/Bottom 5 mm, Left 3.4 mm, Right 3.4 – 9.3 mm

    • Other: Top/Bottom 5 mm, Left/Right 3.4 mm

  • Bordered auto 2-sided printing:

    • Top/Bottom 5 mm, Left/Right 3.4 mm

    • (LTR: Left 6.4 mm, Right 6.3 mm)

• Supported media (cassette):

  • Plain Paper (64 – 105 g/m²)

  • High Resolution Paper (HR-101N)

  • Photo Paper Pro Luster (LU-101)

  • Photo Paper Plus Glossy II (PP-201, PP-208)

  • Matte Photo Paper (MP-101)

  • Envelope

• Paper size (cassette):

  • A4, A5, B5, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (127 x 127 mm), Envelope (COM10, DL)

  • Custom size: Width 89 – 215.9 mm, Length 127 – 297 mm

• Borderless printing: A4, B5, LTR, 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (127 x 127 mm)

• Auto 2-sided printing (plain paper 64 g/m²): A4, LTR

• Paper weight (cassette):

  • Plain paper: 64 – 105 g/m²

  • Canon paper: Approx. 265 g/m² (max., Photo Paper Plus Glossy II PP-201)

• Maximum capacity (cassette):

  • Plain Paper (A4/LTR, 64 g/m²): 100

  • High Resolution Paper (HR-101N): 80

  • Photo Paper Plus Glossy II (PP-201/PP-208, 4 x 6"): 20

  • Matte Photo Paper (MP-101, 4 x 6"): 20

Network

• Protocol: SNMP, HTTP, TCP/IP (IPv4 / IPv6)

• TLS: 1.3 / 1.2

• Wireless LAN type: IEEE 802.11a/b/g/n

• Frequency band: 2.4 GHz / 5 GHz

• Channel:

  • 2.4 GHz: 1 – 13 (Taiwan: 1 – 11 only)

  • 5 GHz: W52, W53, W58 (Taiwan: W52 / W53 / W56 / W58)

• Security: WPA-PSK (AES), WPA2-PSK (AES), WPA3-SAE (AES)

• Direct connection (wireless LAN): 2.4 GHz available

Printing Solutions

• Canon printing apps:

  • Mobile (iOS / Android): Canon PRINT, Easy-PhotoPrint Editor

  • PC (Windows / Mac): Canon PRINT, Easy-PhotoPrint Editor, Easy-Layout Editor (Win only), PosterArtist Lite (Win only), PosterArtist Web (browser), Creative Park (browser)

• Mobile / cloud printing:

  • AirPrint®, Mopria® Print Service, Canon Print Service (Android)

  • Cloud Integration Service (via smartphone / tablet)

  • Wireless Direct

System Requirements

• OS compatibility:

  • Windows 11 / 10 / 8.1 / 7 SP1

  • macOS 12 – 14 or later

  • ChromeOS

General Specifications

• Operation panel display: 1.42" OLED (monochrome)

• Interface: USB 2.0

• Operating environment:

  • Temperature: 5 – 35°C

  • Humidity: 10 – 90% RH (no dew condensation)

• Recommended environment:

  • Temperature: 15 – 30°C

  • Humidity: 10 – 80% RH (no dew condensation)

• Storage environment:

  • Temperature: 0 – 40°C

  • Humidity: 5 – 95% RH (no dew condensation)

• Quiet mode: Available

• Acoustic noise (PC print, plain paper): 47 dB(A)

• Power requirements: AC 100 – 240 V, 50/60 Hz

• Power consumption (approx.):

  • Off: 0.09 W

  • Standby (USB connection to PC): 0.9 W

  • Operation (USB connection to PC): 21 W

• Dimensions (W x D x H, approx.):

  • Factory configuration: 374 x 355 x 168 mm

  • Output / trays extended: 374 x 533 x 168 mm

• Weight (approx.): 5.3 kg
