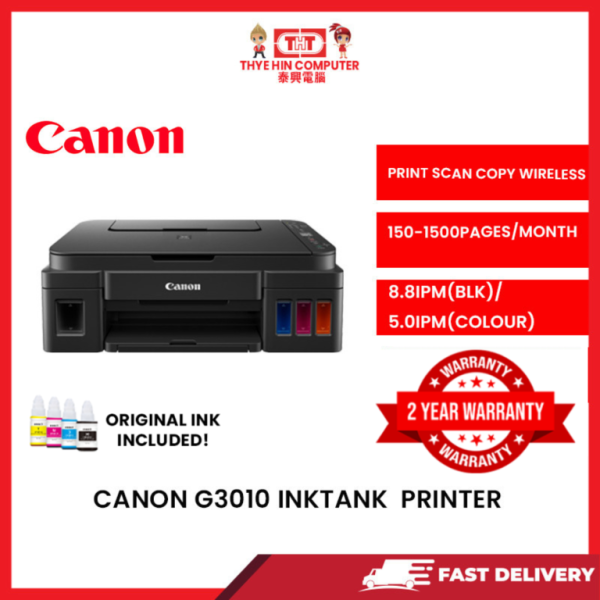

PIXMA G3010

Refillable Ink Tank Wireless All-In-One for High Volume Printing

Designed for high volume printing at low running cost

• Print, Scan, Copy
• Print Speed (A4, ISO): up to 8.8 / 5 ipm (mono/colour)
• Wi-Fi, Mopria, Direct Wireless
• Recommended Monthly Print Volume: 150 – 1500 pages

Features



High Page Yield Ink Bottles

With high page yield ink bottles up to 7,000* pages, users can enjoy printing without having to worry about cost of ink, or ink supplies running low.

* Click here for more information.



Integrated Ink Tank System

Built-in integrated ink tanks create a compact printer body. Users can also view remaining ink levels easily at a glance.



Spill-Resistant Ink Bottle Design

The ink bottles come with a special tip design that reduces spillage during ink refilling.



One-Touch Direct Wireless Connection

Connect to your smartphone easily.



Support Borderless Printing

Print borderless photos up to A4 size







Printer
Maximum Printing Resolution	4800 (horizontal)*1 x 1200 (vertical) dpi
Print Head / Ink	Number of Nozzles:		Total 1,472 nozzles
	Ink Bottles		GI-790 (Black, Cyan, Magenta, Yellow)
Print Speed*2 Based on ISO / IEC 24734 Click here summary report Click here for Document Print and Copy Speed Measurement Conditions	Document: Col	ESAT / Simplex	Approx. 5.0 ipm
	Document: B / W	ESAT / Simplex	Approx. 8.8 ipm
	Document: Col	FPOT Ready/Simplex	Approx. 17 sec
	Document: B / W	FPOT Ready/Simplex	Approx. 11 sec
	Document: Col	FPOT Sleep/Simplex	Approx. 22 sec
	Document: B / W	FPOT Sleep/Simplex	Approx. 14 sec
	Photo (4 x 6")	PP-201 / Borderless	Approx. 60 sec
Printable Width	Bordered:		Up to 203.2 mm (8")
	Borderless:		Up to 216 mm (8.5")
Printable Area	Borderless Printing*3		Top / Bottom / Right / Left margin: each 0 mm (Supported Paper Size: A4 / Letter / 4 x 6" / 5 x 7" / 8 x 10" / Square (5 x 5") / Business Card)
	Bordered Printing		Top margin: 3 mm, Bottom margin: 5 mm, Left / Right margin: each 3.4 mm (Letter / Legal: Left: 6.4 mm, Right: 6.3 mm)
Recommended Printing Area	Top margin:		31.2 mm
	Bottom margin:		32.5 mm
Paper Size	A4, A5, B5, Letter, Legal, 4 x 6", 5 x 7", 8x 10", Envelopes (DL, COM10), Square (5 x 5"), Business Card, Custom size (width 55 – 215.9 mm, length 89 – 676 mm) * F4 is possible via custom size settings.
Paper Handling (Rear Tray) (Maximum Number)	Plain Paper		A4, A5, B5, Letter = 100, Legal = 10
	High Resolution Paper (HR-101N)		A4, Letter = 80
	Photo Paper Plus Glossy II (PP-201)		A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10, Square (5 x 5") = 20
	Photo Paper Plus Semi-Gloss (SG-201)		A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10
	Matte Photo Paper (MP-101)		A4, Letter = 10, 4 x 6" = 20
	Envelope		European DL / US Com. #10 = 10
	Glossy Photo Paper "Everyday Use" (GP-508)		A4 = 10, 4 x 6" = 20
	Photo Paper Plus Glossy II (PP-208)		A4, 4 x 6" = 10
	Photo Sticker		PS-108, PS-308R, PS-208, PS-808 = 1
Paper Weight	Rear Tray		Plain Paper: 64 – 105 g/m2, Canon specialty paper: max paper weight: approx. 275 g/m2 Photo Paper Plus Glossy II (PP-201)
Ink End Sensor	Dot count
Print Head Alignment	Manual
Scan*4
Scanner Type	Flatbed
Scanning Method	CIS (Contact Image Sensor)
Optical Resolution*5	600 x 1200 dpi
Scanning Bit Depth (Input / Output)	Grayscale:		16 / 8-bit
	Colour:		48 / 24-bit (RGB each 16 / 8-bit)
Line Scanning Speed*6	Grayscale:		1.5 ms/line (300 dpi)
	Colour:		3.5 ms/line (300 dpi)
Scanning Speed*7	Reflective: A4 Colour / 300 dpi		Approx. 19 sec
Maximum Document Size	Flatbed:		A4 / Letter (216 x 297 mm)
Copy
Maximum Document Size	A4 / Letter (216 x 297 mm)
Compatible Media	Size:		A4, Letter
	Type:		Plain Paper
Image Quality	Plain Paper: Fast, Standard
Copy Speed*8 Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions	Document: Colour sFCOT / Simplex		Approx. 24 sec
	Document: Colour sESAT / Simplex		Approx. 3.5 ipm
Multiple Copy	Black / Colour:		1 – 20 pages
Network
Protocol	TCP / IP
Wireless	Network Type:		IEEE 802.11n / IEEE 802.11g / IEEE 802.11b
	Frequency Band:		2.4 GHz
	Channel*9:		1 – 13
	Range:		Indoor 50 m (depends on the transmission speed and conditions)
	Security:		WEP 64 / 128-bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
Direct Connection (Wireless LAN)	Available (AP Mode only)
Printing Solutions
Mopria	Available
Smart Device Print Plug-In (for Android / Amazon device)	Available
PIXMA Cloud Link	From smartphone or tablet:		Available
Canon PRINT Inkjet / SELPHY App (for iOS / for Android) Canon Easy-PhotoPrint (for Windows RT)	Available
	Layout	1-up (bordered / borderless*10)	Letter, A4, 4 x 6", 5 x 7", 8 x 10", Square 5 x 5", Business card
		1-up (bordered only)	A5, B5, Legal
	Print Quality		Fixed
System Requirements (Please visit www.canon-asia.com to check OS compatibility and to download the latest driver updates)	Windows:		Windows 10, Windows 8.1, Windows 7 SP1
	Macintosh:		Mac OS is not supported
	Others:		Chrome OS
General Specifications
Operation Panel	Display		LCD (1.2 inch segment mono)
Interface	USB 2.0 Hi-Speed
Paper Output Tray	A4, Letter = 50, Legal = 10
Operating Environment*11	Temperature:		5 – 35°C
	Humidity:		10 – 90% RH (no dew condensation)
Recommended Environment*12	Temperature:		15 – 30°C
	Humidity:		10 – 80% RH (no dew condensation)
Storage Environment	Temperature:		0 – 40°C
	Humidity:		5 – 95% RH (no dew condensation)
Quiet Mode	Available
Acoustic Noise (PC Print)*13	Plain Paper (A4, B/W)		Approx. 53.5 dB(A)
Power	AC 100 – 240 V; 50/60 Hz
Power Consumption	Connection to PC		WiFi
	OFF:		Approx. 0.2 W
	Standby (scanning lamp is off): (USB connection to PC)		Approx. 1.2 W
	Standby (all ports connected, scanning lamp is off)		Approx. 1.2 W
	Copying*14: G3010		Approx. 11 W
Environment	Regulation:		RoHS (EU, China), WEEE (EU)
Dimension (W x D x H)	Factory configuration		Approx. 445 x 330 x 163 mm
	Output / ADF trays extended		Approx. 445 x 533 x 260 mm
Weight	Approx. 6.3 kg
