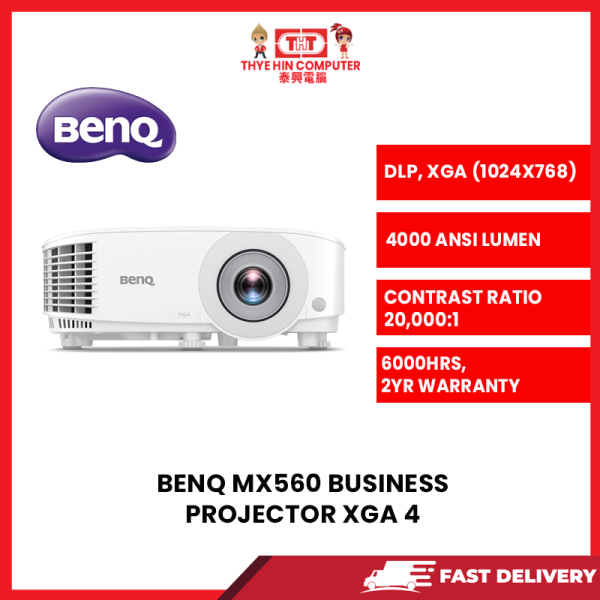

BENQ MX560 BUSINESS PROJECTOR XGA 4000LM HIGH CONTRAST DLP 20000:1 SMARTECO 1024/768 2YRS

All Specifications

Display

Brightness (ANSI lumens)

4000

Native Resolution

XGA (1024×768)

Native Aspect Ratio

4:3

Contrast Ratio (FOFO)

20,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Lamp

Light Source Life

a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs

Optical

Throw Ratio

1.96~2.15

Zoom Ratio

1.1x

Lens

F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm

Projection Offset (Full-Height)

110%

Keystone Adjustment

1D, (Auto) Vertical ± 40 degrees


Picture Modes

3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2

Compatibility

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

23~120KHz

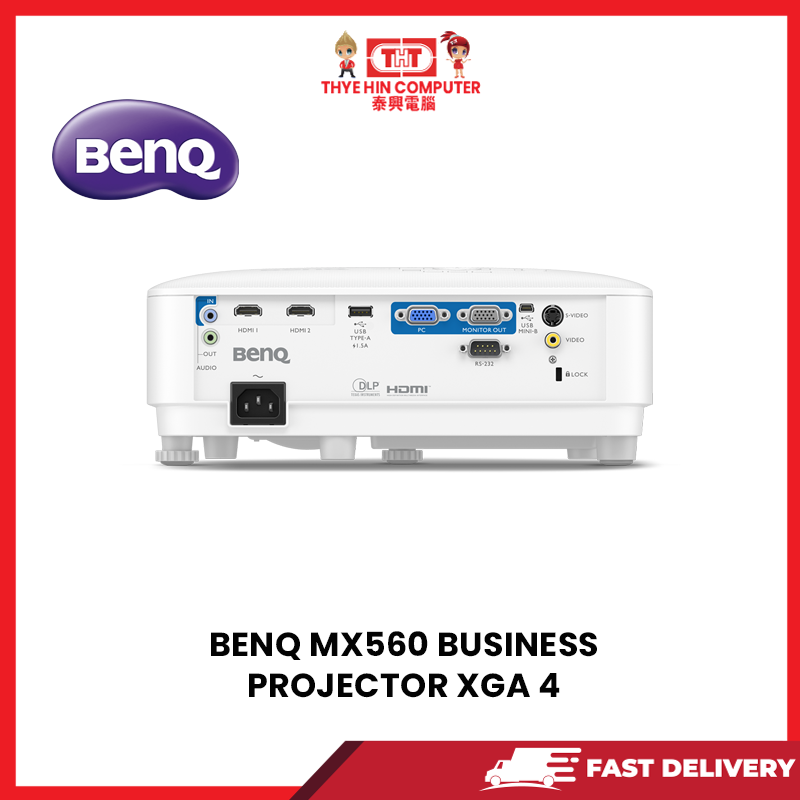

I/O Interface

PC in (D-sub 15pin)

(x1)

Monitor out (D-sub 15pin)

(x1)

Composite Video in (RCA)

(x1)

S-Video in (Mini DIN 4pin)

(x1)

HDMI in

(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)

USB Type A

(x1)

USB Type Mini B

(x1)

RS232 in (DB-9pin)

(x1)

Audio

Speaker

(x1), 10W

Audio in (3.5mm Mini Jack)

(x1)

Audio out (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

260W/110V

Acoustic Noise (Typ./Eco.)(dB)

34/29

Accessories

Carry Bag

Yes, 5J.J3T09.001 (optional)

Remote Control w/ Battery

RCX016

Power Cord (by region)

x1 (1.8M)

VGA(D-sub 15pin) Cable

(Standard), 1 (1.5m)

3D Glasses

(Optional), DGD5

Quick Start Guide

(x1) 21L

Warranty Card (by region)

Yes

Universal Ceiling Mount

(Optional), CM00G3

Dimension & Weight

Dimensions (WxHxD) (mm)

296 x120 x221

Net Weight (kg)

2.3

Projection System

Projection System

DLP
