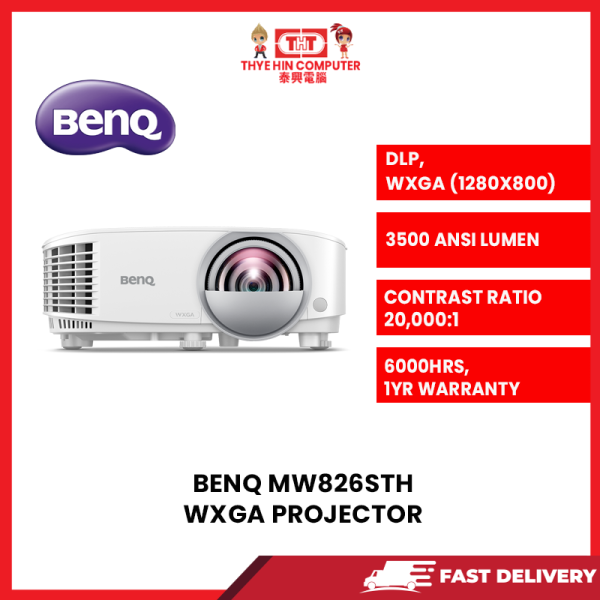

BENQ MW826STH WXGA 3500 LUMENS SHORT THROW WXGA 1280*800 16:10 20000:1 PROEJCTOR

All Specifications

Display

Brightness (ANSI lumens)

3500

Native Resolution

WXGA (1280×800)

Native Aspect Ratio

16:10

Contrast Ratio (FOFO)

20,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Lamp

Light Source Life

a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs

Optical

Throw Ratio

0.49

Zoom Ratio

Fixed

Lens

F/# = 2.6,f = 6.9 mm

Projection Offset (Full-Height)

105%

Keystone Adjustment

1D, Vertical ± 30 degrees


Picture Modes

3D, Bright, Cinema, Presentation, sRGB, User 1, User 2

Compatibility

Input Lag

34 ms (1080p@60Hz)

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

23~120KHz

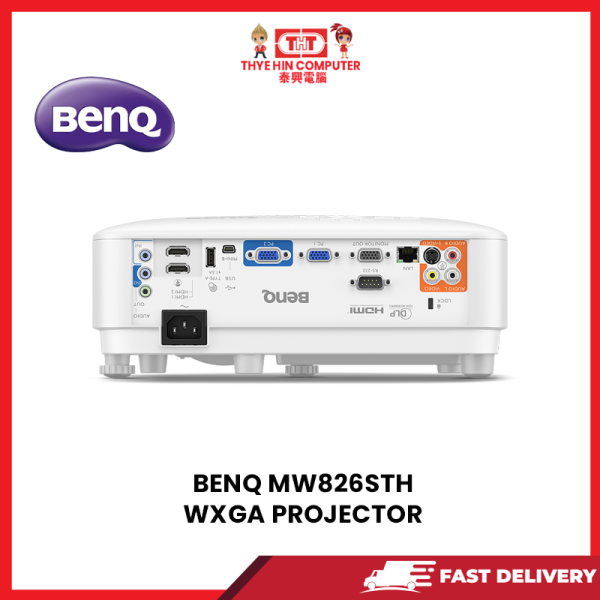

I/O Interface

PC in (D-sub 15pin)

(x2)

Monitor out (D-sub 15pin)

(x1)

Composite Video in (RCA)

(x1)

S-Video in (Mini DIN 4pin)

(x1)

HDMI in

(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL)

LAN (RJ45)

(x1)

USB Type A

(x1), USB Type A-1 (2.0/Power Supply1.5A)

USB Type Mini B

(x1), USB Type Mini B-1(service/Page up&down)

RS232 in (DB-9pin)

(x1)

Audio

Speaker

(x1), 10W

Audio in (3.5mm Mini Jack)

(x2)

Audio out (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

260

Acoustic Noise (Typ./Eco.)(dB)

33/29

Accessories

Carry Bag

Yes,5J.J3T09.001 (optional)

Remote Control w/ Battery

RCE013

Power Cord (by region)

x1 (3.0M)

VGA(D-sub 15pin) Cable

1 (1.5m)

3D Glasses

(Optional), DGD5

Quick Start Guide

(x1) 18L

Warranty Card (by region)

Yes

Anti-dust Filter

(Optional), All SKU

Wall Mount

(Optional), WM06G3

InstaShow Host

LAN (RJ45)

(x1)

Dimension & Weight

Dimensions (WxHxD) (mm)

296 x120 x239

Net Weight (kg)

2.6

Projection System

Projection System

DLP
