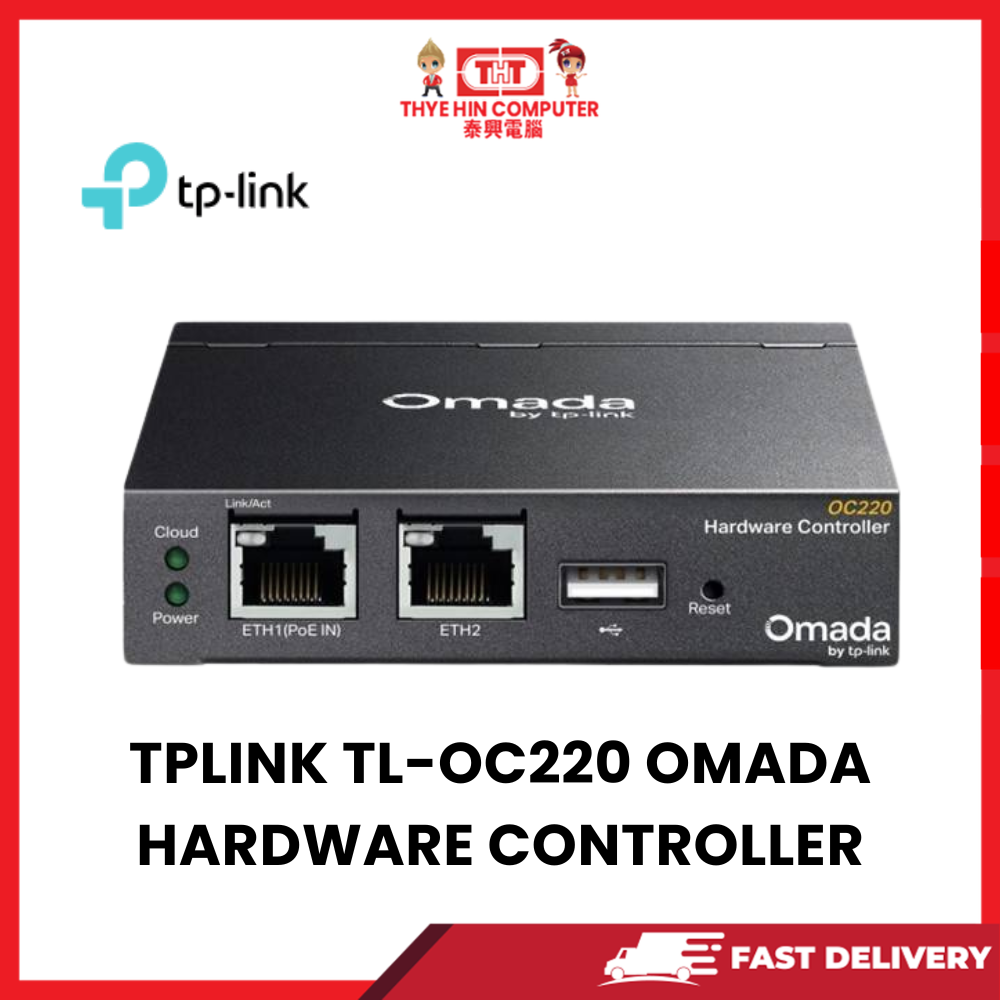

TPLINK TL-OC220 OMADA HARDWARE CONTROLLER

Key Features

• Centralized management for Omada SDN devices
• Supports up to 100 Omada Access Points
• Supports up to 10 Omada Gateways
• Supports up to 20 Omada Switches
• Supports up to 2 compatible DeltaStream GPON OLTs
• Free cloud access via Omada Cloud
• Remote management through the Omada App
• Multi-site management
• Layer 3 network management
• Dual Gigabit Ethernet ports
• USB 2.0 port for backup
• Powered by 802.3af/at PoE or Micro-USB (5V/1A)
• Compact desktop or wall-mount design
• Durable metal enclosure

Specifications

• Brand: TP-Link
• Model: TL-OC220
• Processor: Quad-Core ARM Cortex-A53 @ 2.0 GHz
• Memory: 2 GB DDR4
• Storage: 8 GB eMMC + 4 MB NOR Flash
• Ethernet Ports: 2 × Gigabit RJ45
• USB Port: 1 × USB 2.0
• Power Input:
  • 802.3af/at PoE
  • Micro-USB DC 5V / 1A
• Maximum Power Consumption:
  • 11.2 W (PoE with USB device connected)
  • 3.5 W (Micro-USB power only)
• Management: Omada SDN Hardware Controller
• Operating Temperature: -5°C to 50°C
• Operating Humidity: 10%–90% RH (non-condensing)

Package Contents

• TP-Link OC220 Hardware Controller
• RJ45 Ethernet Cable
• Quick Installation Guide
