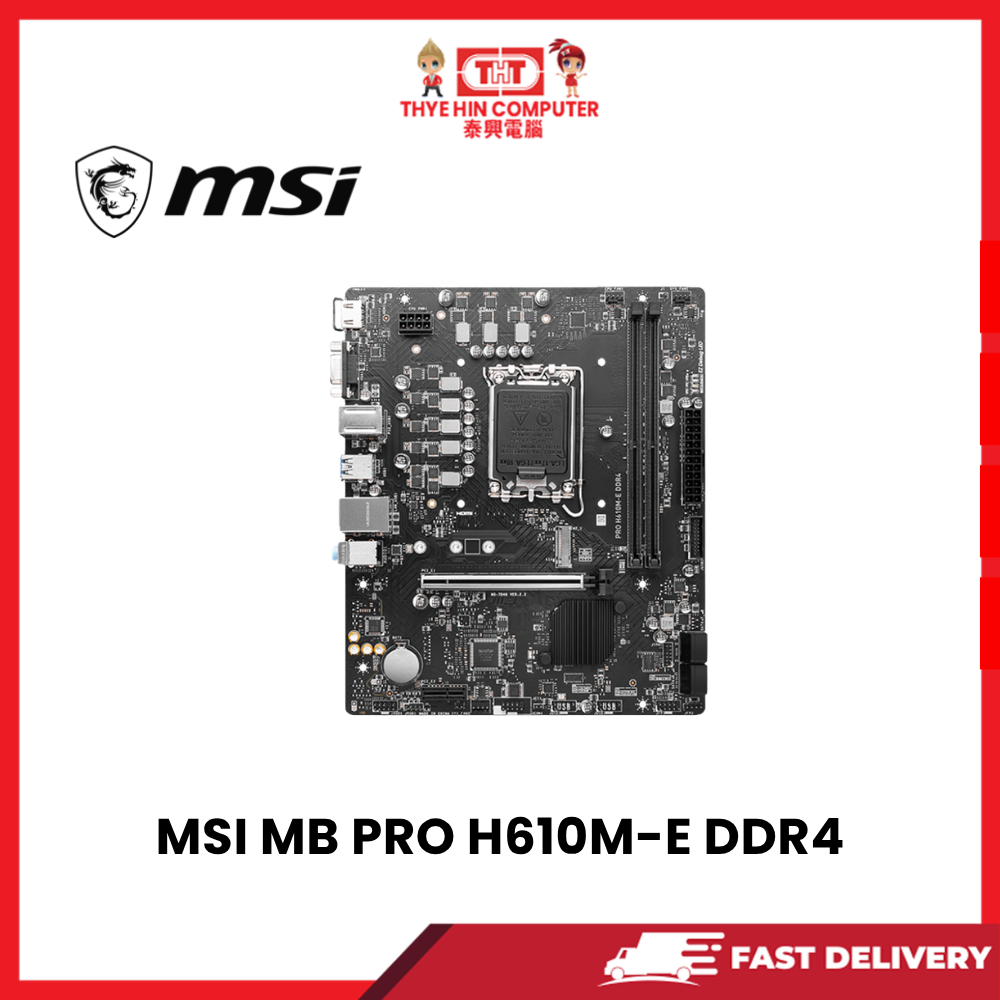

MSI MB PRO H610M-E DDR4

Brand: MSI

Series: PRO Series

Model: PRO H610M-E DDR4

Product Type: Intel Desktop Motherboard

Chipset: Intel H610

CPU Socket: Intel LGA1700

Form Factor: Micro-ATX (M-ATX)

Processor Compatibility: Supports Intel Core 12th, 13th and 14th Generation processors, Intel Pentium Gold and Celeron processors.

BIOS Compatibility: Some processors may require a compatible BIOS version.

Memory Type: DDR4

Memory Slots: 2 × DDR4 DIMM Slots

Maximum Memory Capacity: Up to 64GB

Supported Memory Speed: Up to DDR4 3200MHz

Memory Architecture: Dual-Channel

Memory Compatibility: Supports non-ECC, unbuffered DDR4 memory.

PCIe Graphics Slot: 1 × PCIe 4.0 x16 Slot

Additional Expansion Slot: 1 × PCIe 3.0 x1 Slot

M.2 SSD Slot: 1 × M.2 Slot for Compatible NVMe SSDs

Supported M.2 Sizes: 2242 / 2260 / 2280

M.2 Interface: PCIe 3.0 x4

SATA Storage Ports: 4 × SATA III 6Gb/s

HDMI Output: 1 × HDMI 1.4

Maximum HDMI Resolution: Up to 4K at 30Hz

VGA Output: 1 × VGA

Display Output Requirement: Onboard video outputs require a processor with integrated graphics.

Audio Chipset: Realtek ALC897

Audio Channels: 7.1-Channel High Definition Audio

LAN Controller: Realtek RTL8111H

Network Connectivity: Gigabit Ethernet (10/100/1000Mbps)

Rear USB Ports: 2 × USB 3.2 Gen 1 Type-A and 4 × USB 2.0

Internal USB Support: Additional USB 3.2 Gen 1 and USB 2.0 ports through internal headers.

CPU Power Connector: 1 × 8-Pin 12V

Motherboard Power Connector: 1 × 24-Pin ATX

CPU Fan Connector: 1 × 4-Pin

System Fan Connectors: 2 × 4-Pin

RGB Header: 1 × 4-Pin RGB LED Connector

EZ Debug LEDs: Built-in diagnostic LEDs help identify CPU, memory, graphics and boot-related startup issues.

TPM Header: Supports a compatible TPM module.

Intel Processor Support: Suitable for compatible Intel Core i3, i5, i7 and i9 processors using the LGA1700 socket.

DDR4 Memory Support: Provides an upgrade option for users building or maintaining a DDR4 desktop computer.

High-Speed NVMe Storage: Supports compatible M.2 NVMe SSDs for fast operating system boot-up and application loading.

Dedicated Graphics Card Support: PCIe 4.0 x16 slot allows installation of compatible graphics cards.

Gigabit LAN Connectivity: Provides stable wired networking for office work, browsing and online applications.

Compact Micro-ATX Design: Suitable for compatible Micro-ATX and ATX desktop PC cases.

Office Productivity: Suitable for business desktop computers, office applications and everyday computing.

Home Computer Builds: Designed for general-purpose desktop systems, online learning and home entertainment.

Budget Gaming PC Builds: Supports compatible Intel processors and dedicated graphics cards for entry-level gaming configurations.

Operating System Support: Windows 10 64-bit and Windows 11 64-bit.

Motherboard Dimensions: 236 × 200mm

Ideal For: Office desktops, student computers, home PCs, budget gaming systems and custom desktop builds.

Package Includes: 1 × MSI PRO H610M-E DDR4 Motherboard. Additional accessories depend on the retail package.

Important Note: DDR4 memory only; DDR5 RAM is not compatible with this motherboard.

CPU Installation Note: Verify the processor support list and required BIOS version before installation.

Performance Note: Actual system performance depends on the processor, RAM, graphics card, storage and system configuration.
