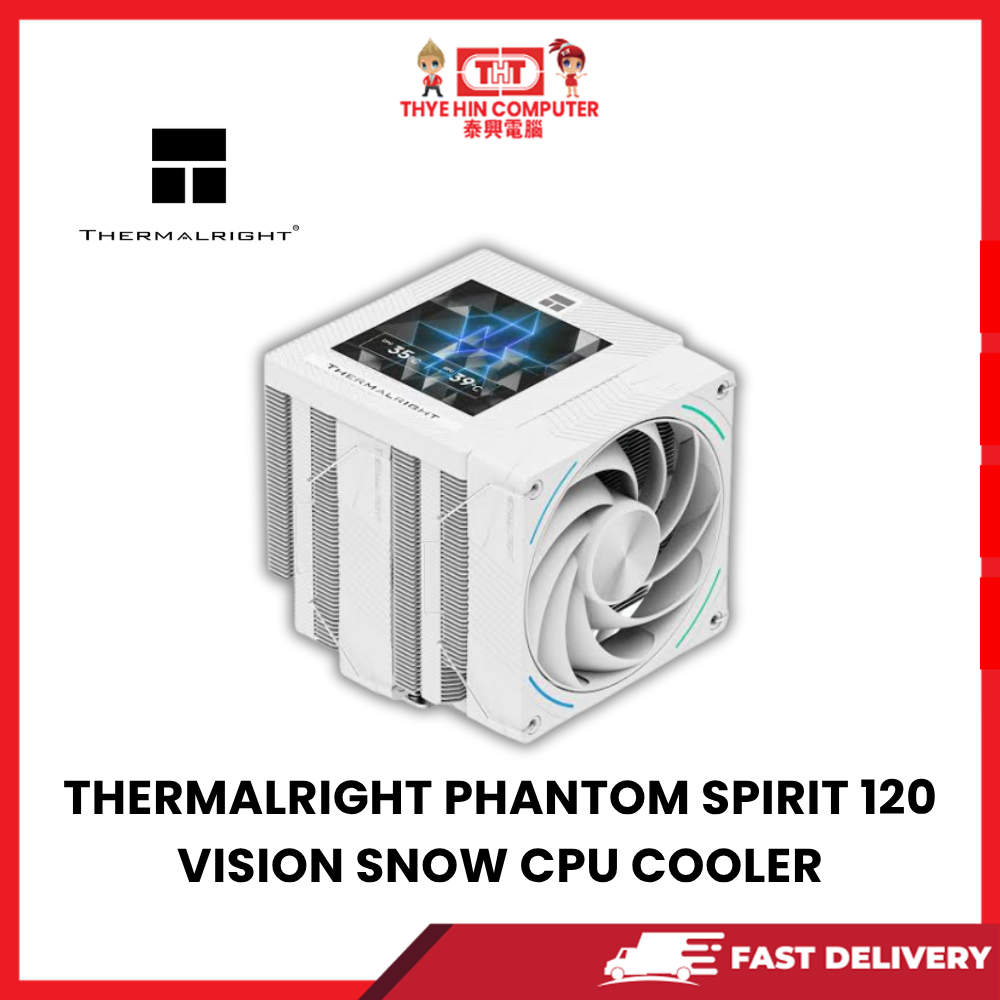

THERMALRIGHT PHANTOM SPIRIT 120 VISION SNOW CPU COOLER

Brand: Thermalright

Series: Phantom Spirit

Model: Phantom Spirit 120 Vision Snow

Product Type: Dual-Tower CPU Air Cooler with LCD Display

Colour: Snow White

Cooling Technology: High-Performance Air Cooling

Heatsink Design: Dual-Tower Aluminum Fin Heatsink

Cooling Fans: 2 × 120mm PWM ARGB Fans

Fan Model: TL-K12W-X28-R9

LCD Display Size: 3.95 Inches

LCD Resolution: 480 × 480 Pixels

LCD Connection: Internal USB 2.0 9-Pin Motherboard Header

Heat Pipes: 7 × 6mm Heat Pipes

CPU Contact Base: C1100 Pure Copper with Nickel Plating

Cooler Dimensions: 125 × 138 × 160mm

Cooler Height: 160mm

Fan Dimensions: 120 × 120 × 28mm

Maximum Fan Speed: 2150 RPM ±10%

Maximum Airflow: 92 CFM

Maximum Static Pressure: 3.0 mmH₂O

Maximum Fan Noise: 36 dBA

Fan Bearing Type: S-FDB V2 Bearing

Fan Connector: 4-Pin PWM

ARGB Connector: 5V 3-Pin Addressable RGB

High-Performance Dual-Tower Cooling: Designed to dissipate heat efficiently from compatible Intel and AMD desktop processors.

Seven Heat Pipe Design: Features seven 6mm heat pipes for efficient heat transfer from the CPU contact base to the aluminum heatsink fins.

3.95-Inch LCD Display: Integrated display enhances the appearance of gaming and professional desktop PC builds.

Customisable LCD Screen: Supports compatible software-controlled screen content and system monitoring functions.

480 × 480 High-Resolution Display: Provides detailed visuals for supported monitoring information and personalised screen content.

Dual 120mm Cooling Fans: Two high-performance PWM fans provide strong airflow across the dual-tower heatsink.

Up to 2150 RPM Fan Speed: Delivers adjustable cooling performance for different processor workloads.

PWM Intelligent Fan Control: Allows compatible motherboards to adjust fan speed automatically according to temperature and fan settings.

ARGB Lighting Effects: Addressable RGB fans provide customisable lighting for gaming PC setups.

Motherboard RGB Synchronisation: Supports compatible 5V ARGB motherboard headers and lighting controllers.

S-FDB V2 Fan Bearings: Designed for smooth fan rotation and reliable cooling operation.

Nickel-Plated Copper Base: Provides an efficient contact surface for transferring processor heat into the heat pipes.

Premium Snow White Design: White heatsink and matching fans complement white-themed gaming PCs and custom builds.

Intel Socket Compatibility: LGA115X / LGA1200 / LGA1700 / LGA1851.

AMD Socket Compatibility: AM4 / AM5.

Gaming PC Cooling: Suitable for compatible gaming desktop systems and performance-oriented processors.

Workstation Cooling: Supports cooling requirements for compatible productivity, rendering and content creation PCs.

LCD Software Control: Requires compatible Thermalright display software for supported customisation and monitoring features.

Thermal Paste Included: Includes thermal compound for installing the cooler onto a compatible processor.

PC Case Compatibility: Requires a chassis with more than 160mm CPU cooler height clearance.

Memory Clearance: Check RAM module height and motherboard layout before installation.

Ideal For: Gaming PCs, custom desktop builds, workstation cooling, Intel and AMD CPU upgrades and white-themed PC setups.

Package Includes:

• 1 × Thermalright Phantom Spirit 120 Vision Snow Dual-Tower Heatsink with LCD Panel

• 2 × TL-K12W-X28-R9 Cooling Fans

• 1 × Fan Y-Splitter Cable

• 1 × Thermal Paste

• Intel and AMD Mounting Hardware

• Fan Clips and Installation Accessories

Important Note: This is an air CPU cooler, not an AIO liquid cooling system.

LCD Connection Note: Requires an available internal USB 2.0 9-pin header for display functionality.

ARGB Safety Note: Do not connect the 5V 3-pin ARGB connector to a 12V 4-pin RGB header.

Performance Note: Actual cooling performance, temperatures and noise depend on processor power, motherboard settings, case airflow and ambient temperature.
