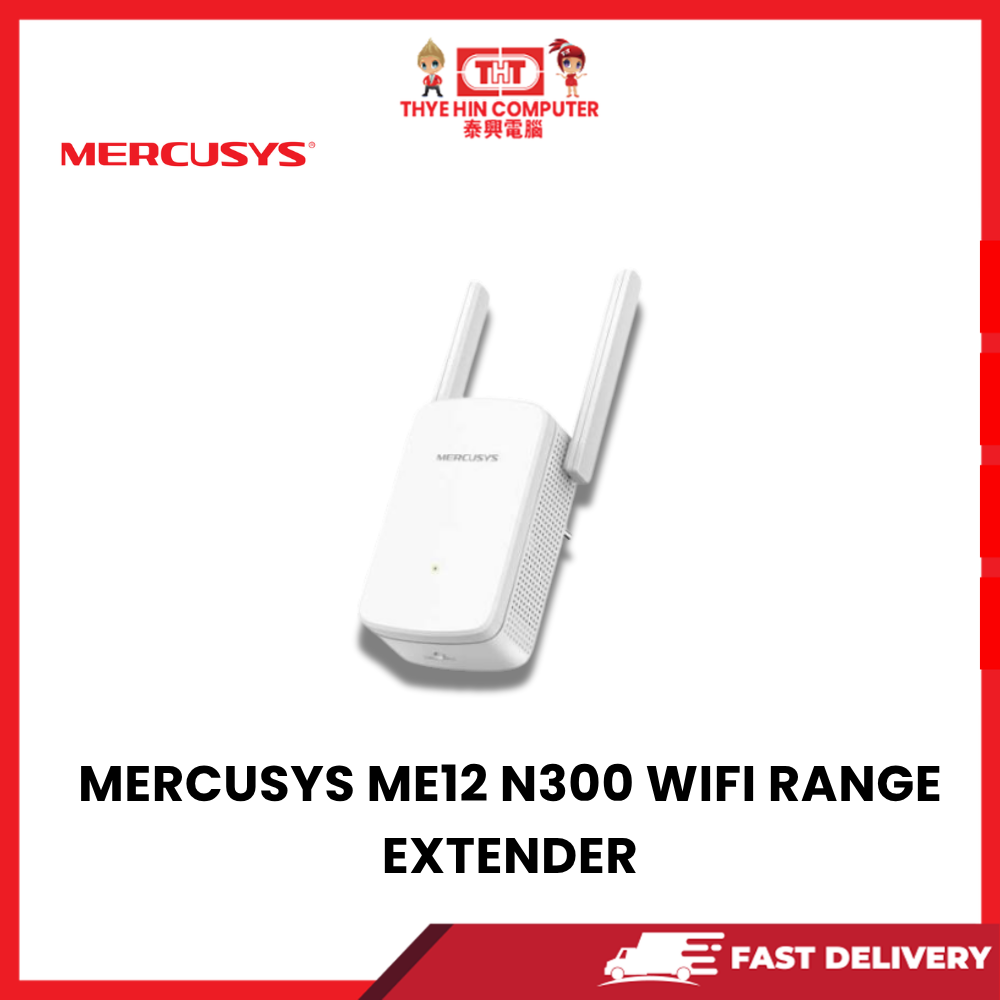

MERCUSYS ME12 N300 WIFI RANGE EXTENDER

Brand: MERCUSYS

Model: ME12

Product Type: N300 Wireless Wi-Fi Range Extender

Colour: White

Wireless Standard: Wi-Fi 4 (IEEE 802.11b/g/n)

Wireless Speed: Up to 300Mbps

Wireless Frequency: 2.4GHz

Single-Band Wi-Fi Connectivity: Extends an existing 2.4GHz wireless network for improved internet coverage.

Extended Wi-Fi Coverage: Helps eliminate Wi-Fi dead zones and improves wireless signal coverage in areas with weak reception.

2 × External Antennas: Equipped with two external antennas for improved wireless reception and reliable signal transmission.

Stable Wireless Connection: Helps provide consistent wireless connectivity for everyday internet activities.

One-Touch WPS Setup: Quickly connects to a compatible wireless router using the WPS button.

Universal Router Compatibility: Works with most standard wireless routers and wireless access points.

Smart Signal Indicator: Multicolour LED indicator helps users find a suitable location for optimal Wi-Fi extension.

Green LED Indicator: Indicates a good wireless connection to the main router.

Orange LED Indicator: Indicates that the extender is positioned too far from the main router.

MERCUSYS App Management: Supports convenient setup and network management through the MERCUSYS mobile application.

Access Control: Helps manage which devices are allowed to connect to the network.

Quality of Service (QoS): Prioritises selected devices for improved network performance.

Guest Network Support: Provides a separate wireless network for visitors where supported.

New Device Access Alerts: Helps users identify unfamiliar devices connecting to the network through the MERCUSYS App.

Wireless Security: Supports WPA-PSK, WPA2-PSK and WPA3-PSK security protocols.

Wall-Plug Design: Compact design plugs directly into a power socket without requiring additional cables.

Easy Installation: User-friendly configuration through the WPS button or supported MERCUSYS management interface.

Reset/WPS Button: Convenient physical button for wireless pairing and device reset.

Maximum Transmission Power: ≤20dBm

Low Power Consumption: Maximum 3.2W

Product Dimensions: 101 × 74.8 × 36mm

Operating Temperature: 0°C to 40°C

Operating Humidity: 10%–90% RH, Non-Condensing

Certifications: CE and RoHS

Ideal For: Bedrooms, living rooms, home offices, online learning, web browsing, video streaming and extending wireless coverage in small-to-medium homes.

Package Includes:

• 1 × MERCUSYS ME12 N300 Wi-Fi Range Extender

• 1 × Quick Installation Guide

Important Note: This is a 2.4GHz-only Wi-Fi range extender and does not support 5GHz wireless networks.

Ethernet Connectivity: No Ethernet port is specified for the ME12.

Performance Note: Actual wireless speeds and coverage depend on the main router, network interference, obstacles, building materials and connected devices.
