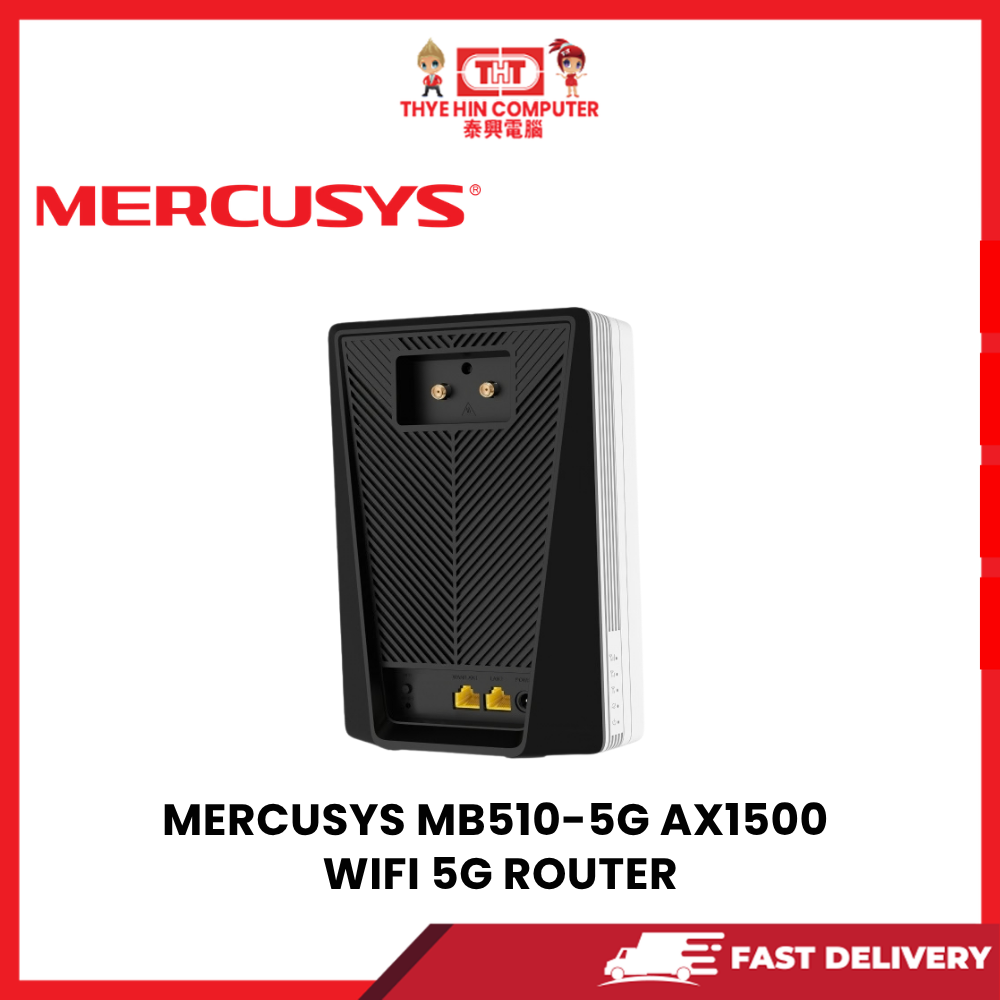

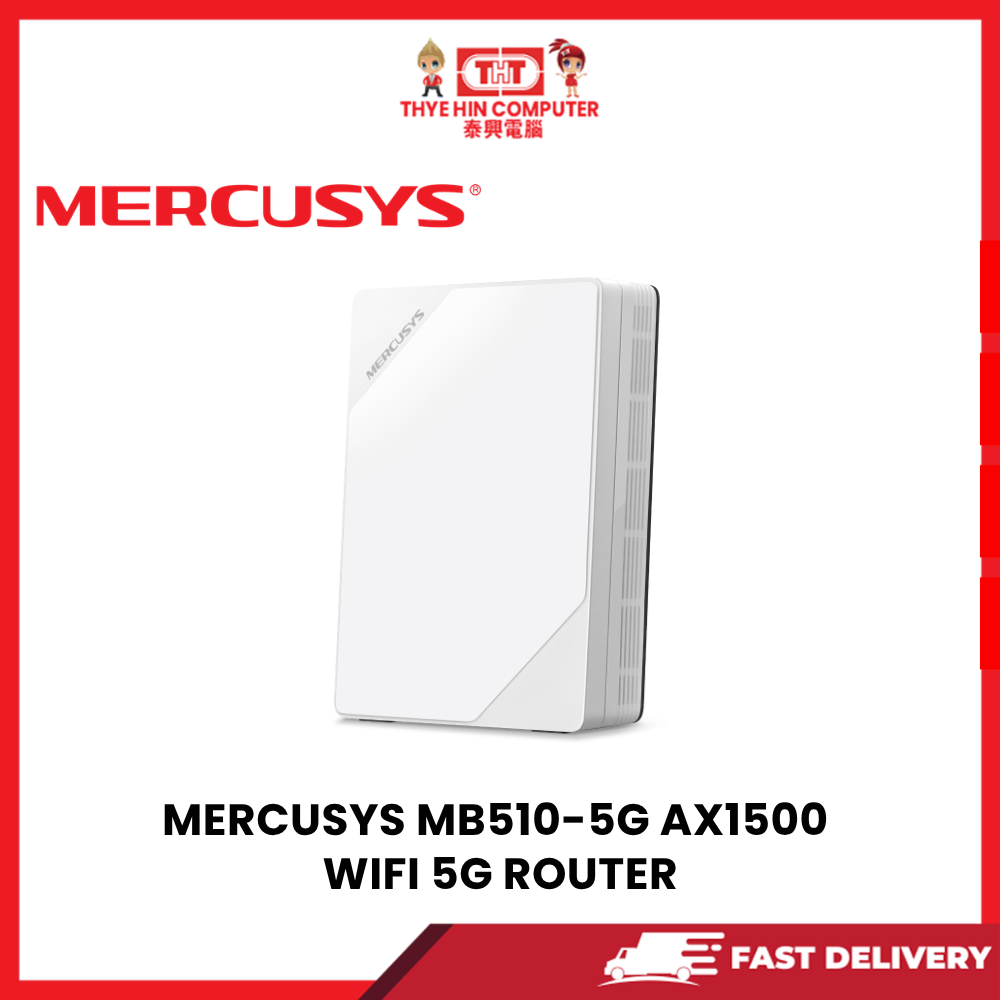

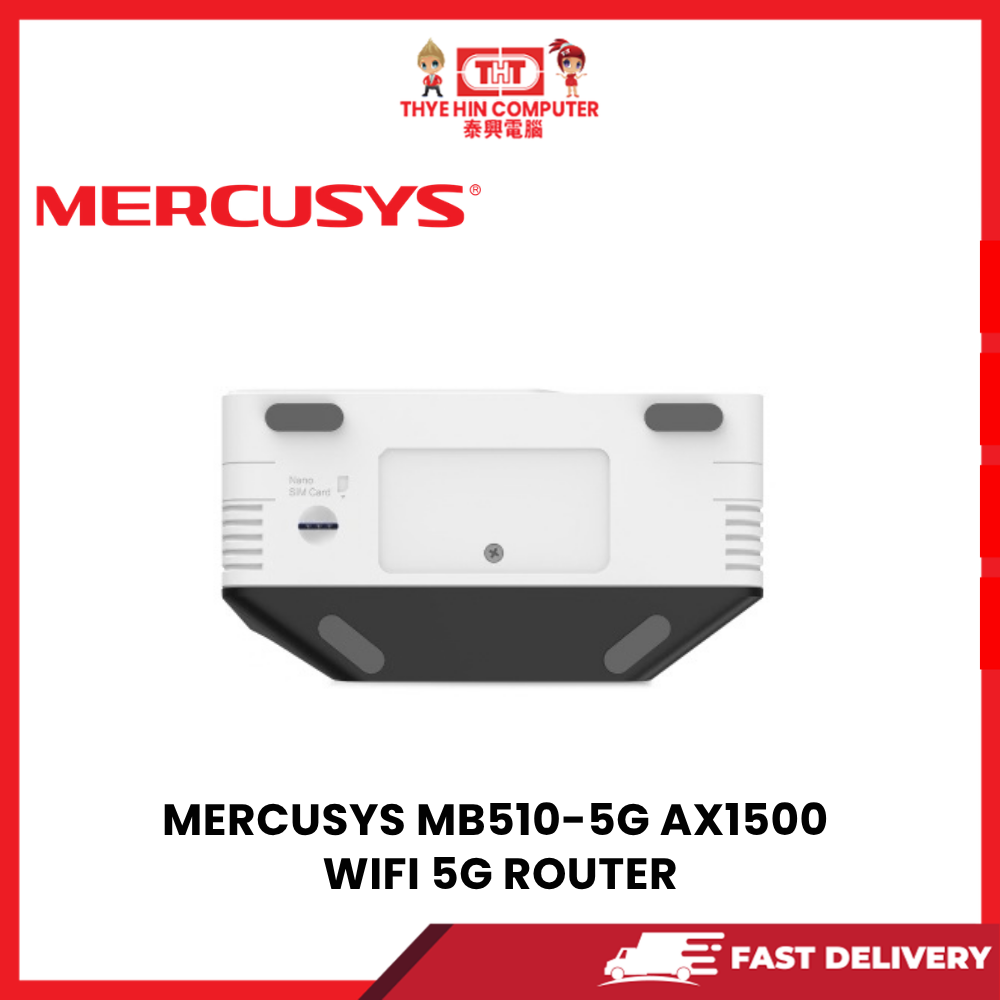

MERCUSYS AX1500 WIFI 5G ROUTER,BUILD-IN 2.6GBPS 5G MODEM

Product Specifications

• Cellular Standards:

• 5G: 2.9Gbps / 1.25Gbps DL/UL

• LTE: 600Mbps / 150Mbps DL/UL

• Cellular Bands:

• 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78

• LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66

• LTE-TDD: B38/B40/B41

• WCDMA: B1/B2/B5/B8

• SIM: 1× Nano SIM Card Slot

• Wi-Fi Class: AX1500
• Wi-Fi 2.4GHz: 300Mbps
• Wi-Fi 5GHz: 1201Mbps

• Wireless Standards: IEEE 802.11ax/ac/a/b/g/n

• Reception Sensitivity:

• 5GHz:

  • 11ax HE20: -64dBm

  • 11ax HE40: -61dBm

  • 11ax HE80: -59dBm

  • 11ax HE160: -56dBm

  • 11ac VHT20: -70dBm

  • 11ac VHT40: -67dBm

  • 11ac VHT80: -64dBm

• 2.4GHz:

  • 11g 54M: -74dBm

  • 11n HT20: -73dBm

  • 11n HT40: -70dBm

• Max Channel Width: 80MHz
• Max Capacity: 256
• Recommended Clients Limit: 128

• Wireless Security:

• WPA-PSK

• WPA2-PSK

• WPA3-SAE

• WPA2-Enterprise

• Wireless Functions:

• Smart Connect

• WPS

• Wireless Schedule

• Wireless Clients Statistics

• EasyMesh

• Multi-SSID

• Operation Modes:

• 5G/4G/3G Router

• Wireless Router

• Cellular Mode:

• 5G Preferred

• 5G Only

• 4G Preferred

• 4G Only

• 3G Only

• Cellular APN:

• Data Roaming

• Network Search

• Band Search

• Profile Create

• APN Settings

• ISP File Upgrade

• PIN Management

• WAN Mode:

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

• DHCP:

• Server

• DHCP Client List

• Address Reservation

• NAT Forwarding:

• ALG

• Virtual Server

• Port Triggering

• UPnP

• DMZ

• Protocols: IPv4, IPv6
• IPTV: Supported

• Guest Network:

• 2.4GHz Guest Network

• 5GHz Guest Network

• Data Settings:

• Data Statistics

• Data Limit

• Parental Controls:

• Time Control

• Website Filtering

• VPN Server:

• OpenVPN

• PPTP VPN

• IPSec VPN

• WireGuard VPN

• DDNS:

• DynDNS

• NO-IP

• VPN Client:

• OpenVPN

• PPTP VPN

• WireGuard VPN

• SMS:

• Inbox

• New Message

• Outbox

• Drafts

• QoS: Supported
• EasyMesh: Supported

• Security:

• IPv4 SPI Firewall

• Service Filtering

• Access Control

• IP & MAC Binding

• IPv6 Firewall

• Kill Switch: Supported
• ISP Feature: TR-069

• System:

• Time Settings

• LED Control

• Diagnostics

• Firmware Upgrade

• Backup & Restore

• Reboot Schedule

• Administration

• System Log

• Traffic Statistics

• Diagnostics:

• Internet Connection Test

• Ping

• Traceroute

• Nslookup

• LED Management:

• LED Control

• Night Mode

• Device Management:

• MERCUSYS App

• Web GUI

• Cloud:

• Firmware Upgrade over the Cloud

• Remote Management

• Languages:

• Czech

• Danish

• English

• Spanish

• French

• Italian

• Polish

• Romanian

• Russian

• Turkish

• Hungarian

• Indonesian

• Chinese – Taiwan

• Dimensions (W × D × H): 190 × 130 × 69.7mm

• 7.5 × 5.1 × 2.7 inches

• Interfaces:

• 1× GE LAN/WAN Port

• 1× GE LAN Port

• 2× 5G/4G External Antenna Ports

• 1× Nano SIM Card Slot

• Antenna: Internal

• Buttons:

• WPS

• Reset Button

• Installation: Desktop

• LED Indicators:

• 1× Power

• 1× Internet

• 3× Signal

• Retail Package Dimensions: 250 × 240 × 89mm
• Units per Carton: 12
• Carton Dimensions: 540 × 510 × 250mm
• Power Consumption: 12V/2A

• Certifications:

• CE

• BSMI

• NCC

• Network Services Enabled by Default:

• Web Server

  • Manage and configure device through web (HTTP/HTTPS)

  • Port: 80/443

  • Protocol: TCP

• DHCP Server

  • IP Address Assignment (DHCP)

  • Port: 67

  • Protocol: UDP

• DNS

  • Port: 53

  • Protocol: TCP/UDP

• App Management

  • Manage and configure device through app

  • Port: 22

  • Protocol: TCP

  • Port: 20002

  • Protocol: TCP/UDP

• UPnP

  • Plug and Play

  • Port: 1900

  • Protocol: TCP/UDP

• Package Contents:

• 5G AX1500 Wireless Dual Band Router (MB510-5G)

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

• Environment:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

• Operating Humidity: 10% ~ 90% Non-Condensing

• Storage Humidity: 5% ~ 90% Non-Condensing
