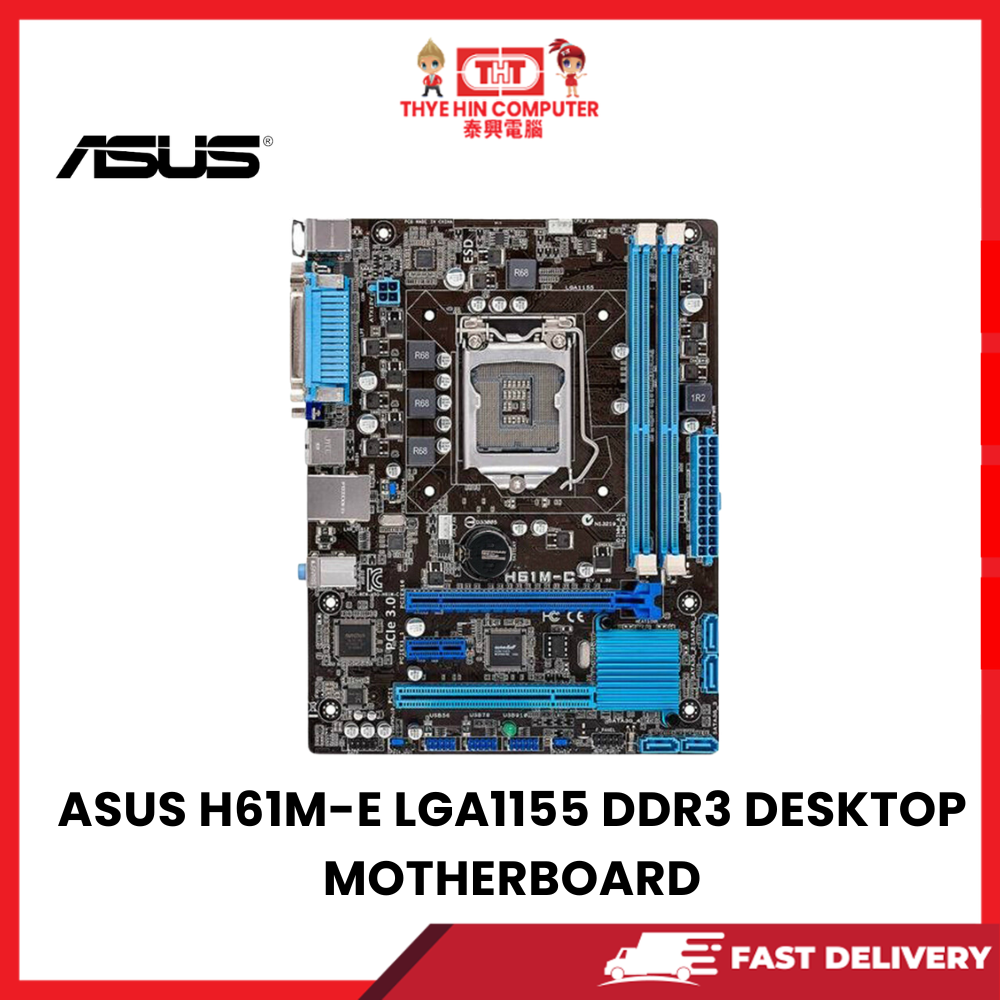

ASUS H61M-E LGA1155 DDR3 DESKTOP MOTHERBOARD

• Micro-ATX desktop motherboard designed for Intel® 2nd and 3rd Generation Core™ processors.
• Supports LGA1155 socket compatible with Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors.
• Powered by the Intel H61 Express Chipset for reliable everyday computing performance.
• Supports up to 16GB DDR3 memory with dual-channel architecture for improved system responsiveness.
• Features 2 × DDR3 DIMM slots supporting memory speeds up to 2200MHz (OC).
• Equipped with PCI Express x16 slot for dedicated graphics card installation.
• Includes PCI Express x1 slot for additional expansion cards and peripherals.
• Provides multiple storage options with 4 × SATA 3Gb/s ports for hard drives and SSDs.
• Supports integrated graphics output through VGA and DVI-D ports for display connectivity.
• Features USB 2.0 connectivity for keyboards, mice, printers, and other USB devices.
• ASUS UEFI BIOS offers a user-friendly interface for system configuration and management.
• Built with ASUS Anti-Surge Protection to help protect components from power fluctuations.
• Supports ASUS AI Suite II for easy system monitoring and performance optimization.
• Compact Micro-ATX form factor suitable for home, office, and entry-level gaming systems.
• Ideal for upgrading or building systems based on Intel LGA1155 processors.

Specifications:

• Model: H61M-E
• Brand: ASUS
• Socket: LGA1155
• Chipset: Intel H61 Express
• Form Factor: Micro-ATX
• Memory Type: DDR3
• Memory Slots: 2 × DIMM
• Maximum Memory: 16GB
• Memory Speed: DDR3 1066 / 1333 / 1600 / 1866 / 2200MHz (OC)
• Expansion Slots:
  • 1 × PCI Express 3.0/2.0 x16
  • 1 × PCI Express x1
• Storage Ports:
  • 4 × SATA 3Gb/s
• Display Outputs:
  • 1 × VGA
  • 1 × DVI-D
• USB Ports:
  • USB 2.0
• LAN: Gigabit Ethernet
• Audio: 8-Channel HD Audio
• Operating System Support: Windows 7 / Windows 8 (varies by driver support)
• Dimensions: 22.6 × 17.4 cm
• Colour: Brown PCB with Blue Heatsink

Suitable For:

• Intel 2nd Gen (Sandy Bridge) CPUs
• Intel 3rd Gen (Ivy Bridge) CPUs
• Office PCs
• Home Computers
• Educational Systems
• Budget Desktop Upgrades
