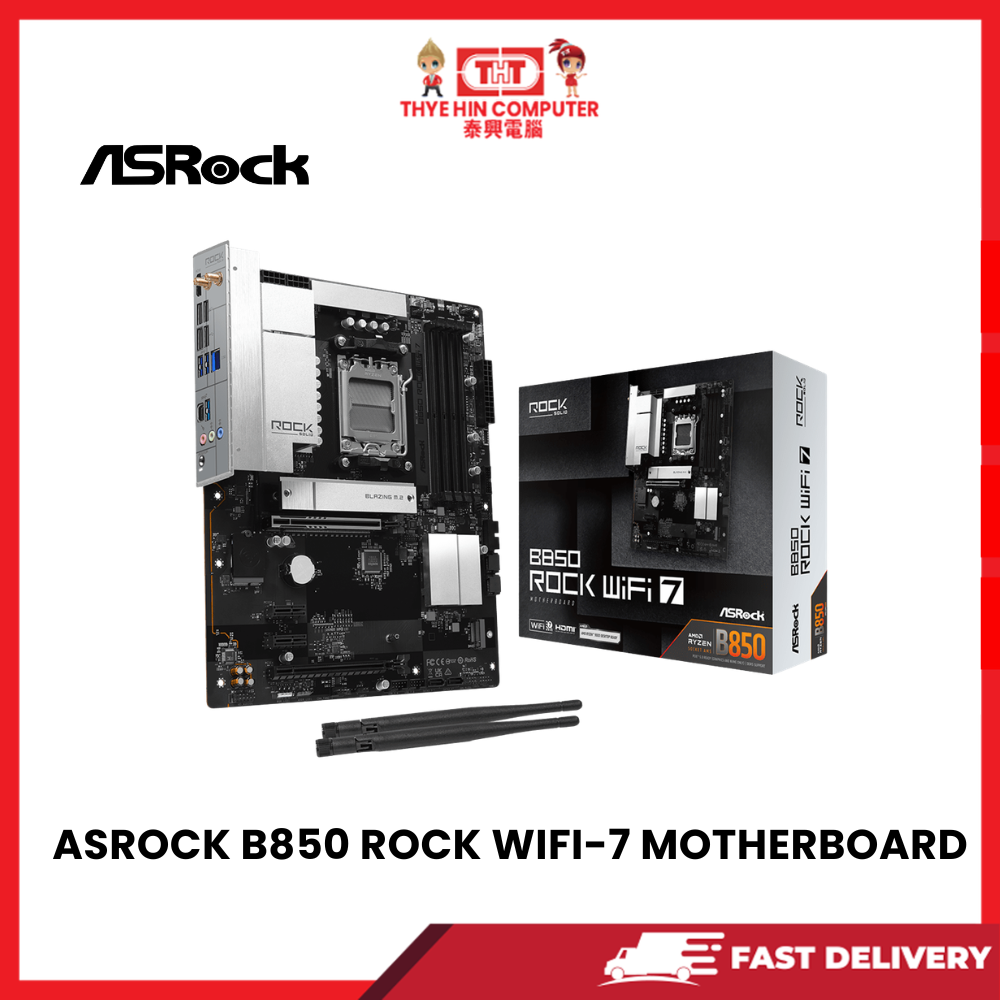

ASROCK B850 ROCK WIFI-7 MOTHERBOARD

Key Features

• Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series processors
• AMD B850 chipset with ATX form factor
• 9+2+1 Dr.MOS power phase design for stable power delivery
• 4× DDR5 DIMM slots, supporting up to 256GB memory
• Memory overclocking support up to DDR5-8000+ (OC) with AMD EXPO™ and Intel XMP profiles
• 1× PCIe 5.0 x16 slot for next-generation graphics cards
• 1× PCIe 5.0 M.2 and 1× PCIe 4.0 M.2 SSD slots
• Wi-Fi 7 (802.11be) with Bluetooth 5.4
• 2.5 Gigabit LAN for high-speed wired networking
• BIOS Flashback for CPU-less BIOS updates
• Pre-installed I/O shield for easier installation
• ASRock Auto Driver Installer (ADI) for one-click driver installation

Specifications

• Brand: ASRock
• Model: B850 Rock WiFi 7
• Chipset: AMD B850
• CPU Socket: AM5
• Form Factor: ATX
• Memory: 4× DDR5 DIMM, Dual Channel, up to 256GB, DDR5-8000+ (OC)
• Expansion Slots:
  • 1× PCIe 5.0 x16
  • 1× PCIe 4.0 x16 (x4 mode)
  • 2× PCIe 4.0 x1
• Storage:
  • 1× Blazing M.2 PCIe 5.0 x4
  • 1× Hyper M.2 PCIe 4.0 x4
  • 4× SATA III (6Gb/s)
• Networking:
  • Dragon RTL8125BG 2.5GbE LAN
  • Wi-Fi 7 (802.11be) 2×2
  • Bluetooth 5.4
• Audio: Realtek ALC897 7.1 HD Audio
• Display Output: 1× HDMI 2.1 (up to 4K 120Hz with supported Ryzen APUs)
• Rear USB:
  • 1× USB 3.2 Gen2 Type-C
  • 1× USB 3.2 Gen2 Type-A
  • 2× USB 3.2 Gen1
  • 4× USB 2.0
• Front USB Headers:
  • 1× USB 3.2 Gen1 Type-C
  • 4× USB 3.2 Gen1
  • 4× USB 2.0
• Operating System: Windows 11 (Wi-Fi 7 support)
