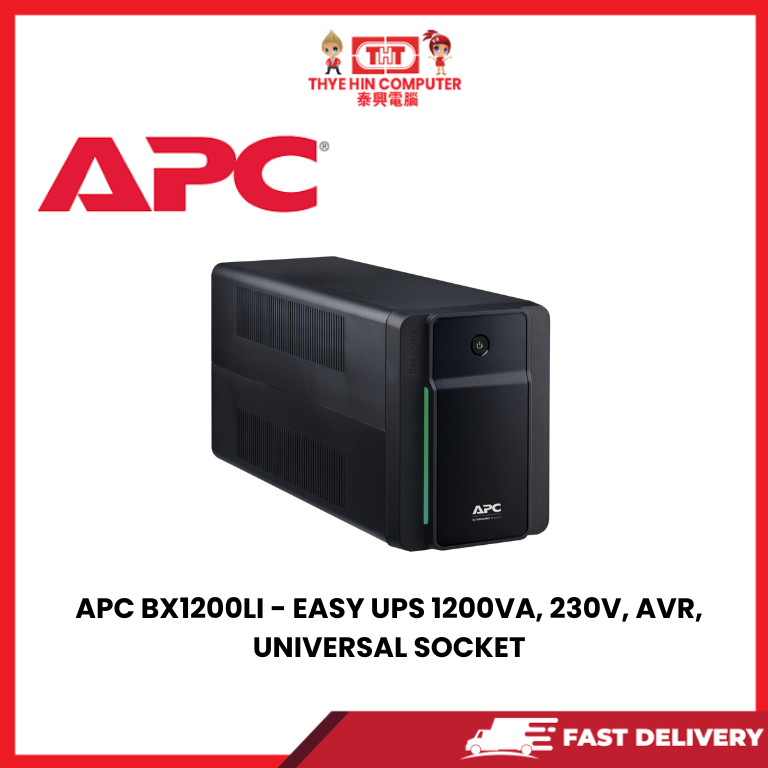

APC BX1200LI – EASY UPS 1200VA, 230V, AVR, UNIVERSAL SOCKET

Specifications
Lead time : Usually in Stock
Main : Run time for load 650W 1min 34s
Min-max: 65-650 W
Max. Capacity Used : 100 %
Main Input Voltage : 230 V AC 1 phase
Main Output Voltage : 230 V AC 1 phase
Rated power in W : 650 W
Rated power in VA : 1200 VA
Input Connection Type : IEC 60320 C14
output connection type : 4 universal
1 IEC 60320 C13
Cable length : 1.22 m
Number of cables : 1
Battery type : Lead-acid battery

Batteries & Runtime

Number of battery filled slots : 0
Number of battery free slots : 0
Battery recharge time : 8 h
Battery voltage : 12 V
Battery capacity : 9.0 Ah
Battery life : 2…3 year(s)

General
Max runtime : 120 min
Number of power module free slots : 0
Number of power module filled slots : 0
Redundant : No
UPS size : WS

Physical
Colour : Black
height : 19 cm
Width : 14 cm
Depth :39 cm
Net weight : 7.5 kg
mounting support : Floor
Mounting preference : No preference
Mounting mode : Not rack-mountable
Two post mountable : 0
USB compatible : No

Input
Network frequency : 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits : 140…300 V 230 V AC
Cos phi : 0.51

Output
Maximum configurable power in W : 650 W
Output frequency : 50/60 Hz +/- 1 Hz sync to mains
UPS type : Line interactive
Wave type : Stepped approximation to a sinewave
Full load runtime : 00:01:00 650 W
Graph display : 1
Half load runtime : 00:05:00 300 W
Maximum configurable power in VA : 1200 VA
Transfer time : 6 ms typical : 10 ms maximum

Surge Protection and FilteringSurge energy rate : 273 J

Package 1 Height : 29.7 cm
Package 1 Width : 49.5 cm
Package 1 Length : 23.5 cm
Package 1 Weight : 8.5 kg
