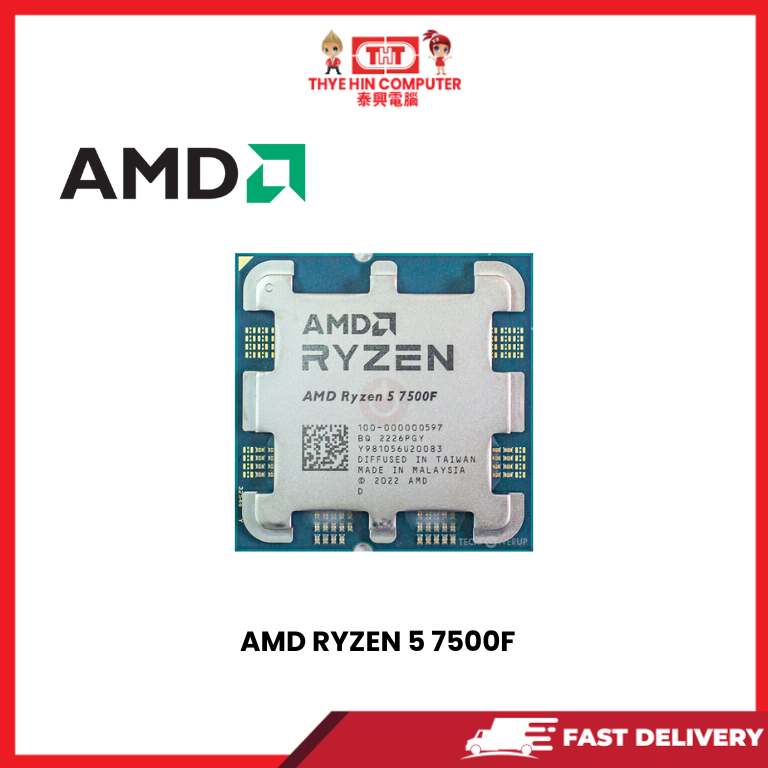

AMD RYZEN 5 7500F PROCESSOR

Name: AMD RYZEN 5 7500F PROCESSOR | Thye Hin Computer
SKU: C8300
Price: 750.00 MYR
Availability: InStock

RM750.00

Store Availability

Only 2 left in stock

SKU: C8300 Categories: AMD, Computer Parts, Processor (CPU)

Specification

Name: AMD Ryzen™ 5 7500F
Family: Ryzen
Series: Ryzen 7000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Consumer Use: Yes
Regional Availability: Global
Former Codename: Raphael AM5
Architecture: Zen 4
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 5 GHz
Base Clock: 3.7 GHz
L1 Cache: 384 KB
L2 Cache: 6 MB
L3 Cache: 32 MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 5nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
CPU Compute Die (CCD) Size: 71mm²
I/O Die (IOD) Size: 122mm²
Package Die Count: 2
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB): AMD Wraith Stealth
Thermal Solution (MPK): AMD Wraith Stealth
Max. Operating Temperature (Tjmax): 95°C
Launch Date: 07/22/2023
OS Support:
- Windows 11 – 64-Bit Edition
- Windows 10 – 64-Bit Edition
- RHEL x86 64-Bit
- Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps): 4
Native USB 3.2 Gen 1 (5Gbps): 0
Native USB 2.0 (480Mbps): 1
Native SATA Ports: 0
PCI Express® Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28 / 24
Additional Usable PCIe Lanes from Motherboard:
- X670E: 12x Gen4
- X670: 12x Gen4
- B650E: 8x Gen4
- B650: 8x Gen4
- A620: 4x Gen3
NVMe Support: Boot, RAID0, RAID1, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 128 GB
System Memory Subtype: UDIMM
Max Memory Speed:
- 2x1R: DDR5-5200
- 2x2R: DDR5-5200
- 4x1R: DDR5-3600
- 4x2R: DDR5-3600
ECC Support: Yes (Requires mobo support)
