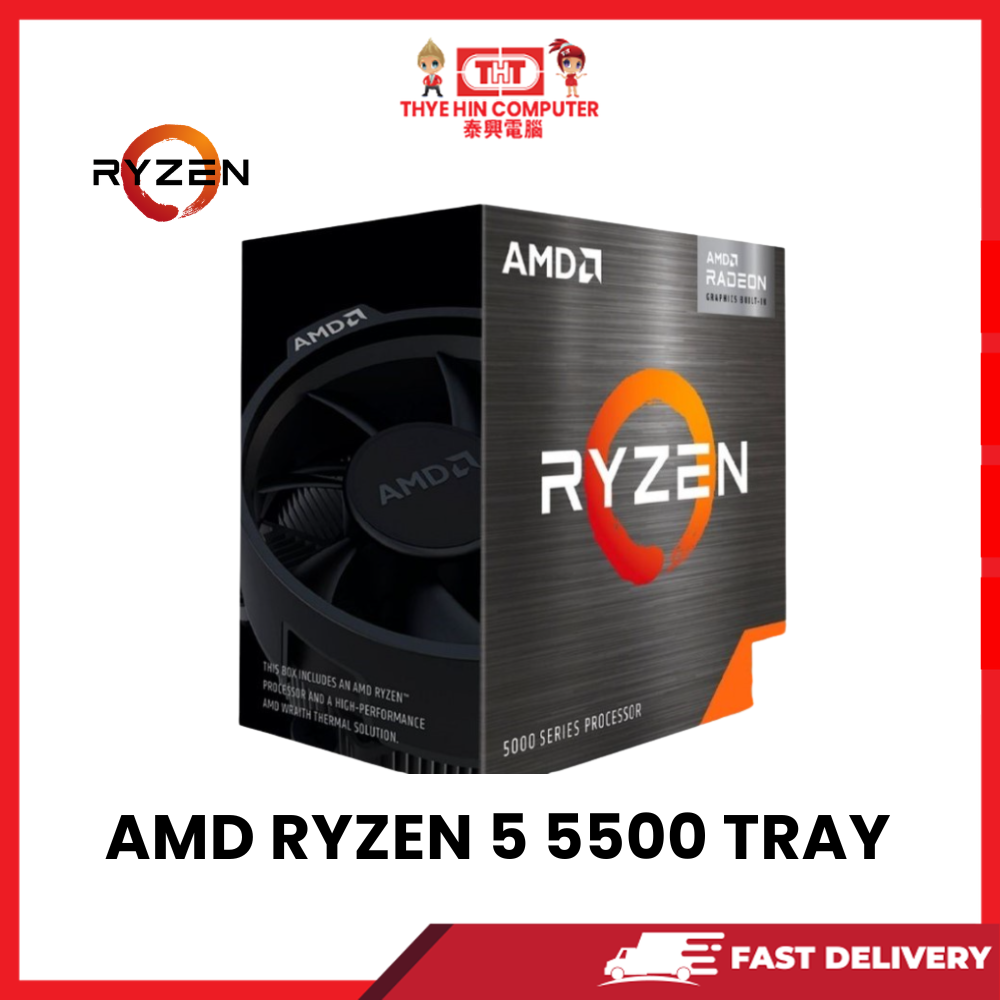

AMD RYZEN 5 5500 TRAY PROCESSOR

• 6 Cores & 12 Threads powered by AMD Zen 3 architecture for smooth gaming and multitasking.
• Base Clock: 3.6 GHz.
• Max Boost Clock: Up to 4.2 GHz.
• 16MB L3 Cache and 3MB L2 Cache for improved application responsiveness.
• Socket AM4 compatible with AMD A520, B450, B550, X470, and X570 motherboards (BIOS update may be required on some boards).
• 65W TDP delivers efficient performance with low power consumption.
• Unlocked processor supports overclocking on compatible motherboards.
• PCIe 3.0 support for graphics cards and NVMe SSDs.
• Supports DDR4 memory up to 3200 MT/s in dual-channel configuration, with a maximum capacity of 128GB.
• No integrated graphics – requires a dedicated graphics card for display output.
• Supports AMD Precision Boost 2, AMD StoreMI, and Ryzen VR-Ready Premium technologies.
• Built using TSMC 7nm FinFET process technology for efficient performance.

Specifications

• Model: AMD Ryzen 5 5500 (Tray)
• Architecture: Zen 3
• Cores / Threads: 6 / 12
• Base Clock: 3.6 GHz
• Max Boost Clock: Up to 4.2 GHz
• L2 Cache: 3MB
• L3 Cache: 16MB
• Socket: AM4
• TDP: 65W
• Memory Support: DDR4-3200, Dual Channel, Up to 128GB
• PCIe Version: PCIe 3.0
• Maximum Operating Temperature (Tjmax): 90°C
• Integrated Graphics: None (Dedicated GPU required)
• Tray Version: CPU only; cooler is not included.
