TOTOLINK SG24 GIGABIT MULTI FUNCTION SWITCH [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM359.00

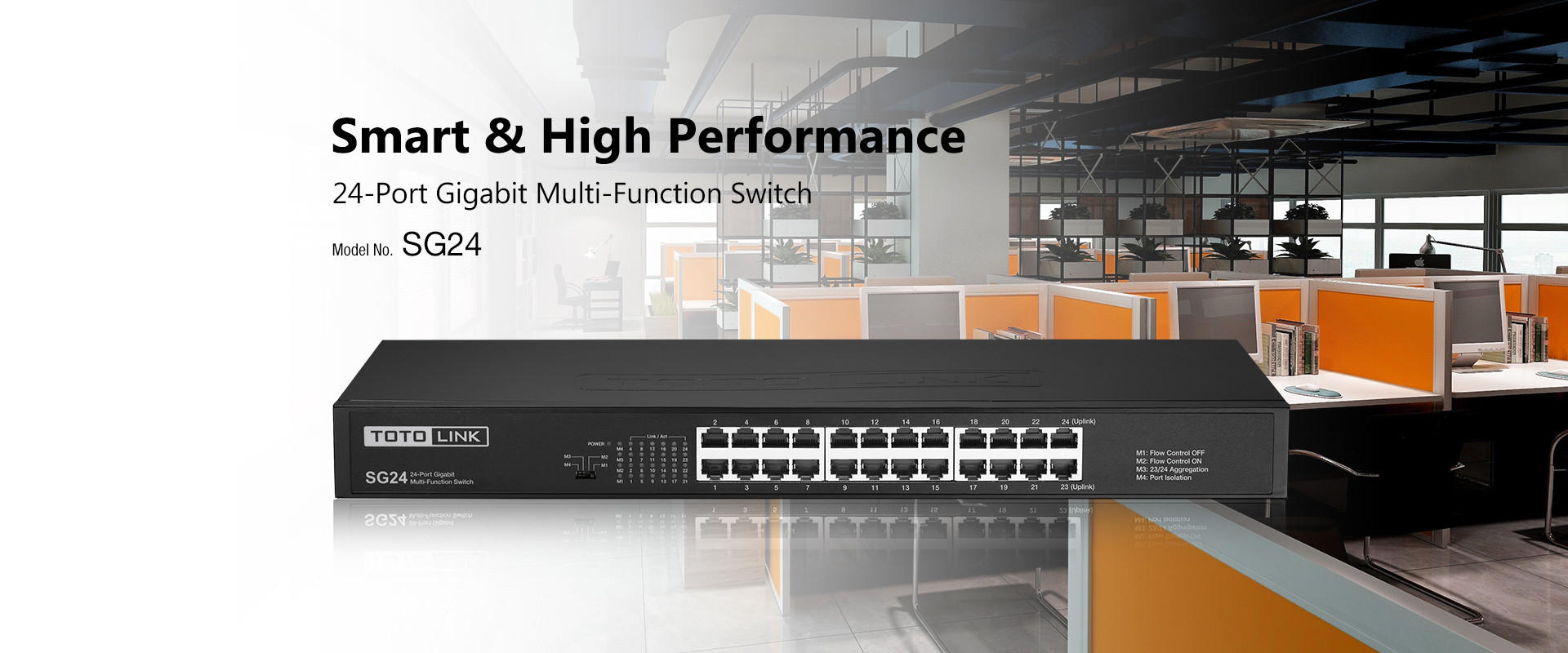

SG24 is a 24-port unmanaged switch.
It is a smart high performance gigabit switch that provides an ideal solution for workgroup or department Gigabit applications.
With 24 10/100/1000BASE-T (AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mbps in full duplex mode.
Also it supports easy-to-view LED indicators for cable installation and normal operational diagnostics. It can be installed on desktop or in rack-mount.
Features
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
- 24 10/100/1000Mbps auto-negotiation ports.
- Supports flow control for each port.
- Supports store and forward switching scheme capability.
- Supports NWay auto-negotiation for all ports.
- Supports auto MDI/MDIX for each port.
- Supports per-port bandwidth control.
- Supports PHY register read/write access.
Out of stock

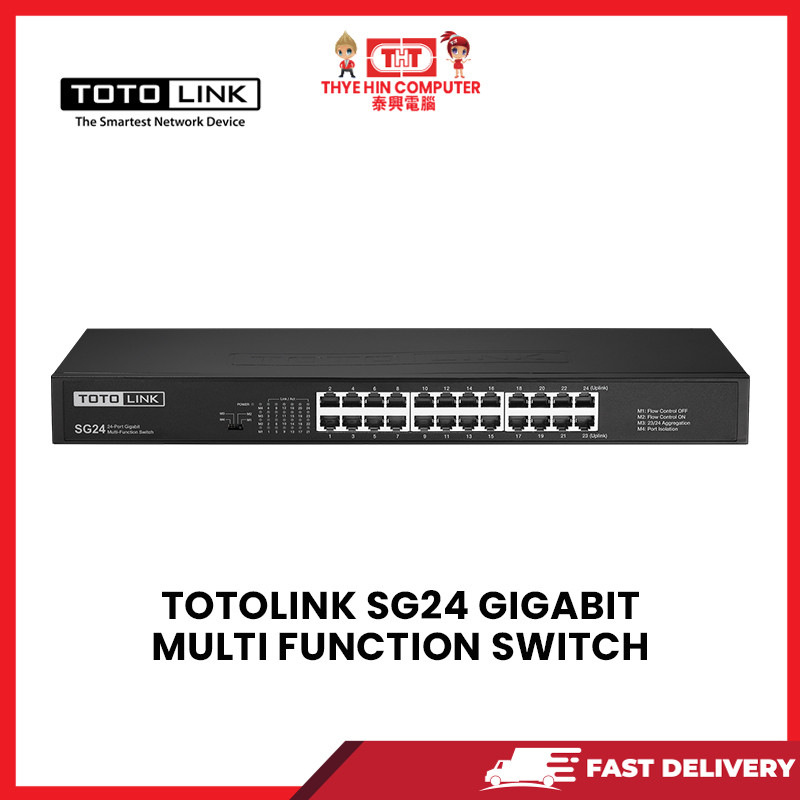

TOTOLINK SG24 GIGABIT MULTI FUNCTION SWITCH
|
General |
|
|
Standards |
– IEEE 802.3, – IEEE 802.3u, – IEEE 802.3ab, – IEEE 802.3x |
|
Interface |
– 24*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
|
Power Supply |
– AC 100V~240V, 50/60Hz |
|
LED Indicators |
– 1*Power, Link/Act (1~24), M1~M4 |
|
Dimensions(L x W x H) |
– 17.3 x 7.1 x 1.7in. (440 x 180 x 44mm) |
|
MAC Address Learning |
– Auto-learning, auto update |
|
MAC Address Table |
– 8K |
|
Switching Capacity |
– 48Gbps |
|
Network Media |
– 10BASE-T: UTP Cat 3, 4, 5 cable – 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable |

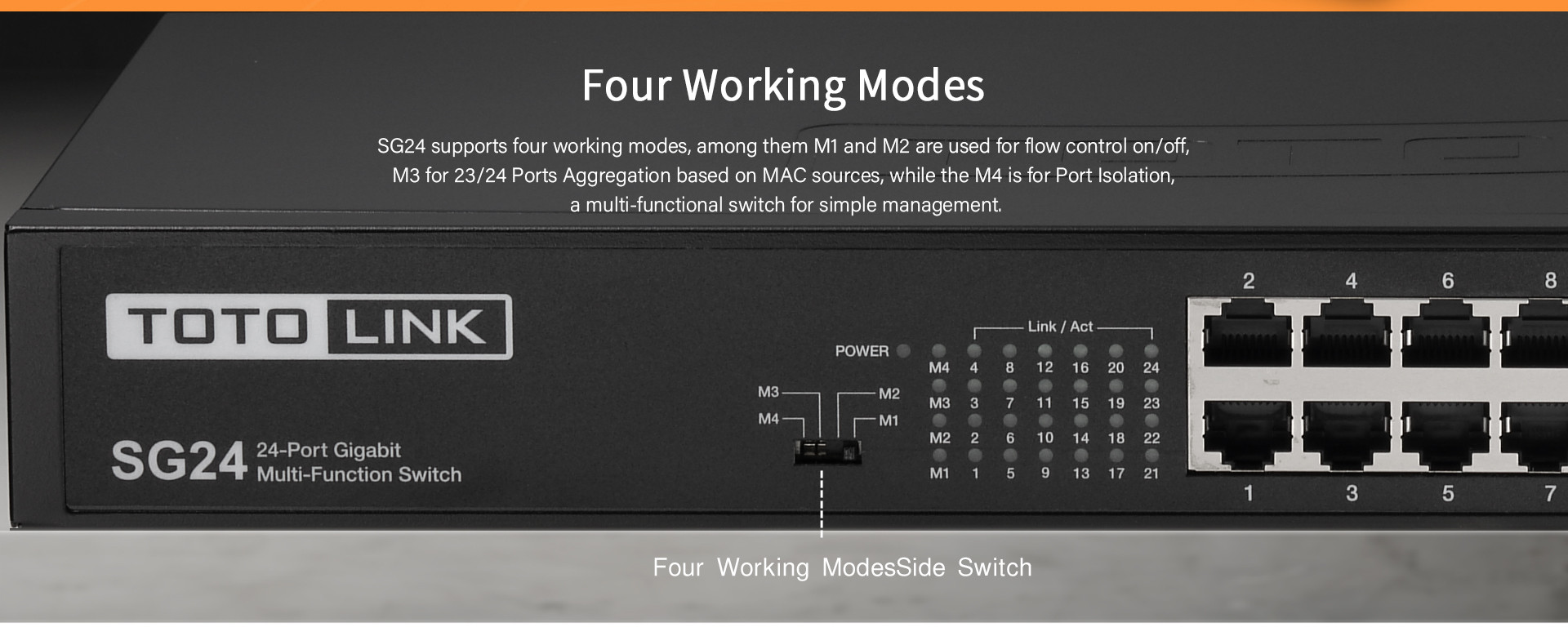

| Four Working Modes |
– M1: Flow Control OFF – M2: Flow Control ON – M3: 23/24 Ports Aggregation based on MAC sources – M4: 1-22 Port Isolation, 23~24 Port Uplink. |
|
Frame Filtering |
– 10Mbps: 14,880pps – 100Mbps: 148,800pps – 1000Mbps: 1,488,000pps |
|
Transfer Method |
– Store-and-Forward |
|
Others |
|||||
|
Package Contents |
– SG24 Gigabit Switch – Quick Installation Guide – Power Cord – Brackets – Rubber Feet – Screws |
||||
|
Environment |
– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 5%~95% non-condensing – Storage Humidity: 5%~95% non-condensing |
||||
| Weight | 0.2 kg |
|---|---|
| Dimensions | 44 × 18 × 4.4 cm |
