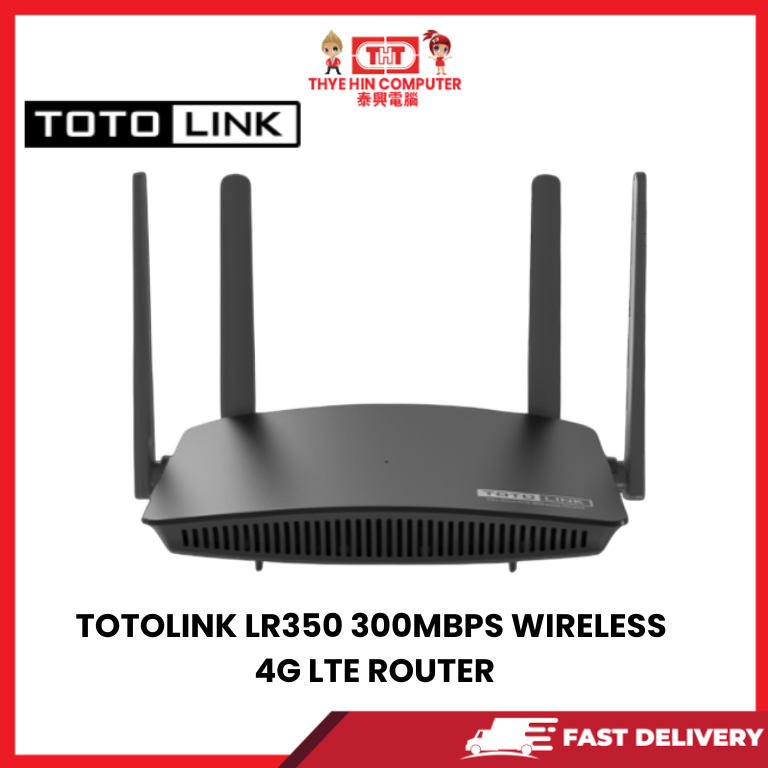

TOTOLINK LR350 300MBPS WIRELESS 4G LTE ROUTER [SBN:YES NILAI:YES MELAKA:YES HPS:NO]

• Model No.: LR350

• Model Name: 300Mbps Wireless 4G LTE Router



---

 Interface

• 1x 10/100M WAN Port

• 2x 10/100M LAN Ports

• 1x Standard SIM card slot

---

Power

• Power Supply: 9 VDC / 0.8 A

• Button: WPS/Reset x1

---

LED Indicator

• 1x SYS LED (Red/Green/Orange)

---

 Antennas

• 2x Fixed antennas (2.4GHz Wi-Fi)

• 2x Fixed antennas (4G LTE)

 Dimensions (without antennas)

• 143 x 95 x 37.25 mm

---

Wireless Standards & Performance

• Standards: IEEE 802.11b/g/n

• RF Frequency: 2.4GHz

• Data Rate: Up to 300Mbps

• EIRP: < 20dBm

---

Wireless Security

• WPA2/WPA Mixed

• Wireless Features: Multiple SSIDs, MAC Authentication, WPS

---

 Reception Sensitivity (2.4GHz)

• 11b 11M: -81dBm @ 8% PER

• 11g 54M: -68dBm @ 10% PER

• 11n HT20 MCS7: -65dBm @ 10% PER

• 11n HT40 MCS7: -62dBm @ 10% PER

---

Supported Network Bands

Option 1:

• FDD LTE: B1 / B3 / B7 / B8 / B20 / B28

• TDD LTE: B38 / B40 / B41

• WCDMA: B1 / B8

• GSM: 900 / 1800 MHz

Option 2:

• FDD LTE: B1 / B2 / B3 / B4 / B7 / B8 / B28 / B66

• TDD LTE: B40

• WCDMA: B1 / B2 / B4 / B5 / B8

• GSM: 850 / 900 / 1800 / 1900 MHz

Option 3:

• FDD LTE: B1 / B3 / B8

• TDD LTE: B34 / B38 / B39 / B40 / B41

• WCDMA: B1 / B5 / B8

• GSM: 900 / 1800 MHz

---

WAN & Network Functions

• WAN Types: Static IP, DHCP, PPPoE, 4G

• Firewall: MAC Filtering, IP/Port Filtering, URL Filtering, DMZ

• Management: Password, Time Setup, Firmware Update, System Config, System Log

---

 Device Capacity

• Supports up to 32 users

---

Package Contents

• LR350 Wireless Router x1

• Power Adapter x1

• USB to DC power cable x1

• SIM Adapters (Nano, Micro)

• Quick Installation Guide x1

---

Environmental Conditions

• Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)

• Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)

• Operating Humidity: 10% ~ 90% (non-condensing)

• Storage Humidity: 5% ~ 90% (non-condensing)
