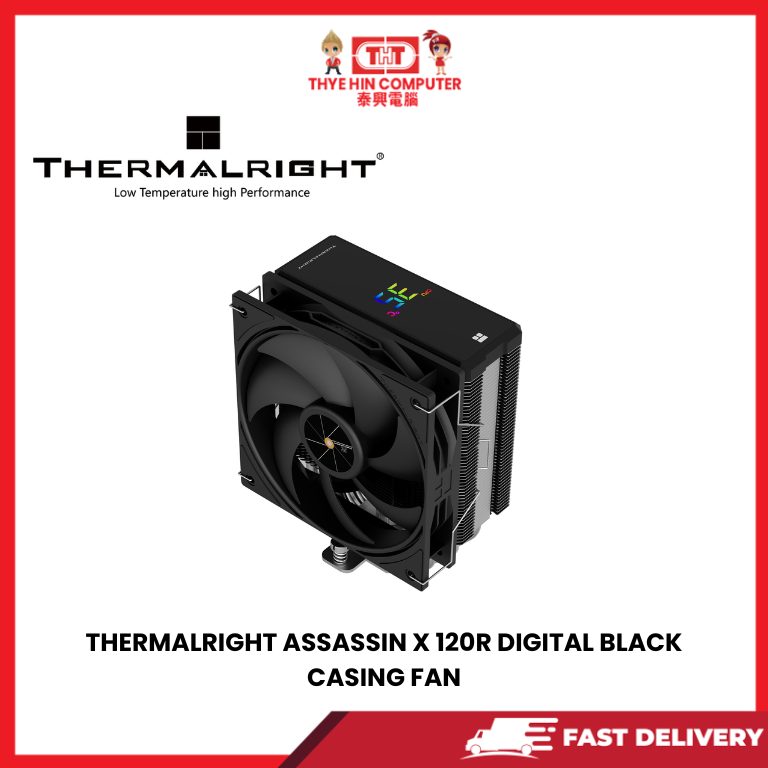

Heatsink Specifications:
- Dimensions: 120mm (L) x 46mm (W) x 151mm (H).
- Heat Pipes: Equipped with four 6mm heat pipes utilizing AGHP (Advanced Gravity Heat Pipe) technology, which addresses the inverse gravity effect in both vertical and horizontal orientations.
Fan Specifications (TL-P12):
- Dimensions: 120mm x 120mm x 25mm.
- Rated Speed: Up to 2000 RPM ±10%.
- Noise Level: 29.8 dBA.
- Air Flow: 70.84 CFM (maximum).
- Air Pressure: 2.63 mm H₂O (maximum).
- Connector: 4-pin PWM fan connector.
- Bearing Type: S-FDB (Fluid Dynamic Bearing).
Compatibility:
- Intel Sockets: LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851.
- AMD Sockets: AM4, AM5.
Additional Features:
- Digital Display: The top cover features an LCD panel capable of displaying real-time metrics such as CPU temperature, CPU usage, GPU temperature, and GPU usage. This functionality is managed through Thermalright's TRCC software.
