JCD373 USB-C MULTI-PORT WITH POWER DELIVERY [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM169.00

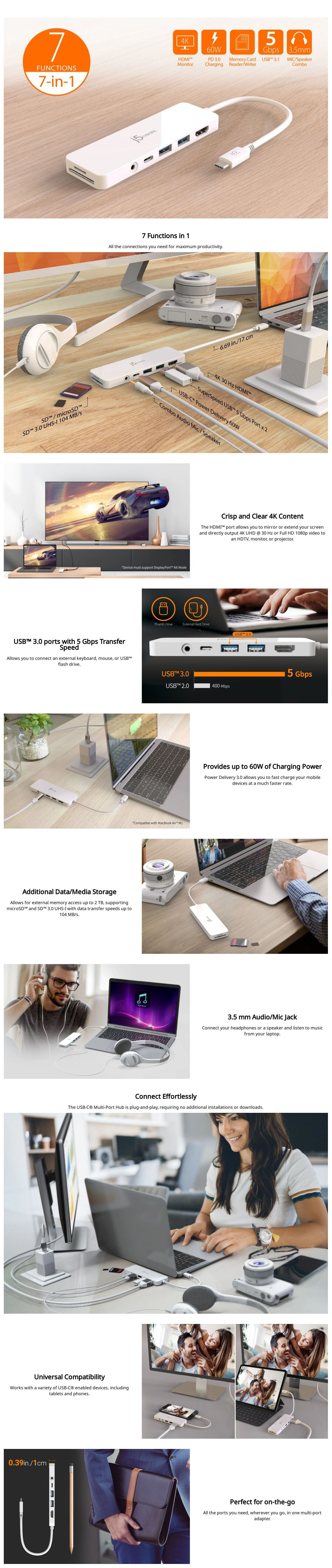

Our USB-C® Multi-Port Hub with Power Delivery provides extra connectivity for your computer. This pocket-sized multi-adapter with 2 USB™ 3.1 Type-A ports allows you to connect an external keyboard, mouse, or USB™ flash drive. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. The HDMI™ port allows you to mirror or extend your screen and directly output 4K UHD @ 30 Hz or Full HD 1080p video to an HDTV, monitor, or projector.
Equipped with a USB-C® Power Delivery 3.0 charging port. It offers charging up to 60W when connected to a USB-C® power adapter. The hub also provides direct access to your SD™ & microSD™ memory cards. The audio/mic combo jack allows you to connect your headphone set or speakers.
Features
Out of stock
JCD373 USB-C MULTI-PORT WITH POWER DELIVERY
System Requirements:
Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device
Special Notes:
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If you are using high-powered USB™ devices, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop
• To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
Hardware
Host Connector 1 – USB-C® 3.1 male
Video Output 1 – HDMI™ Female
Power Source Bus-powered or self-powered
Audio Supported Yes
Ports
2 – USB™ Type-A 3.1 Gen 1
1 – USB-C® for PD 3.0 charging
1 – microSD™ & SD™ card reader/writer
1 – HDMI™
1 – 3.5 mm audio/mic combo jack
Performance
Maximum Display Resolution 3840 x 2160
Maximum Display Refresh Rate 30 Hz
Maximum Data Transfer Rate 5 Gbps
Displays Supported 1
Audio Channel 3.5 mm audio/mic combo jack
Power
Power Delivery Up to 60W via USB-C®
Power Consumption 400 mA
Input Current Up to 3A
Input Voltage Up to 20V
Output Current Up to 3A
Output Voltage Up to 20V
Physical Specifications
Color White
Enclosure Type ABS Plastic
Cable Length 5.9 in. (150 mm)
Product Height 4.8 in. (122 mm)
Product Width 1.53 in. (39 mm)
Product Depth 0.43 in. (11 mm)
Product Weight 1.8 oz (51g)
Storage Temperature 0 to 155°F (-17 to 68°C)
Storage Humidity < 85% non-condensing
Operating Temperature 30 to 116°F (-1 to 41°C)
Operating Humidity < 85% non-condensing
Package Contents
• 1 – JCD373 USB-C® Multi-Port Hub with Power Delivery
• 1 – Quick Installation Guide
System Requirements:
Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device
Special Notes:
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If you are using high-powered USB™ devices, attach the USB-C® power adapter to the power delivery port to ensure maximum performance. When using your USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop
• To ensure files copy completely, do not remove the USB-C® power adapter while copying files. For maximum performance, use a computer and USB-C® power adapter equipped with PD 3.0
Hardware
Host Connector 1 – USB-C® 3.1 male
Video Output 1 – HDMI™ Female
Power Source Bus-powered or self-powered
Audio Supported Yes
Ports
2 – USB™ Type-A 3.1 Gen 1
1 – USB-C® for PD 3.0 charging
1 – microSD™ & SD™ card reader/writer
1 – HDMI™
1 – 3.5 mm audio/mic combo jack
Performance
Maximum Display Resolution 3840 x 2160
Maximum Display Refresh Rate 30 Hz
Maximum Data Transfer Rate 5 Gbps
Displays Supported 1
Audio Channel 3.5 mm audio/mic combo jack
Power
Power Delivery Up to 60W via USB-C®
Power Consumption 400 mA
Input Current Up to 3A
Input Voltage Up to 20V
Output Current Up to 3A
Output Voltage Up to 20V
Physical Specifications
Color White
Enclosure Type ABS Plastic
Cable Length 5.9 in. (150 mm)
Product Height 4.8 in. (122 mm)
Product Width 1.53 in. (39 mm)
Product Depth 0.43 in. (11 mm)
Product Weight 1.8 oz (51g)
Storage Temperature 0 to 155°F (-17 to 68°C)
Storage Humidity < 85% non-condensing
Operating Temperature 30 to 116°F (-1 to 41°C)
Operating Humidity < 85% non-condensing
Package Contents
• 1 – JCD373 USB-C® Multi-Port Hub with Power Delivery
• 1 – Quick Installation Guide
| Weight | 0.05 kg |
|---|---|
| Dimensions | 12.2 × 3.9 × 1.1 cm |
