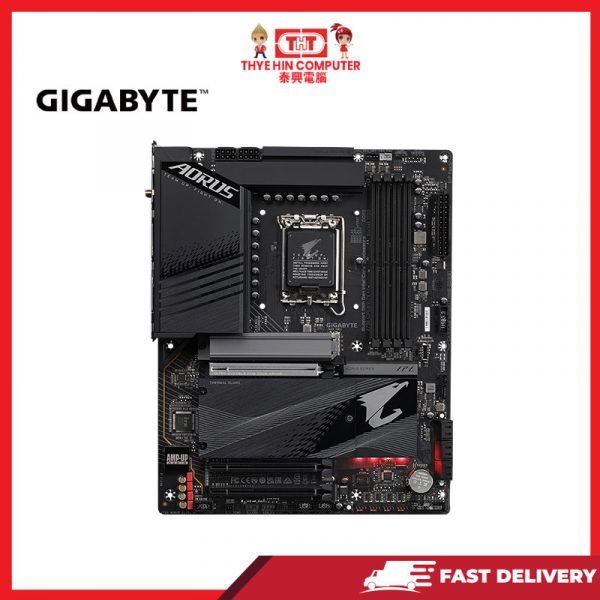

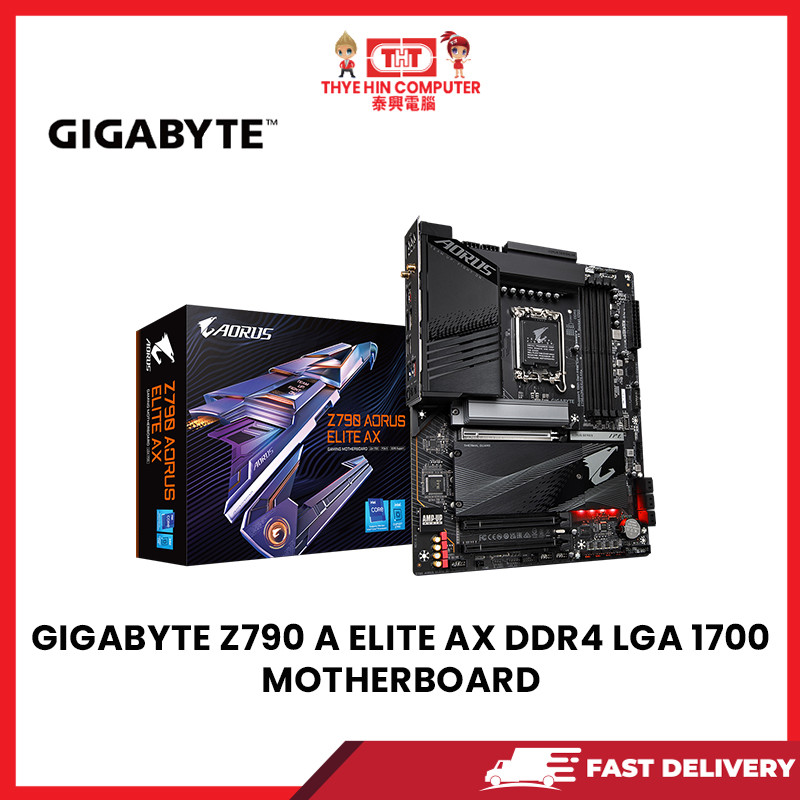

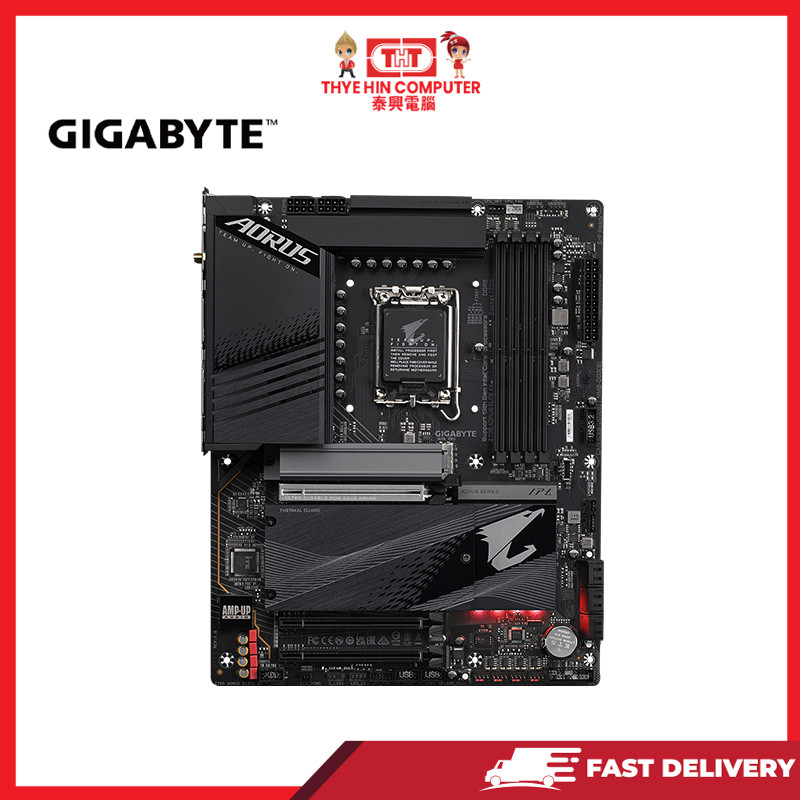

GIGABYTE Z790 A ELITE AX DDR4 LGA 1700 MOTHERBOARD

CPU        1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
        2. L3 cache varies with CPU
Chipset        Intel® Z790 Express Chipset
Memory    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
        2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
        3. Dual channel memory architecture
        4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics    Integrated Graphics Processor-Intel® HD Graphics support:
            1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
            * Support for HDMI 2.0 version and HDCP 2.3.
            2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
            * Support for DisplayPort 1.2 version and HDCP 2.3
Audio        1. Realtek® Audio CODEC
        2. High Definition Audio
        3. 2/4/5.1/7.1-channel
        4. Support for S/PDIF Out
LAN        Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module    Intel® Wi-Fi 6E AX211
                    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
                    2. BLUETOOTH 5.3
                    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

I/O Controller        iTE® I/O Controller Chip
H/W Monitoring        1. Voltage detection
            2. Temperature detection
            3. Fan speed detection
            4. Water cooling flow rate detection
            5. Fan fail warning
            6. Fan speed control

BIOS        1. 1 x 256 Mbit flash
        2. Use of licensed AMI UEFI BIOS
        3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software    1. Norton® Internet Security (OEM version)
            2. LAN bandwidth management software
Operating System    1. Support for Windows 11 64-bit
            2. Support for Windows 10 64-bit
Form Factor        ATX Form Factor; 30.5cm x 24.4cm
