Sale!

TPLINK CPE210 SMB OUTDOOR WIFI 2.4GHZ 300MBPS [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimizations for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Out of stock

SKU: N8018 Categories: Brand, Networking, Tplink, Whole Home Wifi System

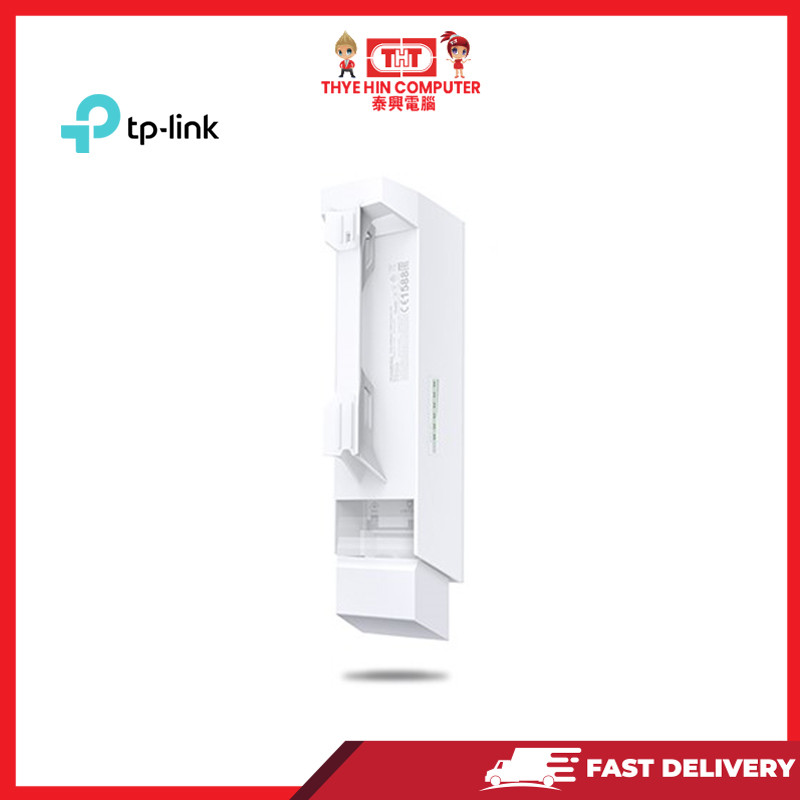

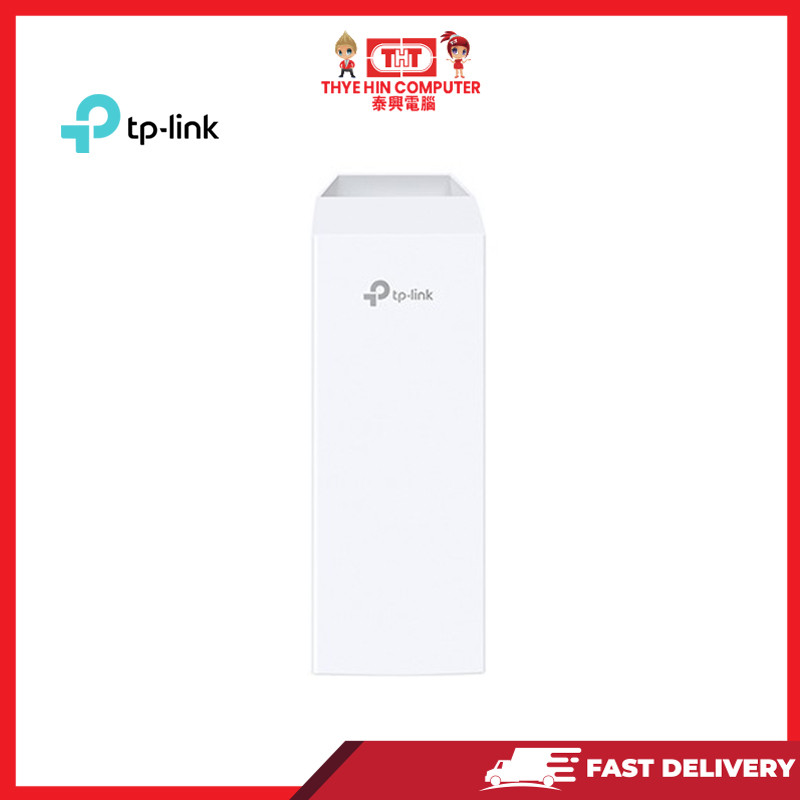

TPLINK CPE210 SMB OUTDOOR WIFI 2.4GHZ 300MBPS

HARDWARE FEATURES
Processor   Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory   64MB DDR2 RAM, 8MB Flash
Interface   1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
       1 Grounding Terminal
       1 Reset Button
Power Supply   Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
       Voltage range: 16-27VDC
Power Consumption       10.5 Watts Max
Dimensions ( W x D x H )       224 x 79 x 60 mm
Antenna Type       Built-in 9dBi 2×2 Dual-polarized Directional Antenna
           Beam Width: 65° (H-Plane) / 35° (E-Plane)
Protection       15KV ESD Protection
           6KV Lightning Protection
Enclosure   Outdoor ASA stabilized plastic material
       IPX5 waterproof Certification

WIRELESS FEATURES
Wireless Standards       IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol       TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds       Up to 300Mbps (40MHz,Dynamic)
           Up to 144.4Mbps (20MHz,Dynamic)
           Up to 72.2Mbps (10MHz,Dynamic)
           Up to 36.1Mbps (5MHz,Dynamic)
Frequency       2.4~2.483GHz
Transmission Power   27dBm/500mw (Adjustable power by 1dBm)

POE ADAPTER FEATURES
Dimensions(W x D x H)       110*57*33.5mm
Interfaces   1 AC Jack with Earth Ground
       1 10/100Mbps Shielded Ethernet Port (Power + Data)
       1 10/100Mbps Shielded Ethernet Port (Data)
Button       Remote Reset Button
Power Status LEDs   Green
Input       100-240VAC, 50/60Hz
Input Voltage   100VA~240VAC @ 50Hz~60Hz
Input Current   0.4A Max @ 100VAC
Output       24VDC, 0.6A Max
       +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Output Voltage       24VDC(+4,5pins; -7,8pins)
Efficiency       >80%
Certifications       CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification       CE, FCC, RoHS, IPX5
Package Contents   Outdoor Wireless CPE
           24V 0.6A Passive PoE Adapter
           Pole Mounting Straps
           AC Power Cord
           Installation Guide
Environment       Operating Temperature: -40℃~70℃ (-40℉~158℉)
           Storage Temperature: -40℃~70℃ (-40℉~158℉)
           Operating Humidity: 10%~90% non-condensing
           Storage Humidity: 5%~95% non-condensing
