E13 FORMULA 800 KOSS UPS [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

RM199.00

Product Features:

- Compact Size, Light Weight Design
- LED Display Line Interactive UPS
- Excellent Microprocessor Control Guarantees High Reliablility
- Boost and Buck AVR for Voltage Stabilization
- Built-in Surge and Spike Protection
- Simulated SIne Wave Output
- Cold Start Function
- Off-mode Charging
- Auto Restart While AC is Recovering
- Short Circuit, Battery Overcharge /
  Overdischarge, Overload, Surge Protections
- Generator Compatible (Option)
- Optional USB / RS-232 Communication Port
  and RJ-11 / RJ-45 Phone Jack Protection

Out of stock

SKU: B1492 Categories: Brand, Koss, Power & Battery Accessories, Ups Backup Battery

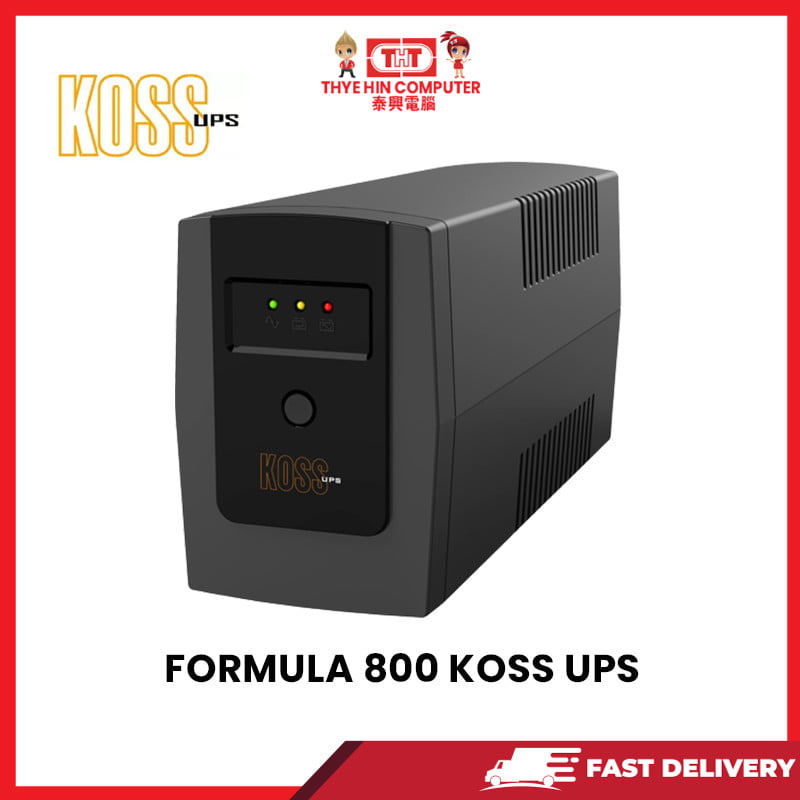

E13 FORMULA 800 KOSS UPS

MODEL	FORMULA 800E
INPUT
Phase	Single Phase, 2 Wires + Earth
Voltage Range	180 – 280 Vac
Frequency Range	50 / 60 ± 10% (Auto-sense)
OUTPUT
Waveform	Mains Mode : Pure Sine Wave; Battery Mode : Simulated Sine Wave
Voltage	230 VAC ± 3%
Frequency Range	50 / 60 Hz ± 1% (Auto-sense)
Transfer TIme	Typical 2 – 6ms

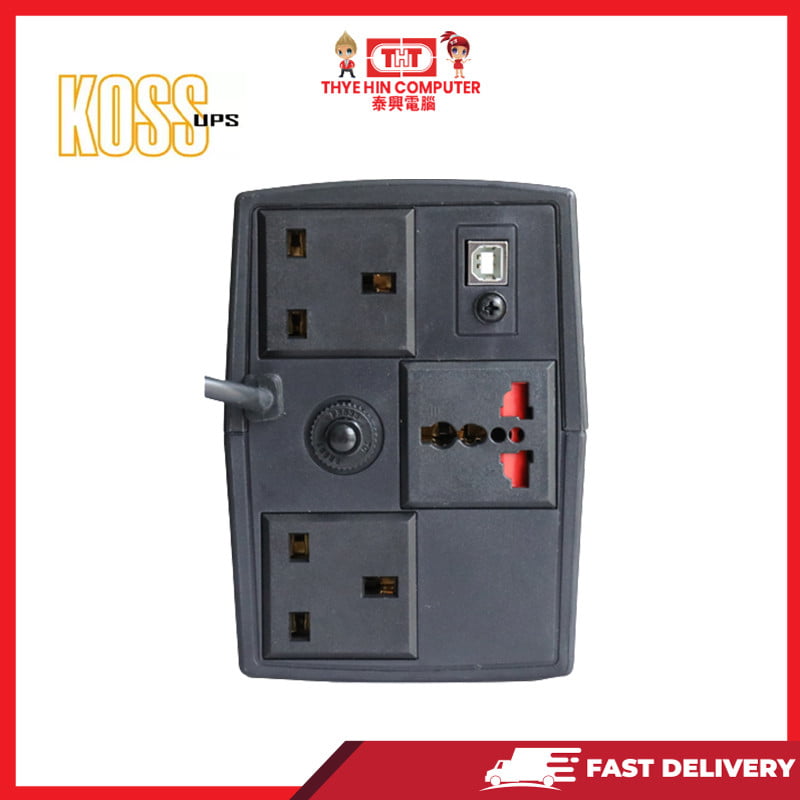

Connection	1 x Universal Socket + 2 British Sockers
STATUS INDICATORS & ALARM
Indicator Display	LED
AC Mode	Green Light (Constant) – No Sound
Battery Mode	Green Light (Flash) – Sounding Every 10 Seconds
Overload Mode	Green Light (Constant) – Sounding Every 0.5 Second and Auto Turn Off
Fault Mode	Green Light (Constant) – Continuously Sounding
PROTECTION
High Voltage Protection	Yes
Circuit Breaker	Short Circuit / Over Voltage
Phone / Fax / Modem Line	RJ11 (Optional)
BATTERIES
Battery Voltage	12V x 7.0 Ah x 1
Backup Time	15 – 30 Minutes (Depends on Load)
Recharge Time	4 Hours Recover to 90% Capacity
OTHERS
Protection	Overload, Discharged & Overcharge, Surge & Lightning Protection
Humidity	0 – 90% RH @ 0 ~ 40℃ (Non-condensing)
Noise Level	≤ 40 dB (1m)
PHYSICAL
Dimensions ( W x D x H )	133 x 349 x 165
Net Weight (kg)	4.2
