CM MWE BRONZE V3 750W POWER SUPPLY [SBN:YES NILAI:YES MELAKA:NO HPS:NO]

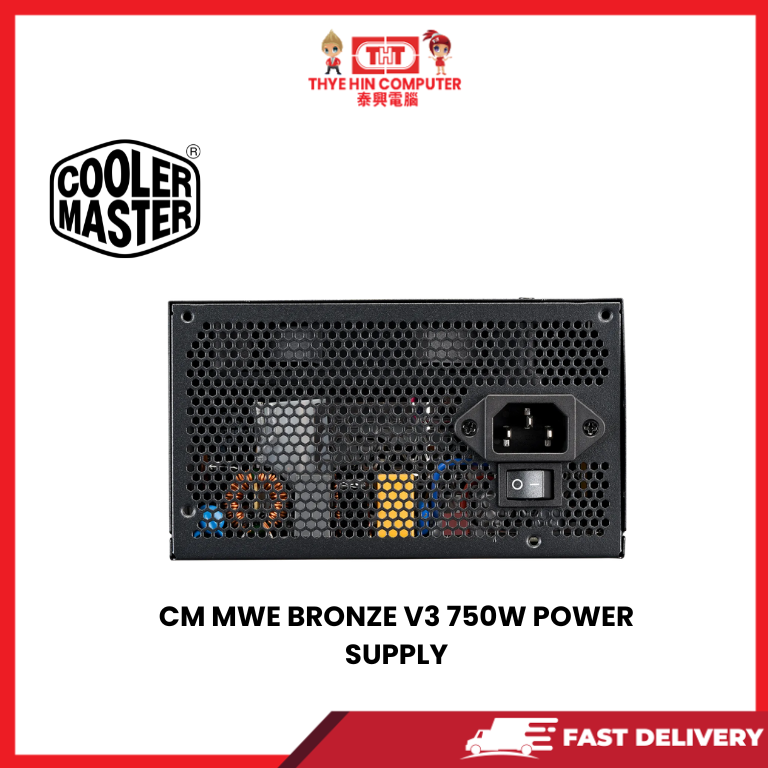

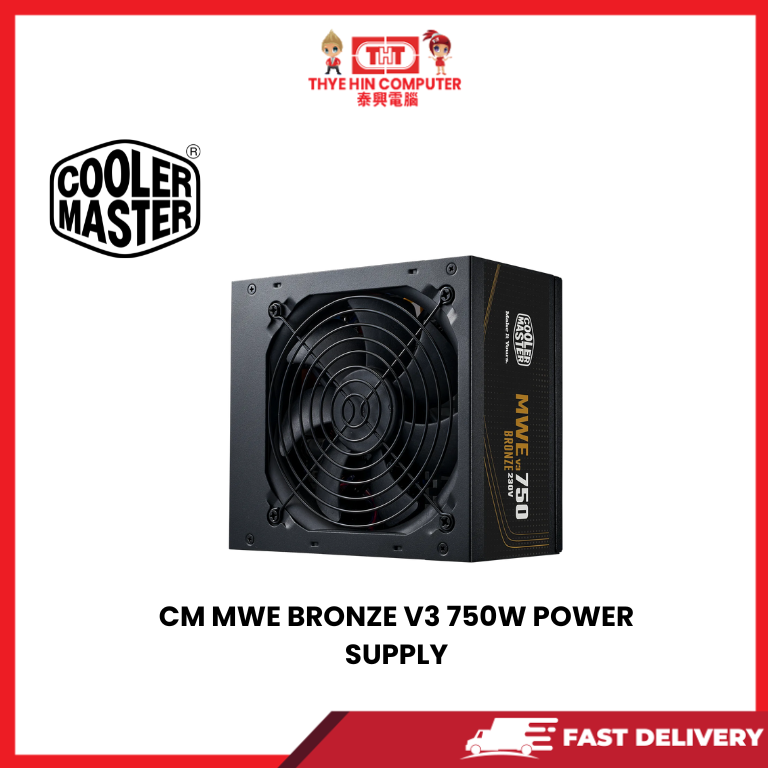

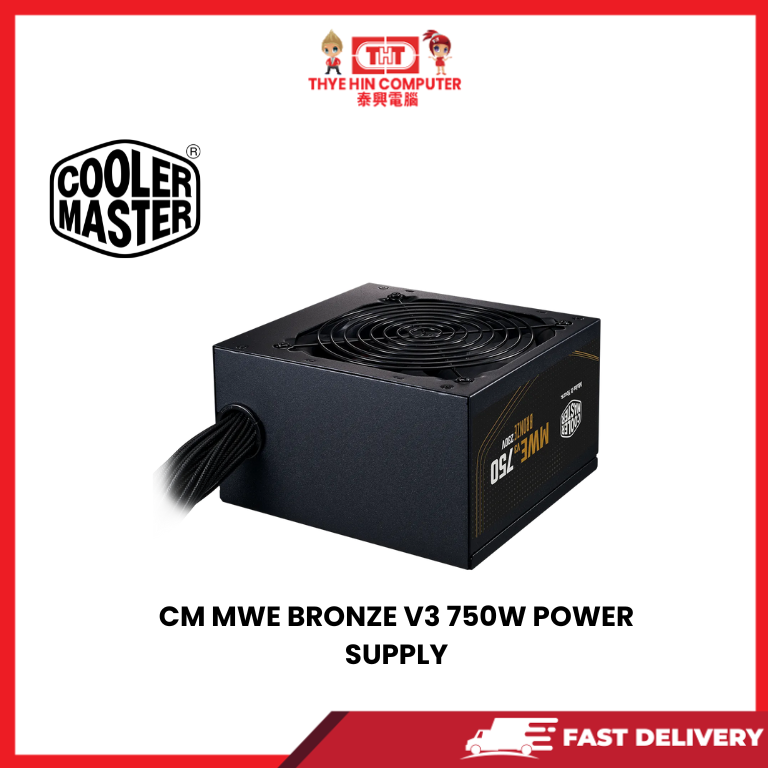

CM MWE BRONZE V3 750W POWER SUPPLY

Model: MPE-7501-ACABW-3B

ATX Version: ATX 12V Ver. 3.1

PFC: Active PFC

Input Voltage: 200-240V

Input Current: 6A

Input Frequency: 50-60Hz

Dimensions (L x W x H): 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch

Fan Size:120mm

Fan Bearing: HDB

Efficiency: >88% @ Typical Load

80 PLUS Rating: 80 PLUS Bronze EU 230V

ERP 2014 Lot 3: Yes

Operating Temperature: 0-40°C

Power Good Signal: 100 – 150 ms

Hold Up Time: >16ms

MTBF: >100,000 Hours

Protections: UVP / OVP / OPP / OTP / SCP

Regulatory: TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)

ATX 24 Pin Connectors: 1

EPS 8 Pin / 4+4 Pin Connectors: 2

SATA Connectors: 6

Peripheral 4 Pin Connectors: 3

PCI-e 6+2 Pin Connectors: 4

Warranty: 5 Years

Series: MWE Bronze Series

Category: 500 to 750W

Modular: Non Modular

80 Plus Efficiency: Bronze

Form Factor: ATX

Watts: 750W
