CM MWE BRONZE V3 550W POWER SUPPLY [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM269.00
Out of stock

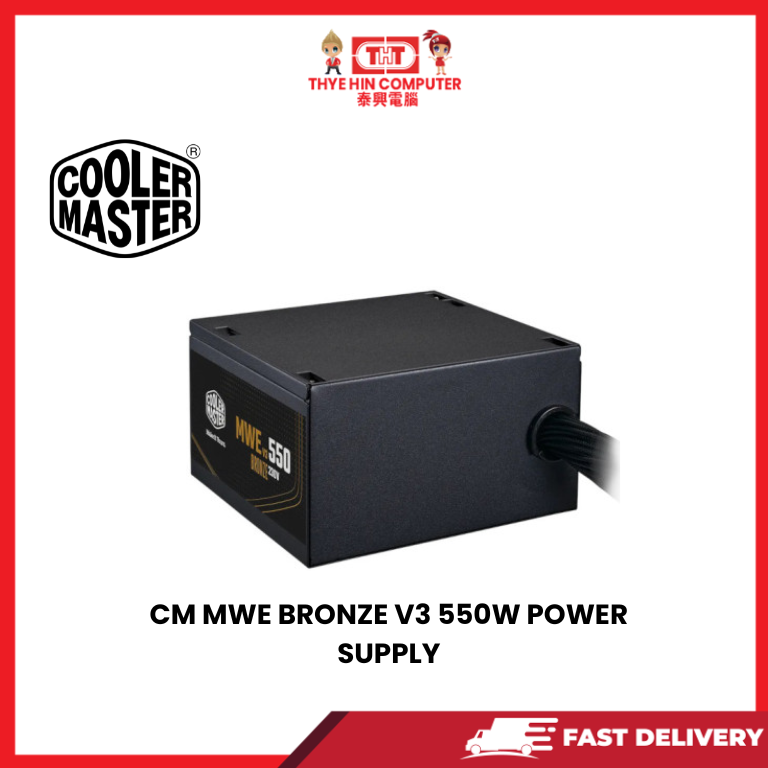

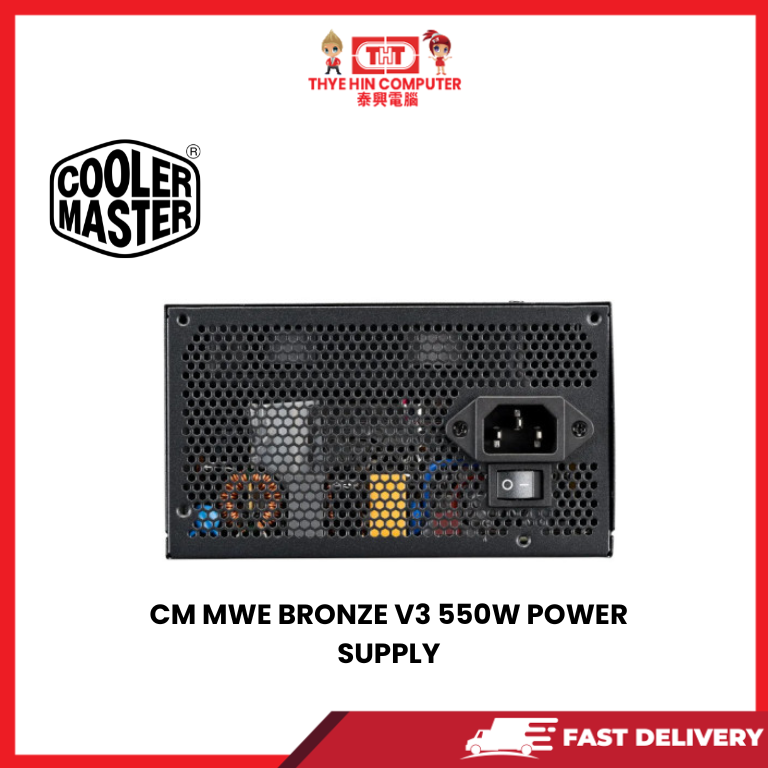

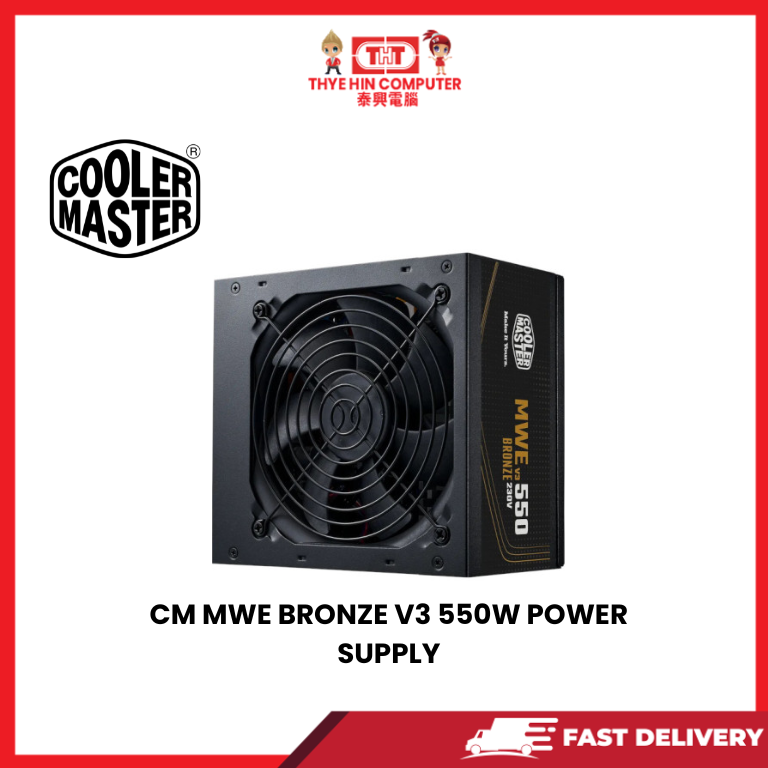

CM MWE BRONZE V3 550W POWER SUPPLY
Specifications
| MODEL | MPE-5501-ACABW-3BUK / MPE-6501-ACABW-3BUK / MPE-7501-ACABW-3BUK |
| ATX VERSION | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| INPUT VOLTAGE | 200-240Vac |
| INPUT CURRENT | 5A |
| INPUT FREQUENCY | 50-60Hz |
| DIMENSIONS (L X W X H) | 140 x 150 x 86 mm |
| FAN SIZE | 120mm |
| FAN BEARING | HDB |
| EFFICIENCY | >88% @ Typical Load |
| 80 PLUS | 80 PLUS Bronze EU 230V |
| ERP 2014 LOT 3 | Yes |
| Operating Temperature | 0-40°C |
| POWER GOOD SIGNAL | 100 – 150 ms |
| HOLD UP TIME | >16ms |
| MTBF | >100,000 Hours |
| PROTECTIONS | UVP / OVP / OPP / OTP / SCP |
| REGULATORY | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| CONNECTORS |
ATX 24-Pin x 1 PCI-E 6+2 Pin x 4 ( 650W ) |
| WARRANTY | 5 Years |
| MODULAR | non Modular |
| SERIES | MWE Bronze Series |
| Weight | 2.00 kg |
|---|---|
| Dimensions | 14.00 × 15.00 × 8.60 cm |
