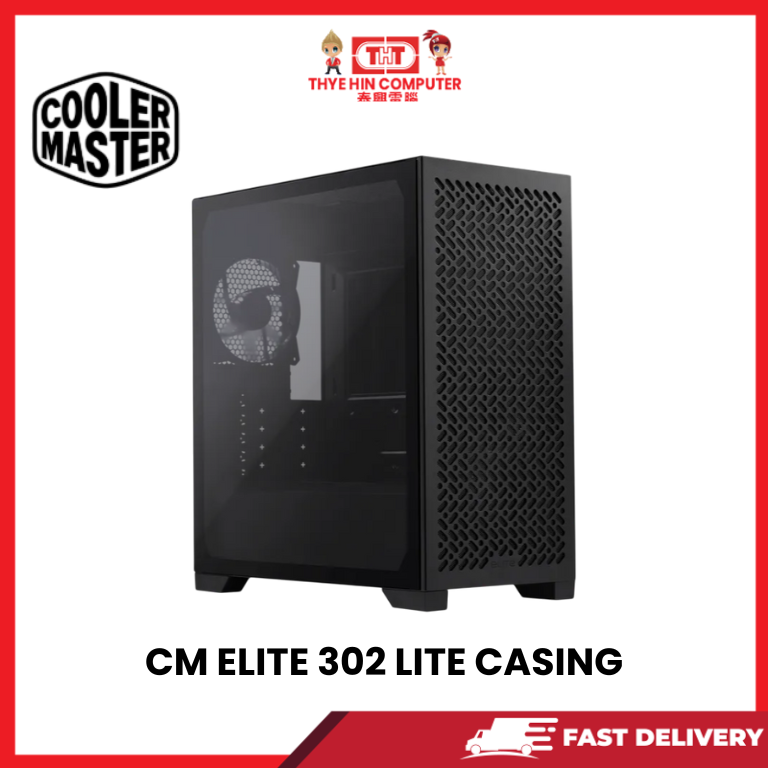

CM ELITE 302 LITE CASING [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Model Number:

• Black: E302L-KGNN-S00

• White: E302L-WGNN-S00

Exterior Color: Black, White

Exterior Material: Steel

Side Panel Material (Right / Left): Tempered Glass / Steel

Dimensions (Incl. Protrusions): 39 × 20.35 × 43 cm

Dimensions (Excl. Protrusions): 37.7 × 20.35 × 41 cm

Volume (Incl. Protrusions): 34.13L

Motherboard Support: Mini-ITX, Micro-ATX

Expansion Slots: 4

5.25" Drive Bays: None

3.5" Drive Bays: 1

2.5" Drive Bays: 1 (Max. 2)

I/O Panel – USB Ports: 1× USB 3.2 Gen1 Type-A, 1× USB 3.2 Gen1 Type-C

I/O Panel – Audio: 1× 3.5mm combo jack

Fan Support – Front: 3× 120mm

Fan Support – Top: 2× 120mm / 2× 140mm

Fan Support – Rear: 1× 120mm

Pre-installed Fans – Front: None

Pre-installed Fans – Top: None

Pre-installed Fans – Rear: 1× 120mm Black Fan

Radiator Support – Front: 120 / 240 / *360 mm (*Up to 60mm thickness)

Radiator Support – Top: 120 / 140 / 240 / 280 mm

Radiator Support – Rear: 120 mm

CPU Cooler Clearance: 16.35 cm

PSU Clearance: 16 cm

Graphics Card Clearance: 36.5 cm (without front fans & radiator)

Cable Routing Space: 1.85 cm

Dust Filters: Top / Bottom / Front

PSU Support: ATX

Warranty: 2 years

Size Category: Mini Tower

Series: Elite Series
