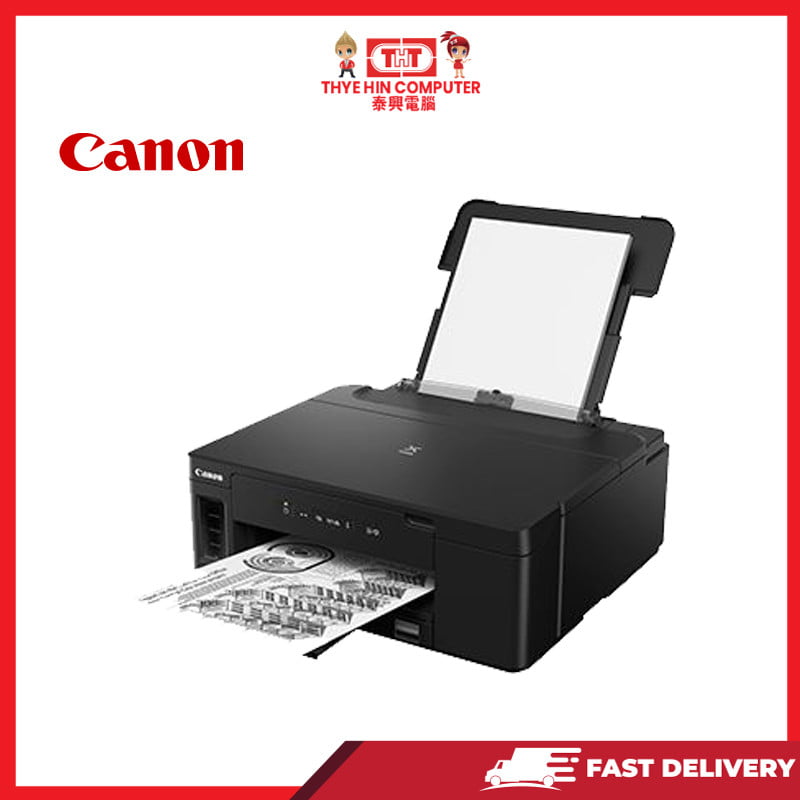

CANON GM2070 PRINTER [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Print Head / Ink

Type

Permanent (Replaceable)

Number of Nozzles

Black: 640 nozzles (Optional Colour: 1152 nozzles)

Ink Bottles / Cartridges

GI-70 (Pigment Black)
Optional: CL-741, CL741XL

Maximum Printing Resolution

600 (horizontal)*1 x 1200 (vertical) dpi

Print Speed*2

Based on ISO/IEC 24734
Click here for Summary Report
Click here for Document Print and Copy Speed Measurement Conditions

Document (ESAT/Simplex)

Approx. 13.0 ipm (black) / 6.8 ipm (colour)

Document (ESAT/Duplex)

Approx. 4.8 ipm (black) / 2.8 ipm (colour)

Document (FPOT Ready / Simplex)

Approx. 9 sec (black) / 14 sec (colour)

Printable Width

Up to 203.2mm (8")

Printable Area

Borderless Printing*3

–

Bordered Printing

#10 Envelope/DL Envelope:
Top 8 mm / Bottom 12.7 mm / Right 5.6 mm / Left 5.6 mm

LTR / LGL:
Top 3 mm / Bottom 5 mm / Right 6.3 mm / Left 6.4 mm

Others:
Top 3 mm / Bottom 5 mm / Right 3.4 mm / Left 3.4 mm

Bordered Auto 2-Sided Printing

Top / Bottom margin: 5 mm,
Left / Right margin: 3.4 mm (LTR: Left: 6.4 mm, Right: 6.3 mm)

Support Media

Rear Tray

Plain Paper (64 – 105 g/m²)
High Resolution Paper (HR-101N)
Envelope

Cassette

Plain Paper (64 – 105 g/m²)

Paper Size

Rear Tray

A4, A5, B5, LTR, LGL, Envelopes (DL, COM10), Card Size (91 x 55 mm)

[Custom size] width 55 – 215.9 mm, length 89 – 676 mm

* F4 is possible via custom size settings.

Cassette

A4, A5, B5, LTR

[Custom size] width 148.0 – 215.9 mm, length 210 – 297 mm

* F4 is possible via custom size settings.

Paper Handling (Maximum Number)

Rear Tray

Plain Paper (A4, 64 g/m²) = 100
High Resolution Paper (HR-101N) = 80

Cassette

Plain Paper (A4, 64 – 105 g/m²) = 250

Support Media for Auto 2-sided printing

Type

Plain Paper

Size

A4, A5, B5, LTR

Paper Weight

Rear Tray

Plain Paper: 64 – 105 g/m²

Cassette

Plain Paper: 64 – 105 g/m²

Ink End Sensor

Electrode type and dot count type combined
Optional colour cartridge; Dot count

Print Head Alignment

Auto/Manual

Protocol

TCP/IP, SNMP

Wired LAN

Network Type

IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)

Data Rate

10M/100Mbps (Auto switchable)

Wireless

Network Type

IEEE802.11b/g/n

Frequency Band

2.4 GHz

Channel*4

1 – 13

Range

Indoor 50 m (Depends on the transmission speed and conditions)

Security

WEP64/128 bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Direct Connection (Wireless LAN)

Available

Canon Print Service
for Android

Available

PIXMA Cloud Link
(from smartphone/tablet)

Available

Canon PRINT Inkjet/SELPHY
(for iOS/for Android)

Available

Windows 10 / 8.1 / 7 SP1
(Operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)


Interface

USB 2.0

Operating Environment*6

Temperature

5 – 35°C

Humidity

10 – 90% RH (no dew condensation)

Recommended Environment*7

Temperature

15 – 30°C

Humidity

10 – 80% RH (no dew condensation)

Storage Environment

Temperature

0 – 40°C

Humidity

5 – 95% RH (no dew condensation)

Quiet Mode

Available

Acoustic Noise (PC Print)

Plain Paper (A4, B/W)*8

Approx. 52.0 dB(A)

Power

AC 100-240 V, 50/60 Hz

Power Consumption

OFF

Approx. 0.3 W

Standby (scanning lamp is off)
USB connection to PC

Approx. 0.8 W

Standby
(all ports connected, scanning lamp is off)
[EU only – for ErP Lot 26 regulation]

Approx. 1.6 W

Time to enter Standby mode
[EU only – for ErP Lot 26 regulation]

Approx. 1 min 29 sec

Printing*9
USB connection to PC

Approx. 13 W

Duty Cycle

Up to 15,000 pages/month

Dimension (WxDxH)

Factory Configuration

Approx. 403 x 369 x 166 mm

Output/ADF trays extended

Approx. 403 x 695 x 356 mm

Weight

Approx. 6.0 kg

Plain Paper (A4 pages)
(ISO/IEC 24712 test file)*10

Standard:
GI-70 PGBK*11: 6,000

Economy:
GI-70 PGBK: 8,300

Optional:
CL-741: 180
CL-741XL: 400
