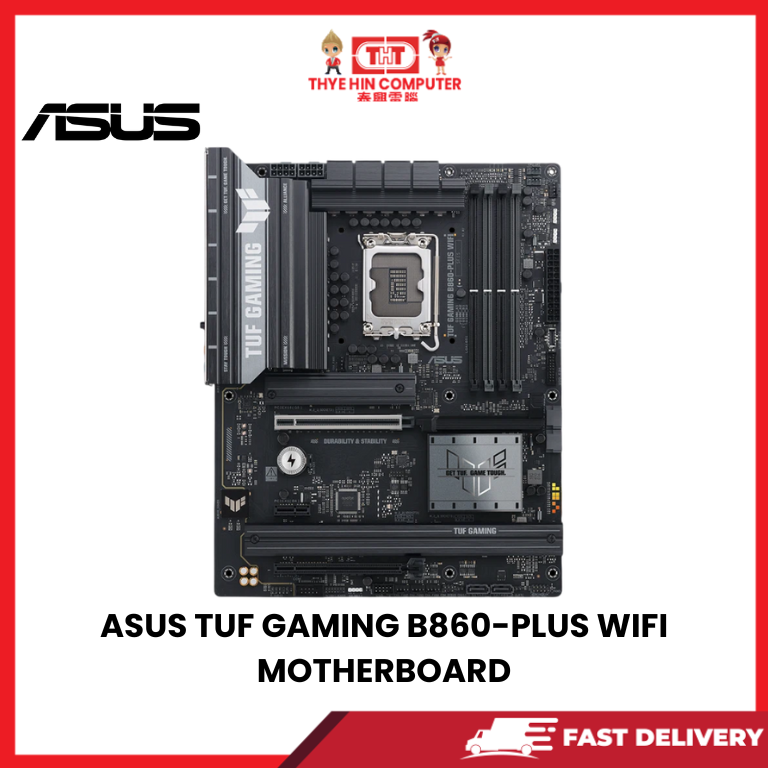

ASUS TUF GAMING B860-PLUS WIFI MOTHERBOARD [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

General

• Form Factor: ATX (30.5 cm x 24.4 cm)

• Chipset: Intel® B860

• Socket: LGA1851

• Supported CPUs: Intel® Core™ Ultra Processors (Series 2)

  • Supports Intel® Turbo Boost Tech 2.0 & Max 3.0

Memory

• 4 x DDR5 DIMM slots, up to 256GB

• Supports up to 8666+ MT/s (OC)

• Dual channel, Non-ECC, Un-buffered

• Supports XMP and ASUS Enhanced Memory Profile III (AEMPIII)

Graphics

• 1 x DisplayPort 1.4 (4K@60Hz)

• 1 x HDMI 2.1 (4K@60Hz)

• 1 x USB-C (20Gbps) with DisplayPort video output

  (Graphics specs vary by CPU)

 Expansion Slots

• 1 x PCIe 5.0 x16 (from CPU)

• 1 x PCIe 4.0 x16 (x4 mode from chipset)

• 1 x PCIe 4.0 x1

 Storage

• 3 x M.2 slots

  • M.2_1: PCIe 5.0 x4 (CPU)

  • M.2_2: PCIe 4.0 x4 (up to 22110)

  • M.2_3: PCIe 4.0 x4 (up to 2280)

• 4 x SATA 6Gb/s ports

• Supports Intel® RST, RAID 0/1/5/10

 Networking

• Realtek 2.5Gb Ethernet with TUF LANGuard

• Wi-Fi 7 (802.11be) – 2×2, supports 2.4/5/6GHz

• Bluetooth® 5.4

• Full Wi-Fi 7 features require Windows 11 24H2 or later

 USB Ports

Rear I/O:

• 1 x USB 20Gbps (USB-C)

• 2 x USB 10Gbps (Type-A)

• 3 x USB 5Gbps (Type-A)

• 2 x USB 2.0 (Type-A)

Front Panel:

• 1 x USB 10Gbps header (USB-C)

• 1 x USB 5Gbps header (2 ports)

• 1 x USB 2.0 header (2 ports)

 Audio

• Realtek 7.1 Surround HD Audio CODEC

• S/PDIF Out, Audio shielding, premium capacitors

• Dedicated PCB layers for audio

Rear I/O Ports

• 1 x USB 20Gbps (USB-C with DP Alt mode)

• 2 x USB 10Gbps (Type-A)

• 3 x USB 5Gbps (Type-A)

• 2 x USB 2.0 (Type-A)

• 1 x DisplayPort

• 1 x HDMI

• 1 x Optical S/PDIF out

• 5 x Audio jacks

• 1 x BIOS FlashBack™ button

• 1 x 2.5Gb LAN port

• 1 x Wi-Fi antenna port

Cooling & Power

• 1 x CPU Fan, 1 x CPU OPT Fan

• 1 x AIO Pump, 4 x Chassis Fan headers

• 2 x 8-pin +12V CPU Power

• 1 x 24-pin ATX Power

 Internal Headers & Features

• 3 x Addressable Gen 2 RGB headers

• 1 x Clear CMOS header

• 1 x COM port header

• 1 x Chassis Intrusion

• 1 x Front Panel Audio

• 1 x Thunderbolt (USB4) header

ASUS Features

• TUF Protection: DIGI+ VRM, ESD guards, LANGuard, stainless I/O

• Q-Design: Q-Latch, Q-Slot, Q-LED, Q-DIMM, Q-Antenna

• Thermal: VRM & M.2 Heatsinks

• EZ DIY: Pre-mounted I/O shield, FlashBack™, CPU lever protector

• Aura Sync RGB

 Software

• Armoury Crate (Aura Sync, Fan Xpert 4)

• ASUS DriverHub, GlideX, TUF GAMING CPU-Z

• DTS Audio, Norton 360 (60-day trial), WinRAR (40-day trial)

---

Accessories

• 2 x SATA cables

• 2 x M.2 rubber + 1 x screw package

• 1 x WiFi Q-Antenna

• 1 x TUF GAMING sticker

• 1 x Quick Start Guide

OS Support

• Windows 11 (22H2 & later)
