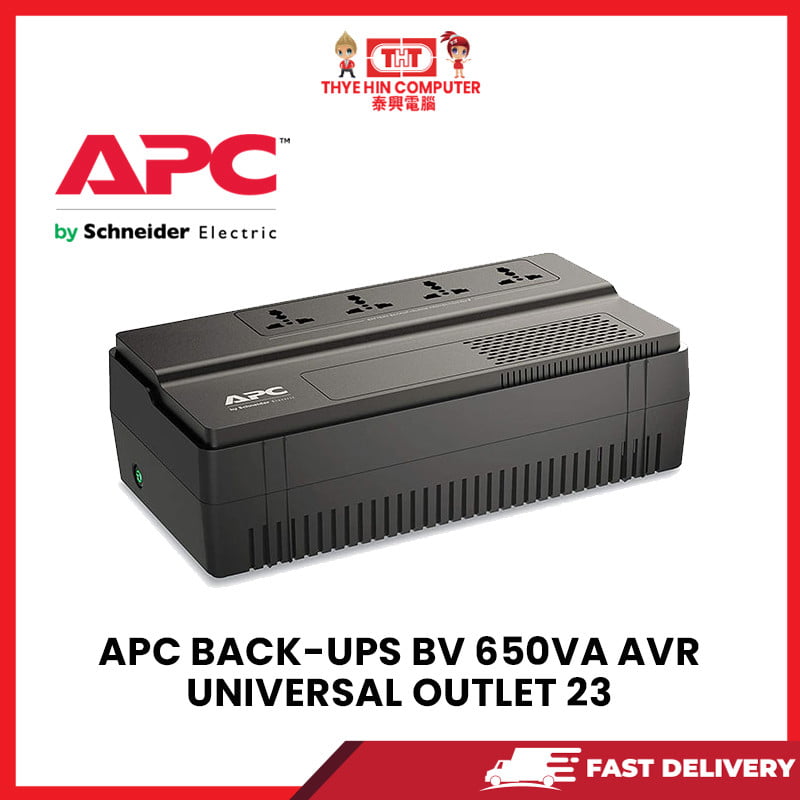

APC BACK-UPS BV 650VA AVR UNIVERSAL OUTLET 230V [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

RM259.00

Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated Power in W: 375 W
Rated Power in VA: 650 VA
Input Connection Type: BS1363A British
Output Connection Type: 4 Universal Receptacles
Cable Length: 1.50 m
Number of Cables: 1
Battery Type: Lead-acid Battery
Provided Equipment: User Manual

Out of stock

SKU: B1358 Category: Accessories

APC BACK-UPS BV 650VA AVR UNIVERSAL OUTLET 230V

Specifications

Overview
Lead time	Usually in Stock

Main
Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power in W	375 W
Rated power in VA	650 VA
Input Connection Type	NEMA 5-15P
output connection type	4 universal receptacle
Cable length	1.20 m
Number of cables	1
Battery type	Lead-acid battery
Provided equipment	User manual

Batteries & Runtime
Efficiency	View Efficiency Graph action_new_window
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Battery voltage	12 V
battery capacity	7.0 Ah
Battery life	3…5 year(s)
Replacement battery	APCRBCV210 action_new_window
Extended runtime	0

General
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No
UPS size	WS

Physical
Colour	Black
height	9.25 cm
Width	16.5 cm
Depth	30.5 cm
Net weight	4.5 kg
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No

Input
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits	170…280 V

Output
Maximum configurable power in W	375 W
Output frequency	50/60 Hz +/- 1 Hz unsynchronised
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Graph display	1
Maximum configurable power in VA	650 VA
Transfer time	6 ms typical : 10 ms maximum

Conformance
product certifications	CE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
ambient air temperature for operation	0…40 °C
Relative humidity	0…90 %
Operating altitude	0…6667 ft
Ambient air temperature for storage	-20…50 °C
Storage Relative Humidity	0…90 %
Storage altitude	0.00…15240.00 m
Acoustic level	40 dBA
IP degree of protection	IP20

Communications & Management
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rate	156 J

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	23.7 cm
Package 1 Width	37.3 cm
Package 1 Length	14.3 cm
Package 1 Weight	4.8 kg
SCC14	10731304338335
