APC BACK-UPS BV 1600VA AVR UNIVERSAL SOCKETS [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Name: APC BACK-UPS BV 1600VA AVR UNIVERSAL SOCKETS [SBN:NO NILAI:NO MELAKA:NO HPS:NO] | Thye Hin Computer
SKU: B1530
Price: 959.00 MYR
Availability: OutOfStock

RM959.00

Out of stock

SKU: B1530 Categories: Power & Battery Accessories, Ups Backup Battery

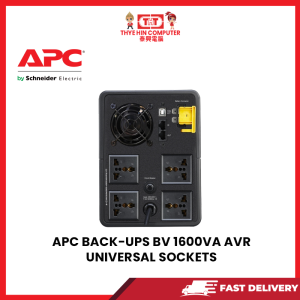

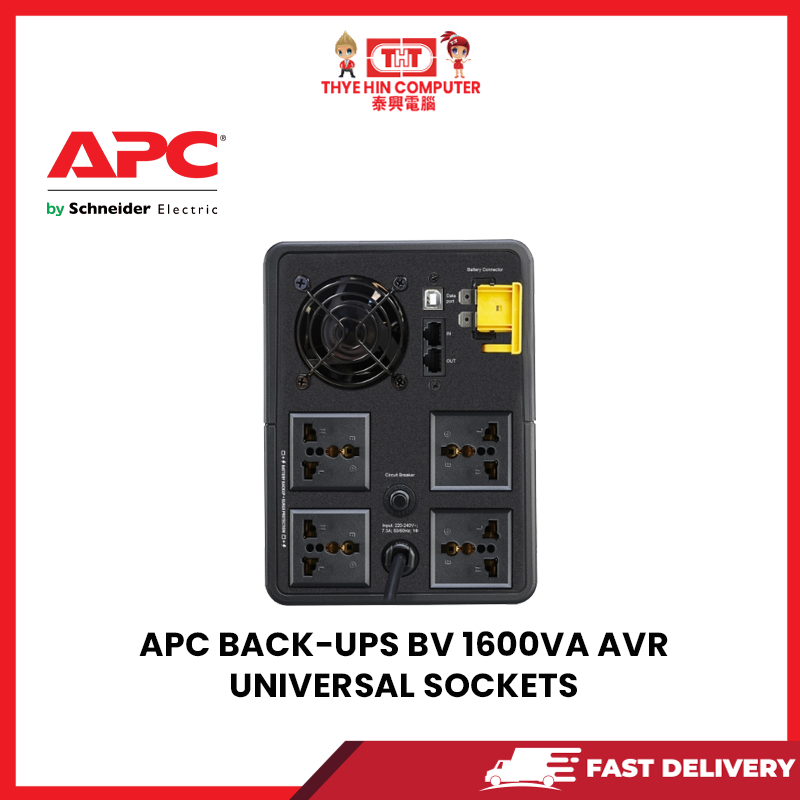

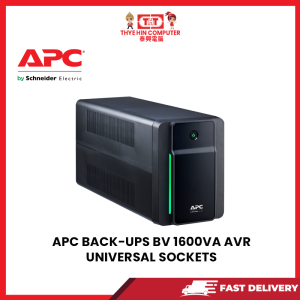

APC BACK-UPS BV 1600VA AVR UNIVERSAL SOCKETS

Main Input Voltage	230 V
Rated power in W	900 W
Rated power in VA	1600 VA
output connection type	4 universal
Cable length	1.22 m
Number of cables	1
battery type	Lead-acid battery

Batteries & Runtime
Run Time	View Runtime Graph action_new_window
Efficiency	View Efficiency Graph action_new_window
Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
battery voltage	24 V
Battery power in VAH	136 VAh runtime 168 VAh capacity
Battery life	3…5 year(s)
Replacement battery	APCRBC176 action_new_window
Battery graph comments	Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extended runtime	0

General
Provided equipment	User manual
Max runtime	240 min
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No

Physical
Colour	Black
Height	19 cm
Width	14 cm
Depth	39 cm
Net weight	10.3 kg
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No

Input
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits	140…300 V
Input Power Factor at Full Load	0.56

Output
Maximum configurable power in W	900 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Full load runtime	00:01:00 900 W
Half load runtime	00:06:30 450 W
Maximum configurable power in VA	1600 VA
Transfer time	6 ms typical : 10 ms maximum

Conformance
product certifications	CE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Equipment protection policy	Lifetime : 50000 euros

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0…3000 m
Ambient air temperature for storage	-15…40 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…3000 m
Acoustic level	40 dBA
IP degree of protection	IP20

Communications & Management
control panel	LED Status display with on line : on battery

Surge Protection and Filtering
Surge energy rate	273 J

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	29.7 cm
Package 1 Width	49.5 cm
Package 1 Length	23.5 cm
Package 1 Weight	11.3 kg
SCC14	10731304410727
