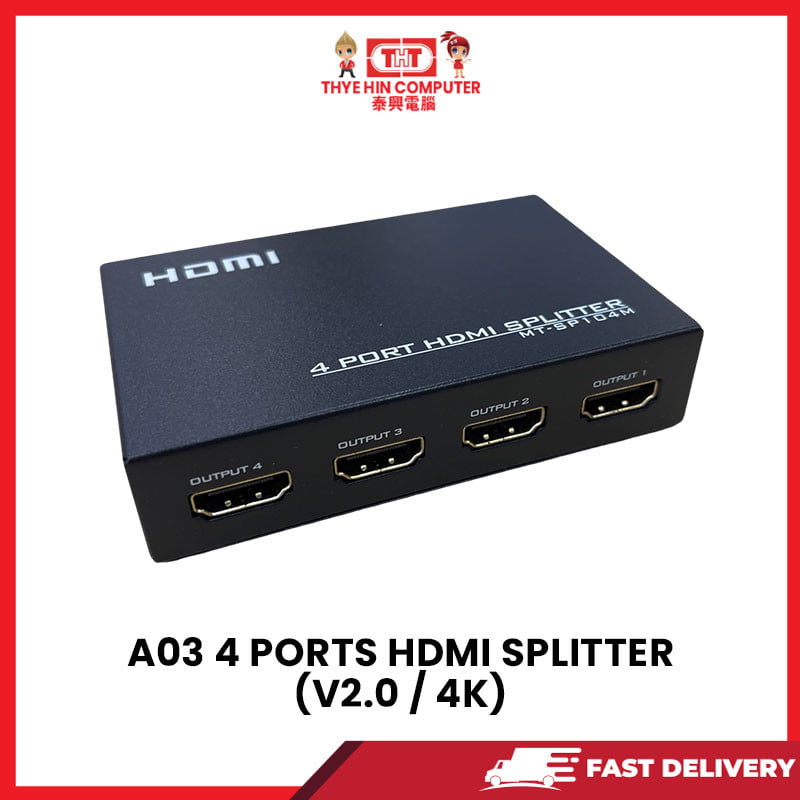

A03 4 PORTS HDMI SPLITTER (V2.0/4K) [SBN:YES NILAI:YES MELAKA:NO HPS:NO]

A03 4 PORTS HDMI SPLITTER (V2.0/4K)

Specifications:

• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 18Gbps
• Video Resolutions:
  • 720P @ 50/60Hz
  • 1080P @ 50/60Hz
  • 4K2K @ 24Hz
  • 4K2K @ 30Hz
  • 4K2K @ 50/60Hz (4:4:4)
• Color Depth:
  • 4K @ 60Hz 8-bit
  • 1080P 12-bit
• Color Space:
  • RGB
  • YCbCr 4:4:4
  • YCbCr 4:2:2
• HDMI Audio Formats:
  • LPCM
  • Dolby Digital/Plus/EX
  • Dolby True HD
  • DTS
  • DTS-EX
  • DTS-96/24
  • DTS High Res
  • DTS-HD Master Audio
  • DSD
• L/R Audio Formats: PCM 2.0
• Optical Audio Formats:
  • LPCM [2.0/2.1]CH
  • Dolby 5.1
  • Dolby True HD
  • Dolby DD+
  • DTS 5.1
  • DTS-ES 6
  • DTS-HDMA 5.1
  • DTS HD-HRA 5.1
• ESD Protection:
  • Human-body Model: ±8kV (Air-gap discharge)
  • ±4kV (Contact discharge)

Connections:

• Input Ports: 1 x HDMI Type A [19-pin female]
• Output Ports:
  • 4 x HDMI Type A [19-pin female]
  • 1 x L/R Audio out [3.5mm Stereo Mini-jack]
  • 1 x Optical out [S/PDIF]

Mechanical:

• Housing: Metal Enclosure
• Color: Black
• Dimensions: 7"(W) x 2.5"(D) x 0.6”(H) [180mm(W) x 62mm(D) x 14mm(H)]
• Weight: 0.5lbs [227g]

Power:

• Power Supply:
  • Input: AC100~240V 50/60Hz
  • Output: DC5V/1A (US/EU standards, CE/FCC/UL certified)
• Power Consumption: 3.5W (max)

Environmental:

• Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
• Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
• Relative Humidity: 20~90% RH (non-condensing)
