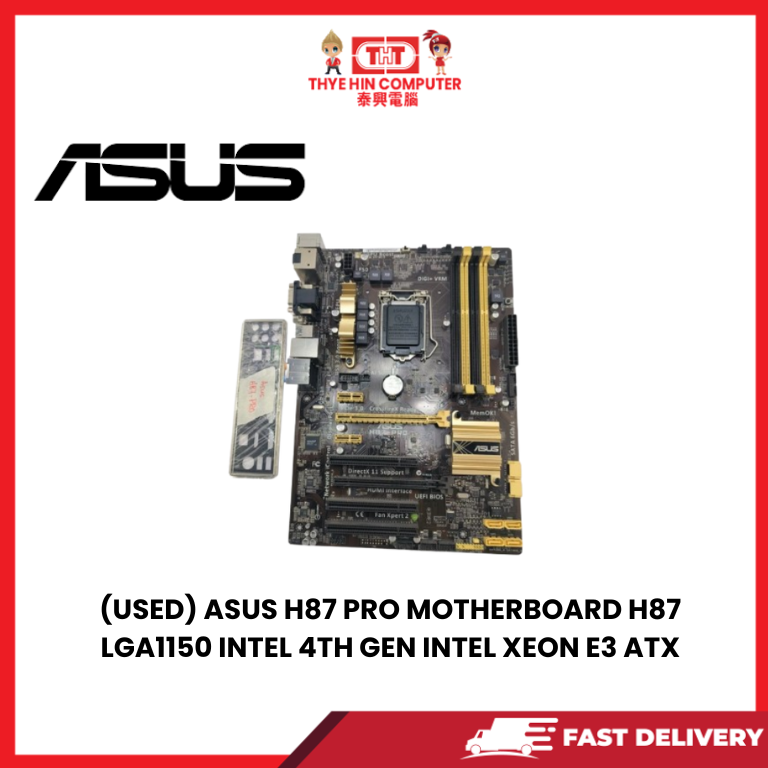

(USED) ASUS H87 PRO MOTHERBOARD H87 LGA1150 INTEL 4TH GEN INTEL XEON E3 ATX [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Supported CPU:

• LGA 1150 Socket
• Compatible with Intel Core i7, i5, i3, Pentium, Celeron (LGA1150)
• Supports Intel 4th Gen processors
• Intel H87 Chipset

Memory:

• 4 x DDR3 RAM slots (1600/1333/1066 MHz, Dual Channel)
• Maximum memory supported: 32GB

Rear Panel Ports:

• 1 x PS/2 Keyboard/Mouse Combo port
• 1 x Optical S/PDIF out port
• 1 x LAN (RJ-45) port
• 1 x DisplayPort
• 1 x HDMI port
• 1 x DVI port
• 1 x D-Sub port
• 2 x USB 2.0/1.1 ports
• 4 x USB 3.0/2.0 ports (blue, one supports USB BIOS Flashback)
• 8 x channel audio ports

Internal I/O Connectors:

PCIe Slots:

• 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode) [yellow]
• 1 x PCI Express 2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices) [dark brown]
• 2 x PCI Express 2.0 x1 slots
• 3 x PCI Express slots

Storage:

• 6 x SATA 6Gb/s connectors

USB:

• 2 x USB 3.0/2.0 ports (mid-board for front panel)
• 4 x USB 3.0/2.0 ports (rear panel, blue, Intel H87 Express Chipset)
• 8 x USB 2.0/1.1 ports (6 at mid-board, 2 at rear panel)

Other Connectors:

• 1 x 24-pin EATX main power connector
• 1 x 8-pin EATX 12V power connector
• 1 x 19-pin USB 3.0/2.0 connector (supports 2 additional USB ports)
• 3 x USB 2.0/1.1 connectors (support 6 additional USB 2.0/1.1 ports)
• 6 x SATA 6.0 Gb/s connectors (yellow)
• 1 x CPU fan connector (4-pin)
• 3 x Chassis fan connectors (4-pin)
• 1 x Front panel audio connector (AAFP)
• 1 x S/PDIF Out connector
• 1 x COM connector
• 1 x System panel connector
• 1 x GPU Switch
• 1 x MemOK! Button

Form Factor:

• ATX (30.5cm x 21.8cm)
