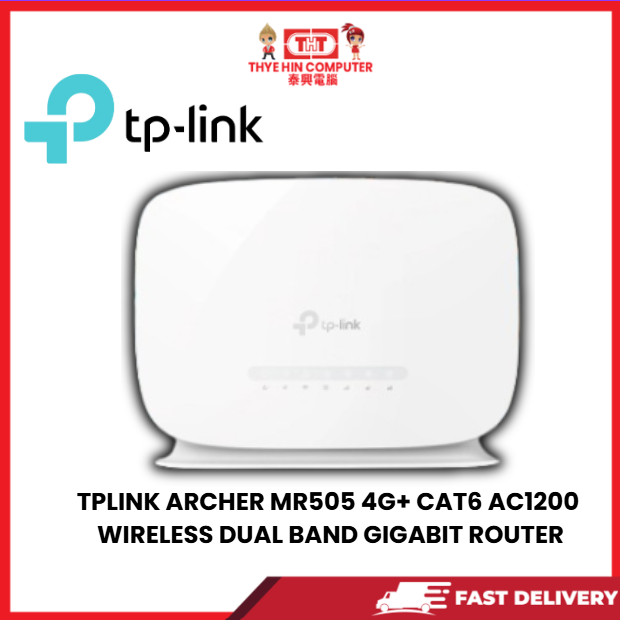

TPLINK ARCHER MR505 4G+ CAT6 AC1200 WIRELESS DUAL BAND GIGABIT ROUTER [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Hardware Features

• Interface:

  • 1 × 10/100/1000 Mbps LAN/WAN Port

  • 2 × 10/100/1000 Mbps LAN Ports

  • 1 × Nano SIM Card Slot

  • 2 × External SMA-F Antenna Interfaces

• Power Supply: 12V/1.5A

• Dimensions (W × D × H): 21.2 × 15.75 × 5.7 cm

• Antenna: 2 Detachable External LTE Antennas

Wireless Features

• Wireless Standards: IEEE 802.11a/n/ac (5 GHz), IEEE 802.11b/g/n (2.4 GHz)

• Frequency Bands: 2.4 GHz and 5 GHz

• Signal Rate:

  • 300 Mbps at 2.4 GHz

  • 867 Mbps at 5 GHz

• Reception Sensitivity:

  • 5 GHz:

    • 11a 54M: -77 dBm

    • 11ac HT20: -73 dBm

    • 11ac HT40: -68 dBm

    • 11ac HT80: -64 dBm

    • 11n HT20: -77 dBm

    • 11n HT40: -73 dBm

  • 2.4 GHz:

    • 11g 54M: -74 dBm

    • 11n HT20: -72 dBm

    • 11n HT40: -69 dBm

• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

• WAN Failover: Supported

• Wireless Security: 64/128-bit WEP, WPA/WPA2/WPA3 (Personal/Enterprise)

• Transmission Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

• Network Type (4G/3G Supported):

  • FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

  • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

  • DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz)

Software Features

• Quality of Service (QoS): Prioritizes network traffic by device

• Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP & MAC Binding, Access Control, Service Filtering

• WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual Access)

• Management: TP-Link Cloud, Local Management, Remote Management

• DHCP: Server, Client List, Address Reservation

• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ

• Dynamic DNS: TP-Link, DynDns, NO-IP

• VPN Support: PPTP VPN Server, OpenVPN Server

• Parental Controls: URL Filtering, Time Controls

• Protocols: IPv4, IPv6

• Guest Network: 1 × 2.4 GHz, 1 × 5 GHz

Others

• Certification: CE, RoHS

• Package Contents:

  • 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router (Archer MR505)

  • 1.5m Power Adapter

  • RJ45 Ethernet Cable

  • Quick Installation Guide

• Environment:

  • Operating Temperature: 0℃ ~ 40℃

  • Operating Humidity: 10% ~ 90% (non-condensing)

  • Storage Humidity: 5% ~ 90% (non-condensing)
