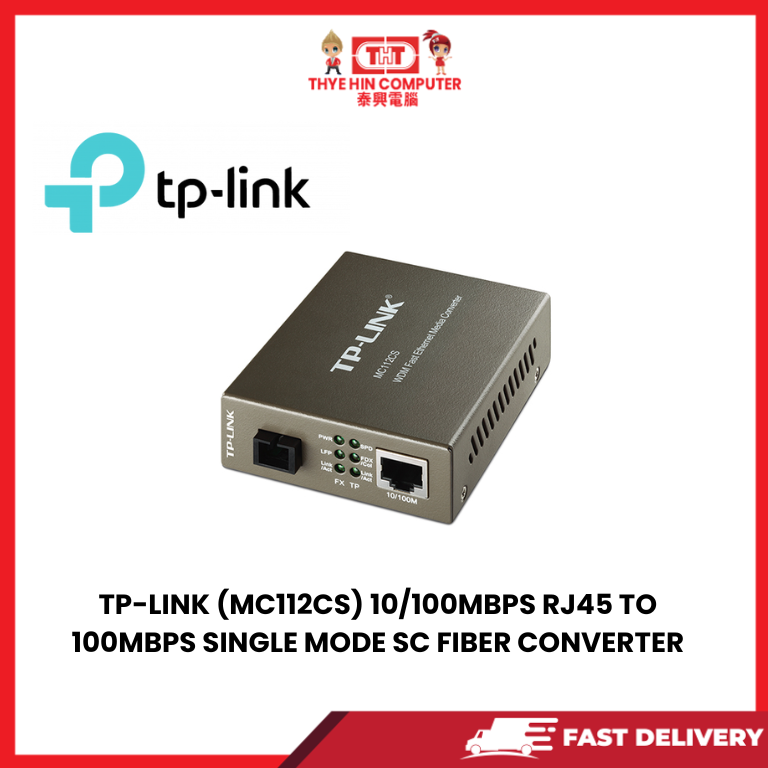

TP-LINK (MC112CS) 10/100MBPS RJ45 TO 100MBPS SINGLE MODE SC FIBER CONVERTER [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

Specifications:

• Ports:

  • 1 x 100M SC/UPC port (Single-mode fiber)
  • 1 x 10/100M RJ45 port (Auto MDI/MDIX)

• Network Media:

  • 10BASE-T UTP category 3, 4, 5 cable (Maximum distance: 100m)
  • 100BASE-T UTP category 5, 5e cable (Maximum distance: 100m)
  • 100BASE-FX Single-mode fiber (Maximum distance: 20km)

• Dimensions: 95 x 73 x 27 mm (3.74 x 2.87 x 1.06 inches)

• Power Consumption: Max 2.41W

• Power Supply: External power adapter (DC 5V)

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Safety & Emission Certifications: FCC, CE, RoHS

Features:

• Auto-Negotiation: Automatically negotiates speed and duplex mode (10/100Mbps and full/half-duplex) on the RJ45 port.

• WDM Technology: Utilizes Wavelength Division Multiplexing (WDM) to allow transmission and reception over a single single-mode fiber. Transmission occurs at 1310nm, and reception occurs at 1550nm.

• Extended Distance: Supports fiber distances of up to 20 kilometers (12.5 miles) using single-mode fiber.

• LED Indicators: Provides LED status indicators for Power (PWR) and Link/Activity (Link/Act), helping to monitor network connectivity.

• Cost-Effective Solution: Ideal for extending networks over long distances without needing separate fibers for transmission and reception.

• Compact Design: Small form factor (95 x 73 x 27 mm) for easy installation in various setups.
