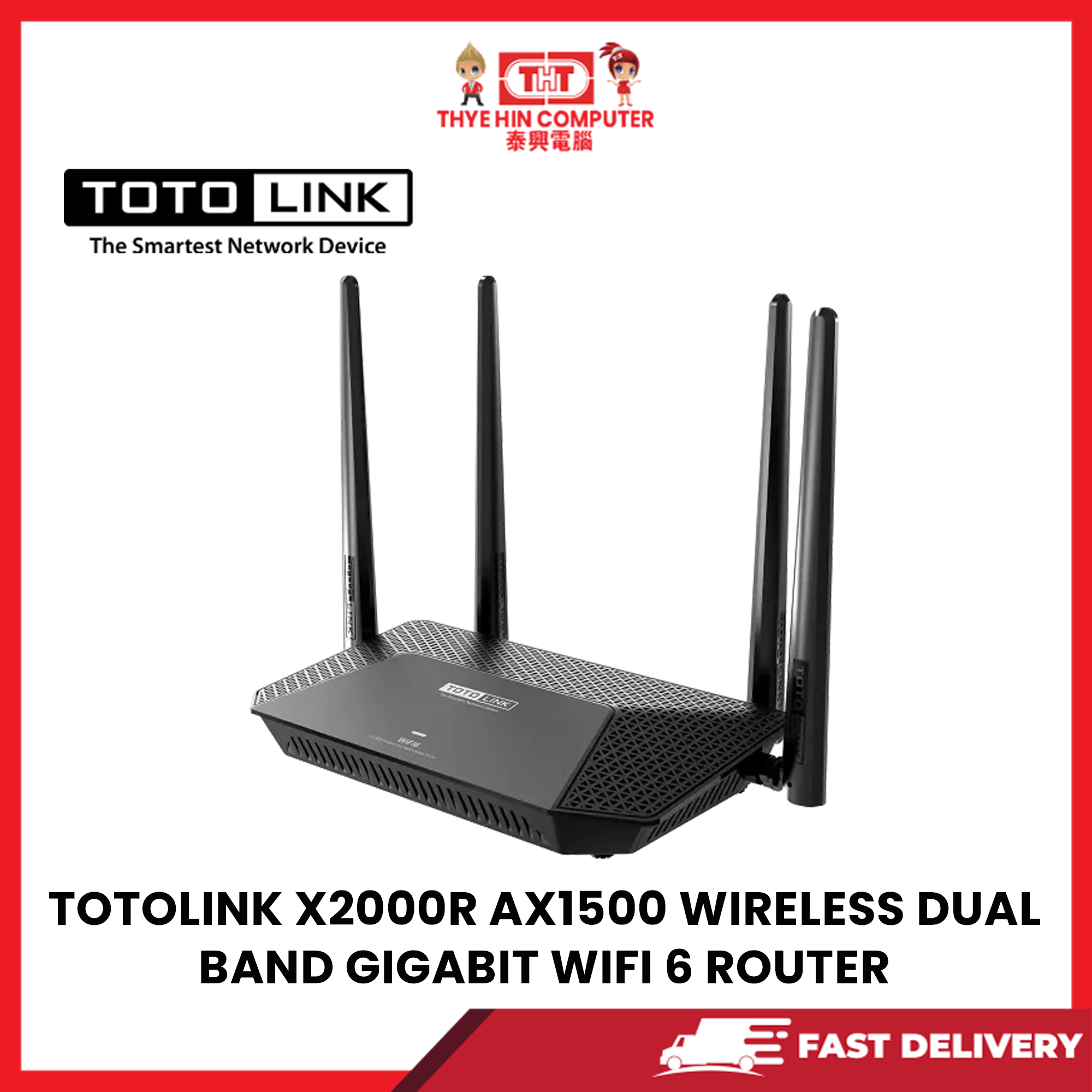

TOTOLINK X2000R AX1500 WIRELESS DUAL BAND GIGABIT WIFI 6 ROUTER [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

Hardware

Interface

– 4 * 10/100/1000Mbps LAN Ports

– 1 * 10/100/1000Mbps WAN Port

Power Supply

– 12V DC/1A

– 1 * RST/WPS Button

– 2 * 2.4GHz fixed antennas(5dBi)

– 2 * 5GHz fixed antennas(5dBi)

– 1 *SYS, 1 *WAN,  4 *LAN

Dimensions (L x W x H)

– 206 x 121 x 41mm

Wireless

Standards

– IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,

– IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency

– 2.4GHz/5GHz

– 2.4GHz: Up to 300Mbps

– 5GHz: Up to 1201Mbps

– 2.4GHz < 20dBm

– 5GHz < 20dBm

Wireless Security

– 64/128-bit WEP, WPA, WPA2 and WPA-Mixed

– WPA3

Reception Sensitivity

– 2.4G:

    11b 11M：-81dBm@8% PER

    11g 54M：-68dBm@10% PER

    11n HT20 MCS7：-65dBm@10% PER

       HT40 MCS7：-62dBm@10% PER

– 5G:

   11a 54M：-68dBm@10% PER

   11n HT20 MCS7：-65dBm@10% PER

      HT40 MCS7：-62dBm@10% PER

   11ac VHT80 MCS9：-51dBm@10% PER

   11ax HE80 MCS11：-46dBm@10% PER

Software

Operation Mode

– Gateway Mode

– Repeater Mode

– AP Mode

– WISP Mode

Status

– WAN

– Wireless

– LAN

– System Information

Network

– WAN Setting

– LAN Setting

– IPTV Setting

– DHCP&ARP Tables

– Static Route

– Routing Table

Mesh setting

– Optional master device and slave device

WAN Type

– Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP

IPv6 Protocol

– DHCP/Static IP/PPPoE

Wireless

– Basic Settings

– Guest network

– Advanced Settings

– Access Control

– Wireless Schedule

QoS

– Up/Down speed control on WAN,

– Bandwidth control based on IP address

Security

– IP/Port Filtering

– MAC Filtering

– URL Filtering

NAT

– Virtual Server(Port Forwarding)      – DMZ

– VPN Passthrough

System

– Upgrade Firmware

– Save/Reload Settings

– Time Zone Settings

– DDNS                        – Denial-of-Service

– TR-069 Config

– Password Settings

– Reboot Schedule

– System Log

– Statistics                    – Run Command

– Logout

Others

Package Contents

– X2000R Wireless Router * 1

– Power Adapter * 1

– Ethernet Cable * 1

– Quick Installation Guide * 1

Environment

– Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

– Operating Humidity: 10%~90% non-condensing

– Storage Humidity: 5%~90% non-condensing
