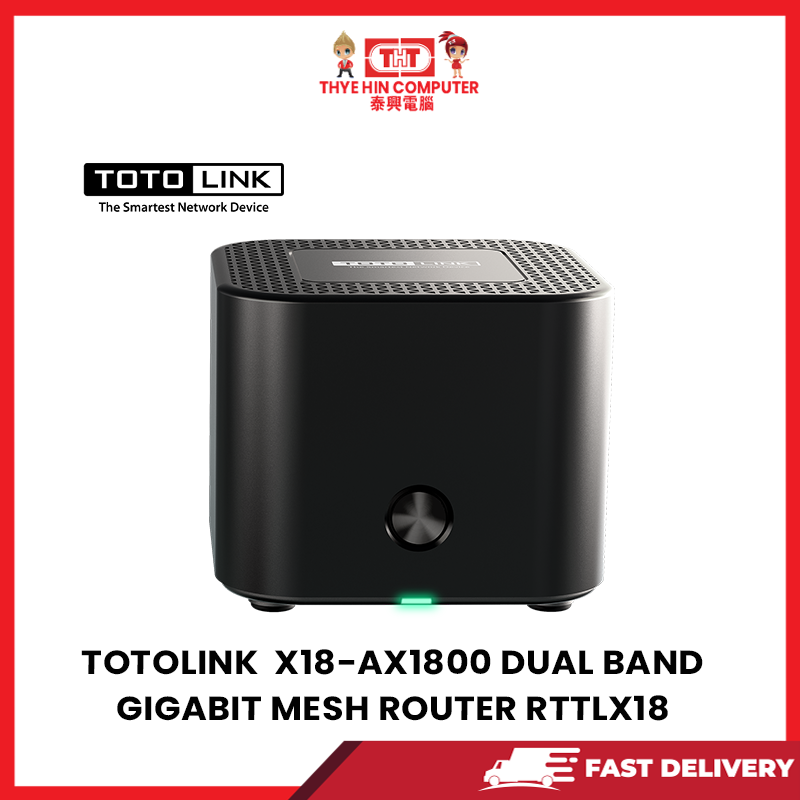

TOTOLINK X18-AX1800 DUAL BAND GIGABIT MESH ROUTER RTTLX18 [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

Hardware

– 2 *1000Mbps LAN Ports

– 1 *1000Mbps WAN Port

– 1 *Mesh/RST Button

LED  Indicators

– 1 *System (Red/Green)

Wireless

– IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n, IEEE 802.11s

– 2.4GHz/5GHz

– 2.4GHz: Up to 574Mbps (2*2 40MHz)

– 5GHz: Up to 1201Mbps (2*2 80MHz)

– 2.4GHz < 20dBm

– 5GHz < 20dBm

– WPA2/WPA Mixed

– WPA3

– 2.4GHz：

    11b 11M：-81dBm

    11g 54M：-68dBm

    11n HT20 MCS7：-65dBm   HT40 MCS7：-62dBm

    11ax HE-SU40 MCS11:  -48dBm

– 5GHz：

    11a 54M：-68dBm

    11n HT20 MCS7：-65dBm   HT40 MCS7：-62dBm

    11ac VHT80 MCS9：-51dBm

    11ax HE-SU40 MCS11：-48dBm   HE-SU80 MCS11：-46dBm

Software

Operation Mode

– Mesh Mode

– Quick Setup            – Basic setup             – Advanced setup

– Logout                    – Reboot                     – Language Auto

– Mesh Networking   – Mesh Topology        – Roaming

– Clear default pairing

Network

– WAN Setting            – LAN Setting           – IP/MAC Binding

– DDNS Setting          – IPTV Setting          – IPv6

– Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP

– Basic setup

 – Parental Control

QoS

– Up/Down speed control on WAN, Bandwidth control based on IP address

Security

– MAC Filtering

– IP/Port Filtering

– URL Filtering

NAT

– Virtual Server(Port Forwarding)

– DMZ

– VPN passthrough

– Upgrade Firmware

– Time Setup

– Remote management

– Password Settings

– Reboot Schedule

– System Log and so on

Others

– X18 Wireless Router *1

– Power Adapter *1

– Ethernet Cable *1

– Quick Installation Guide *1

   Remark：

   Take Unit pack as an example.(This product also has 2 in 1 and 3 in 1 package, the above list is only for reference.)
