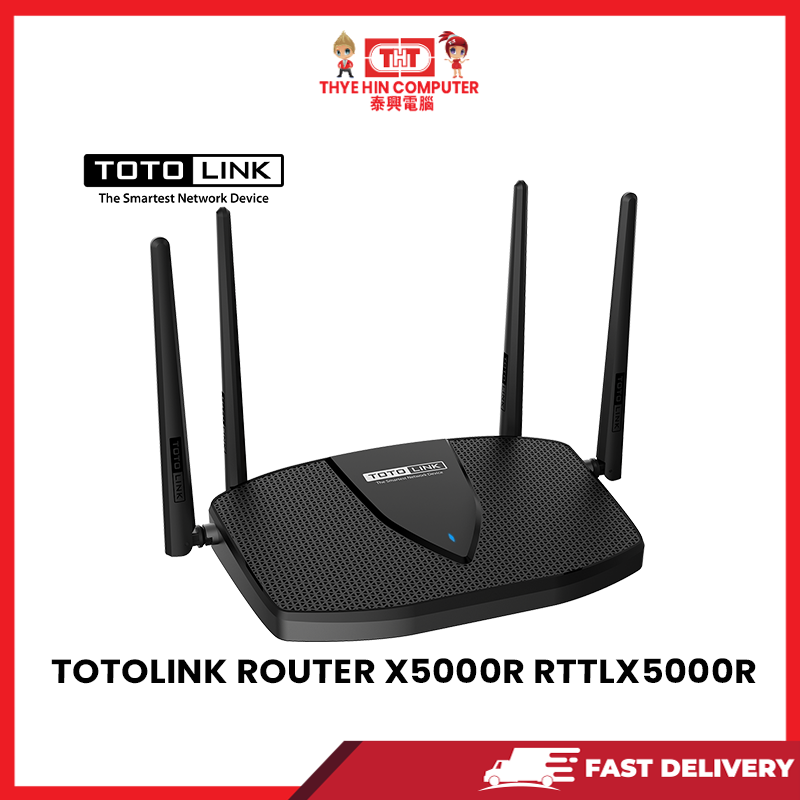

TOTOLINK ROUTER X5000R RTTLX5000R [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Hardware

Chipsets

– MT7621A+MT7915DA+MT7975DN

Flash/RAM

– 16Mbyte/256Mbyte

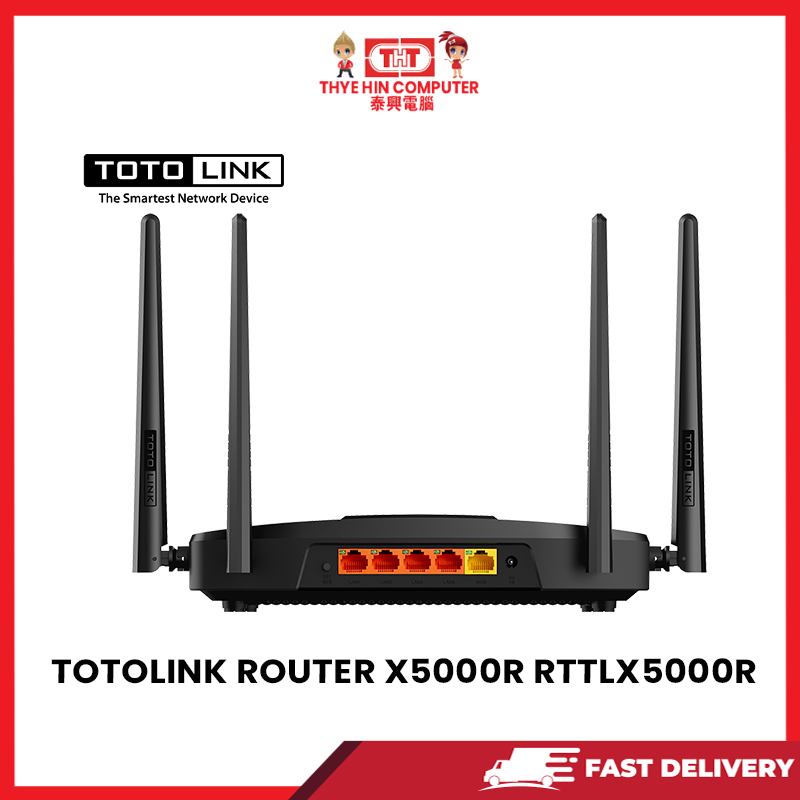

Interface

– 4*1000Mbps LAN Ports

– 1*1000Mbps WAN Port

Power Supply

– 12V DC/1A

–  4 * 5dBi fixed external antennas

– 1 *SYS(Blue)

– 4 *LAN(Green),

– 1 *WAN(Green)

Dimensions (L x W x H)

– 241.0 x 147.0 x 48.5mm

Wireless

Standards

– IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,

– IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency

– 2.4~2.4835GHz

– 5.18~5.825GHz

– 2.4GHz: Up to 573.5Mbps (2*2 40MHz)

– 5GHz: Up to 1201Mbps (2*2 80MHz)

– 2.4GHz < 20dBm

– 5GHz < 20dBm

Wireless Security

– WPA2/WPA Mixed

– WPA3

Reception Sensitivity

– 2.4G: 11b: <-85dbm;

            11g: <-72dbm;

            11n: HT20<-68dbm  HT40: <-65dbm

– 5G: 11a:<-72dbm;

         11n: HT20<-68dbm  HT40: <-65dbm

         11ac: <-55dbm

         11ax VHT80 : <-46dbm

Software

Basic

– Internet Settings

– Wireless Settings

– Parental Control

– Guest Network Settings

– Smart QoS

Network

– Internet Setup

– LAN Setup

– DDNS

– IPTV

– IPv6

Wireless

 – Wireless Setup

– Guest Network

– Schedule

– Access Control

– Advanced

– Parental Control

– Smart QoS

Device Management

– Routing Table

– Static Route

– IP/MAC Binding

Security

– IP/Port Filtering

– MAC Filtering

– URL Filtering

NAT

– Virtual Server

– DMZ

– VPN Passthrough

Remote network

– L2TP Server

– Shadow socks

– Account Manage

Service

– Remote

– UPnP

– Schedule

Tools

– Change Password

– Time Setup

– System

– Upgrade

– Diagnosis

– Route Tracking

– Log

Operation Mode

– Gateway mode

– Bridge mode

– Repeater mode

– WISP mode

Other Function

– Multi-language automatic adaptation

– Domain Access

– QR Code

– LED Control

– Reboot

– Logout

Others

Package Contents

– X5000R Wireless Router *1

– Power Adapter *1

– RJ45 Ethernet Cable *1

– Quick Installation Guide *1

Environment

– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

– Operating Humidity: 5%~95% non-condensing

– Storage Humidity: 5%~95% non-condensing
