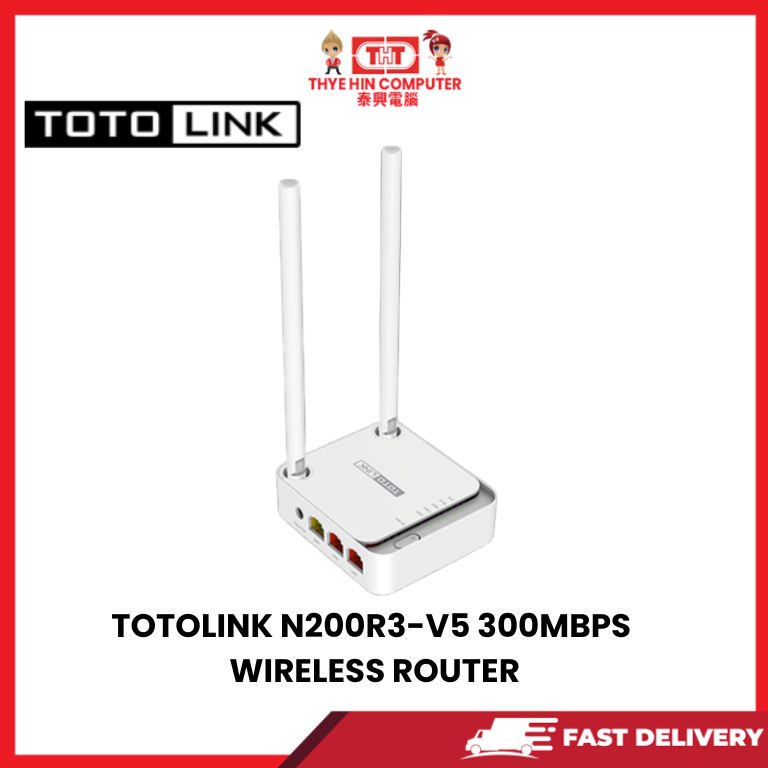

TOTOLINK N200R3-V5 300MBPS WIRELESS ROUTER [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

Interface

• 2 × 100Mbps LAN Ports

• 1 × 100Mbps WAN Port

Power Supply

• DC 5V / 0.6A

Button

• 1 × RST/WPS Button

LED Indicators

• 1 × System

• 1 × Wi-Fi

• 1 × WAN

• 2 × LAN

Antenna

• 2 × External fixed antennas (2.4G)

Dimensions (L x W x H)

• 91mm × 80mm × 25mm

---

Wireless Features

Standards

• IEEE 802.11b

• IEEE 802.11g

• IEEE 802.11n

RF Frequency

• 2.4 ~ 2.4835 GHz

Data Rate

• Up to 300Mbps (2.4GHz)

EIRP

• < 20dBm

Wireless Security

• WPA/WPA2 Mixed

Reception Sensitivity

• 11b 11M: -85dBm @ 8% PER

• 11g 54M: -72dBm @ 10% PER

• 11n HT20 MCS7: -68dBm @ 10% PER

• HT40 MCS7: -65dBm @ 10% PER

---

Software Features

Operation Modes

• Gateway Mode

• Repeater Mode

• Bridge Mode

• WISP Mode

Home Menu

• Quick Setup

• Basic Setup

• Advanced Setup

• QR Code

• LED

• Logout

• Reboot

Network Settings

• WAN Setting

• LAN Setting

• DDNS Setting

• IPTV Setting

• IPv6 Setting

WAN Types

• Static IP

• DHCP

• PPPoE / Russia PPPoE

• PPTP / Russia PPTP

• L2TP / Russia L2TP

Wireless Settings

• Basic Setup

• Guest Network (Multiple SSID)

• Wireless Schedule

• Access Control

• Advanced Setup

Parental Control

• Internet time control based on MAC

QoS

• Up/Down speed control on WAN

• Bandwidth control based on IP address

Device Management

• Static Route

• Routing Table

• IP/MAC Binding

Security

• MAC Filtering

• IP/Port Filtering

• URL Filtering

NAT

• Virtual Server (Port Forwarding)

• DMZ

• VPN Passthrough
