TOTOLINK LR1200 AC1200 DUAL BAND 4G LTE ROUTER [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

Name: TOTOLINK LR1200 AC1200 DUAL BAND 4G LTE ROUTER [SBN:YES NILAI:NO MELAKA:NO HPS:NO] | Thye Hin Computer
SKU: N2944
Price: 349.00 MYR
Availability: InStock

RM349.00

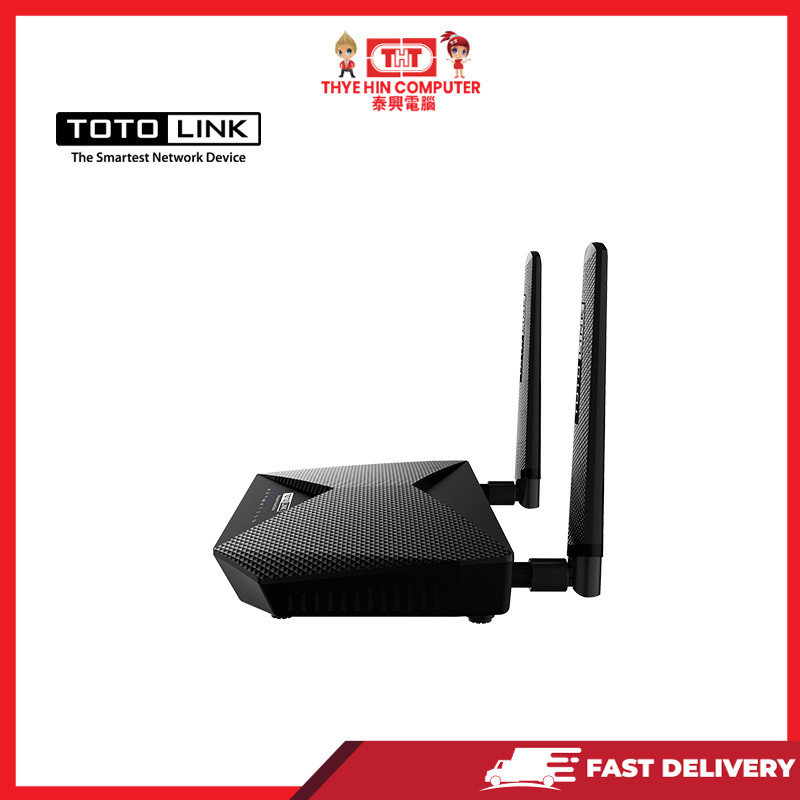

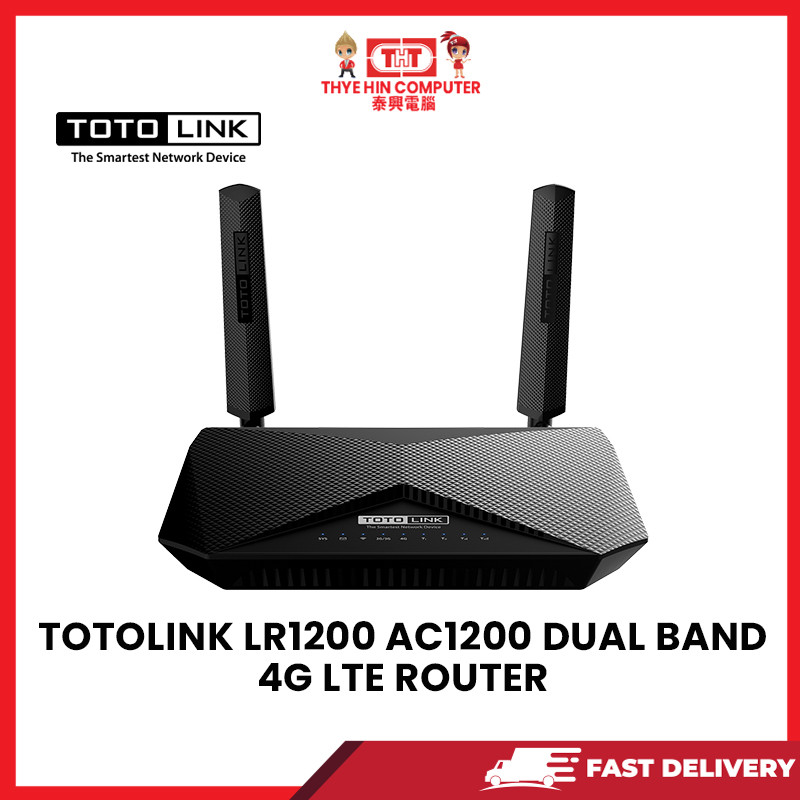

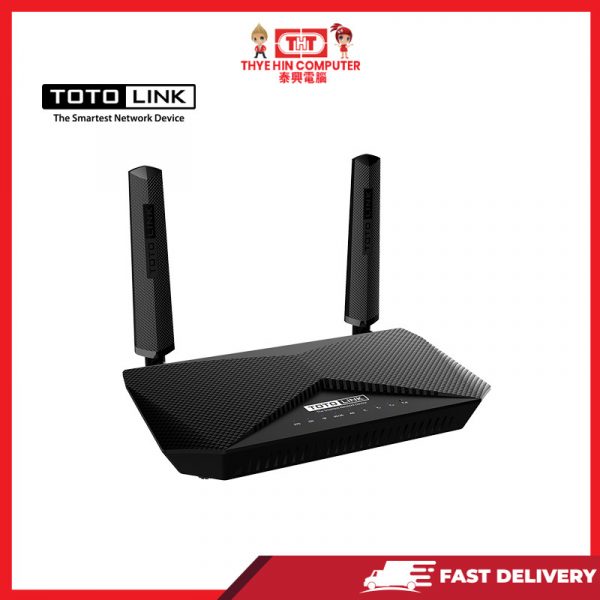

The LR1200 is a wireless dual-band 4G LTE router that complies with the most advanced 802.11ac standards and offers WiFi speeds up to 1200Mbps.

Convenient 4G network access, while share your 4G LTE network with multiple Wi-Fi devices ,that all Wi-Fi devices instantly enter 4G era and enjoy exclusive 4G Wi-Fi.

Features

Complies the IEEE 802.11ac/a/b/g/n standards.

Convenient 4G network access, share your 4G LTE network with multiple Wi-Fi devices.

Creates a simultaneous dual band Wi-Fi network ,with maximum speeds of up to 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.

Powerful , integrated antennas provide stable wireless connections and better coverage.

Supports the TDD-LTE，FDD-LTE,TD-SCDMA, WCDMA,CDMA2000,1xEV-DO,GSM,GPRS,EDGE network type.

Requires no configuration ,just insert a SIM card and turn it on to enjoy a fast wireless connection.

Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 encryptions.

Supports IP, MAC, URL filtering , Port Forwarding and DMZ

Supports high standard of 8KV/15KV ESD protection.

Only 1 left in stock

SKU: N2944 Categories: Brand, Networking, Totolink, Wi-Fi Router

TOTOLINK LR1200 AC1200 DUAL BAND 4G LTE ROUTER

Hardware

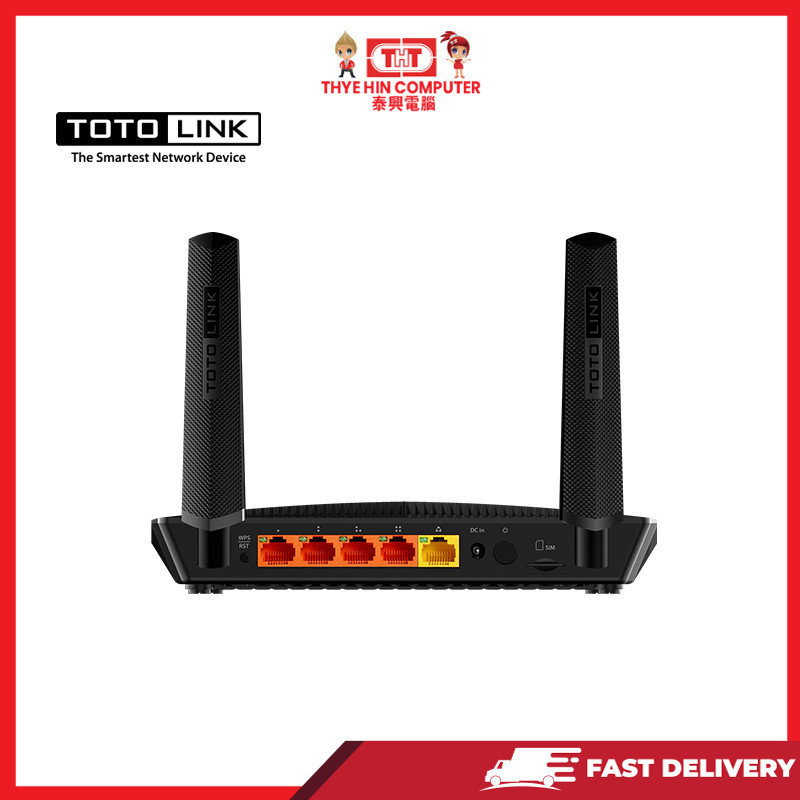

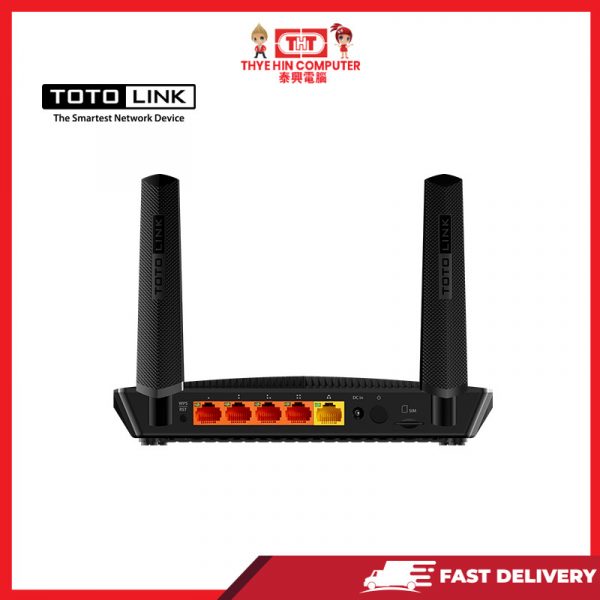

Interface	– 1 * 10/100M WAN Port (With LED) – 4 * 10/100M LAN Port(With LED) – 1 * Standard SIM card slot, – 1 * DC jack
Power Supply	– DC 12V / 1A
Button	– 1 RST/WPS Button – 1Power On/Off Button
LED Indicator	– 1 Sys, 1 SMS, 1 WIFI, 12G/3G, 1LTE,4Signal
Antenna	– 2 * 5dBi internal antennas (2.4/5GHz), – 2 * 5dBi detachable antennas (4G)
Dimensions (L x W x H)	– 120X180 X256mm

Wireless
Standards		– IEEE 802.11ac, – IEEE 802.11a, – IEEE 802.11b, – IEEE 802.11g , – IEEE 802.11n
RF Frequency		– 2.4GHz/5GH
Data Rate		– 2.4GHz: Up to 300Mbps – 5GHz: Up to 867Mbps
EIRP		– 2.4GHz < 20dBm – 5GHz < 20dBm
Wireless Security		– WPA2/WPA Mixed
Reception Sensitivity		– 2.4G:11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER – 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER

LTE Mode
LTE chip(PCIe, optional, customizable)		– Qualcomm MDM9x07
LTE Network Type and Band (1)		– 4G:FDD-LTE B1,B3,B5,B8 TDD-LTE B38,B39,B40,B41 – 3G: TD-WCDMA B34,B39, WCDMA:B1,B8, CDMA2000*BC0,1XEVDO, – 2G: GSM&900/1800
LTE Network Type and Band (2)		– 4G:FDD-LTE B1,B3,B5,B7,B8,B20, TDD-LTE B38,B40,B41 – 3G: WCDMA B1/B5/B8 – 2G: GSM B3,B8
LTE Network Type and Band (3)		– 4G:FDD-LTE B1,B2,B3,B4,B5,B7,B8,B28. TDD-LTE B40 – 3G: WCDMA B1,B2,B5,B8

Software
Home State	– WAN information, LAN information, System information
WAN Type	– Static IP, DHCP, PPPoE, 4G
Wireless Functions	– Multiple SSIDs, MAC Authentication, WPS
Firewall	– MAC Filtering, IP/Port Filtering, URL Filtering, DMZ
Management	– Password, System Config, Time Setup, Firmware update, System Log
Device capacity	– 2.4G: Max 32 users – 5G: Max 32 users

Others
System Requirements		– Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, – NetWare®, UNIX® or Linux.
Package Contents		– LR1200 Wireless Router * 1 – Power Adapter * 1 – Ethernet Cable * 1 – SIM Adapter (Nano, Micro) – Quick Installation Guide * 1
Environment		– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 10%~90% non-condensing – Storage Humidity: 5%~90% non-condensing
