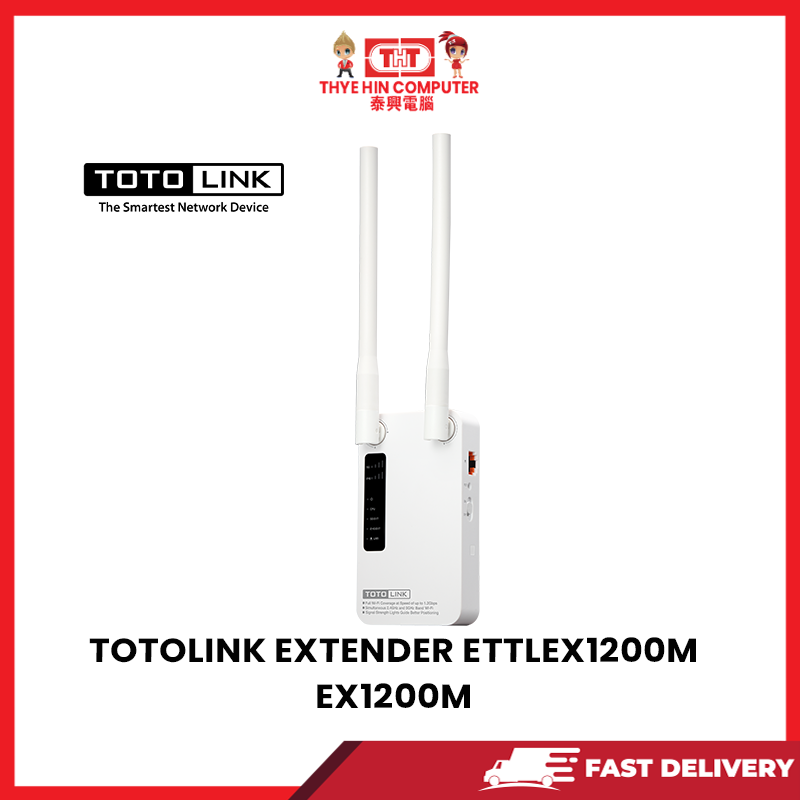

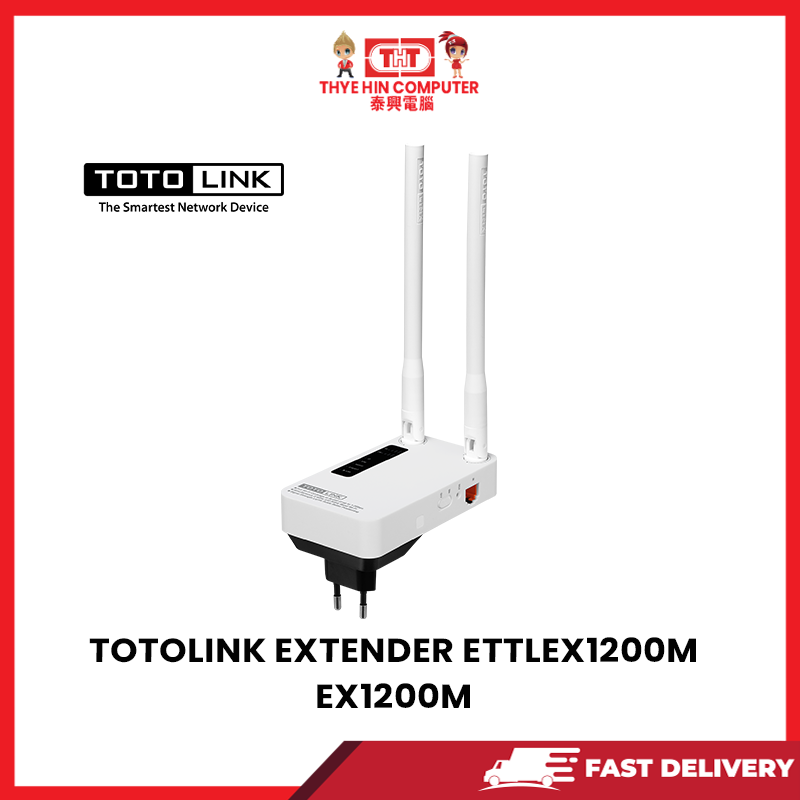

TOTOLINK EXTENDER ETTLEX1200M EX1200M [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Hardware

Interface

Button

– 2 *5dBi External Antennas

Dimensions (L x W x H)

– 117 x 72 x 66mm (not including antennas)

Wireless

Standards

– IEEE802.11ac,

– IEEE 802.11a,

– IEEE 802.11n,

– IEEE 802.11g,

– IEEE 802.11b

RF Frequency

– 2.4GHz/5GHz

Data Rate

– 2.4GHz: 300Mbps

– 5GHz: 867Mbps

– 2.4GHz < 20dBm

– 5GHz < 20dBm

Reception Sensitivity

– 2.4GHz：

    11b 11M：-81dBm @ 8％PER

    11g 54M：-68dBm @ 10％PER

    11n HT20 MCS7：-65dBm @ 10％PER

    11n HT40 MCS7：-62dBm @ 10％PER

– 5GHz：

    11a 54M：-68dBm @ 10％PER

    11n HT20 MCS7：-65dBm @ 10％PER

    11n HT40 MCS7：-62dBm @ 10％PER

    11ac VHT80 MCS9：-51dBm @ 10％PER

Advanced Features

– Easy Wi-Fi Extension by Smart Phone

– TOTOLINK APP

Others

Package Contents

– EX1200M Wireless Extender *1

– Ethernet Cable *1

– Quick Installation Guide *1

Environment

– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

– Operating Humidity: 5%~95% non-condensing

– Storage Humidity: 5%~95% non-condensing
