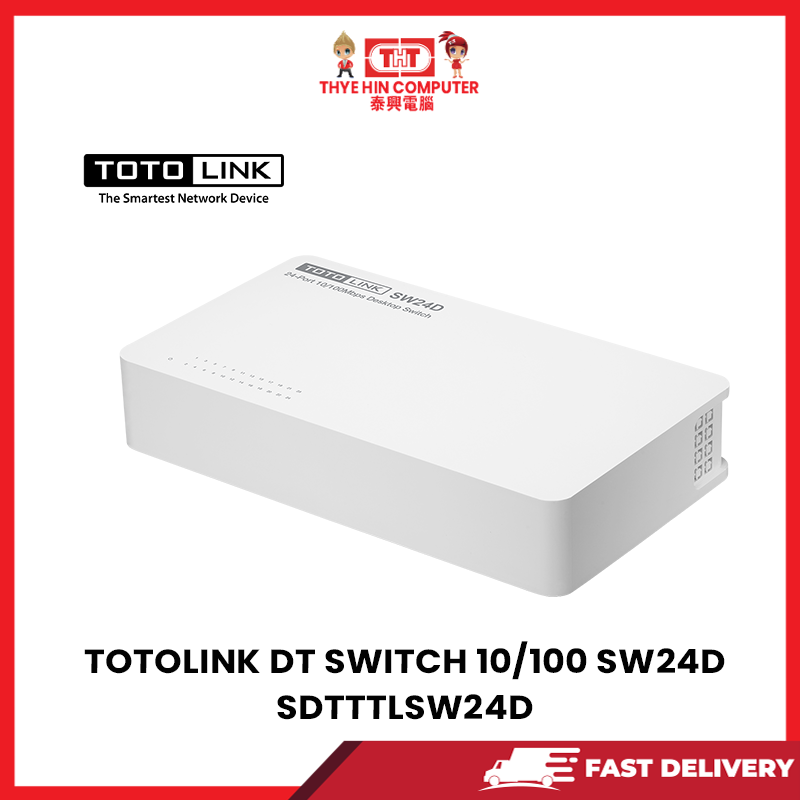

TOTOLINK DT SWITCH 10/100 SW24D SDTTTLSW24D [SBN:YES NILAI:NO MELAKA:NO HPS:NO]
RM199.00
|
General |
|
|
Standards |
– IEEE 802.3, – IEEE 802.3u, – IEEE 802.3x, |
|
Interface |

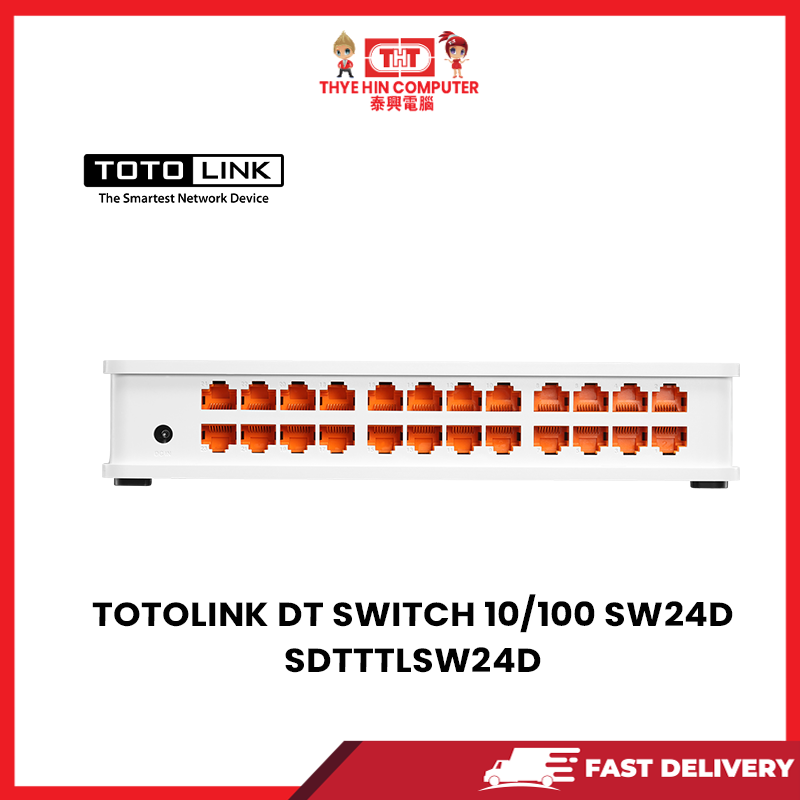

– 24*10/100Mbps auto-negotiation RJ-45 Ports
(Auto Negotiation/Auto MDI/MDIX |
|
Power Supply |
– DC 9V/800mA |
|
LED Indicators |
– 1*Power, Link/Act (1~24) |
|
Dimensions(L x W x H) |
– 8.9 x 5.0 x 1.8in. (227 x 127 x 45mm) |
|
MAC Address Learning |
– Auto-learning, auto update |
|
MAC Address Table |
– 8K |
|
Backup Bandwidth |
– 4.8Gbps |
|
Network Media |
– 10BASE-T: UTP Cat 3, 4, 5 cable
– 100BASE-TX: UTP Cat 5, 5e or above cable |
|
Frame Filtering |
– 10Mbps: 14,880pps – 100Mbps: 148,800pps |
|
Transfer Method |
– Store-and-Forward |
|
Others |
|||||
|
Package Contents |
– SW24D Desktop Switch – Power Adapter – Quick Installation Guide |
||||
|
Environment |
– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 5%~95% non-condensing – Storage Humidity: 5%~95% non-condensing |
||||
In stock
TOTOLINK DT SWITCH 10/100 SW24
|
General |
|
|
Standards |
– IEEE 802.3, – IEEE 802.3u, – IEEE 802.3x, |
|
Interface |
– 24*10/100Mbps auto-negotiation RJ-45 Ports
(Auto Negotiation/Auto MDI/MDIX |
|
Power Supply |
– DC 9V/800mA |
|
LED Indicators |
– 1*Power, Link/Act (1~24) |
|
Dimensions(L x W x H) |
– 8.9 x 5.0 x 1.8in. (227 x 127 x 45mm) |
|
MAC Address Learning |
– Auto-learning, auto update |
|
MAC Address Table |
– 8K |
|
Backup Bandwidth |
– 4.8Gbps |
|
Network Media |
– 10BASE-T: UTP Cat 3, 4, 5 cable
– 100BASE-TX: UTP Cat 5, 5e or above cable |
|
Frame Filtering |
– 10Mbps: 14,880pps – 100Mbps: 148,800pps |
|
Transfer Method |
– Store-and-Forward |
|
Others |
|||||
|
Package Contents |
– SW24D Desktop Switch – Power Adapter – Quick Installation Guide |
||||
|
Environment |
– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 5%~95% non-condensing – Storage Humidity: 5%~95% non-condensing |
||||
|
General |
|
|
Standards |
– IEEE 802.3, – IEEE 802.3u, – IEEE 802.3x, |
|
Interface |
– 24*10/100Mbps auto-negotiation RJ-45 Ports
(Auto Negotiation/Auto MDI/MDIX |
|
Power Supply |
– DC 9V/800mA |
|
LED Indicators |
– 1*Power, Link/Act (1~24) |
|
Dimensions(L x W x H) |
– 8.9 x 5.0 x 1.8in. (227 x 127 x 45mm) |
|
MAC Address Learning |
– Auto-learning, auto update |
|
MAC Address Table |
– 8K |
|
Backup Bandwidth |
– 4.8Gbps |
|
Network Media |
– 10BASE-T: UTP Cat 3, 4, 5 cable
– 100BASE-TX: UTP Cat 5, 5e or above cable |
|
Frame Filtering |
– 10Mbps: 14,880pps – 100Mbps: 148,800pps |
|
Transfer Method |
– Store-and-Forward |
|
Others |
|||||
|
Package Contents |
– SW24D Desktop Switch – Power Adapter – Quick Installation Guide |
||||
|
Environment |
– Operating Temperature: 0℃~50 ℃ (32 ℉~122℉) – Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 5%~95% non-condensing – Storage Humidity: 5%~95% non-condensing |
||||
D SDTTTLSW24D
| Weight | 1.00 kg |
|---|---|
| Dimensions | 1.00 × 1.00 × 1.00 cm |
