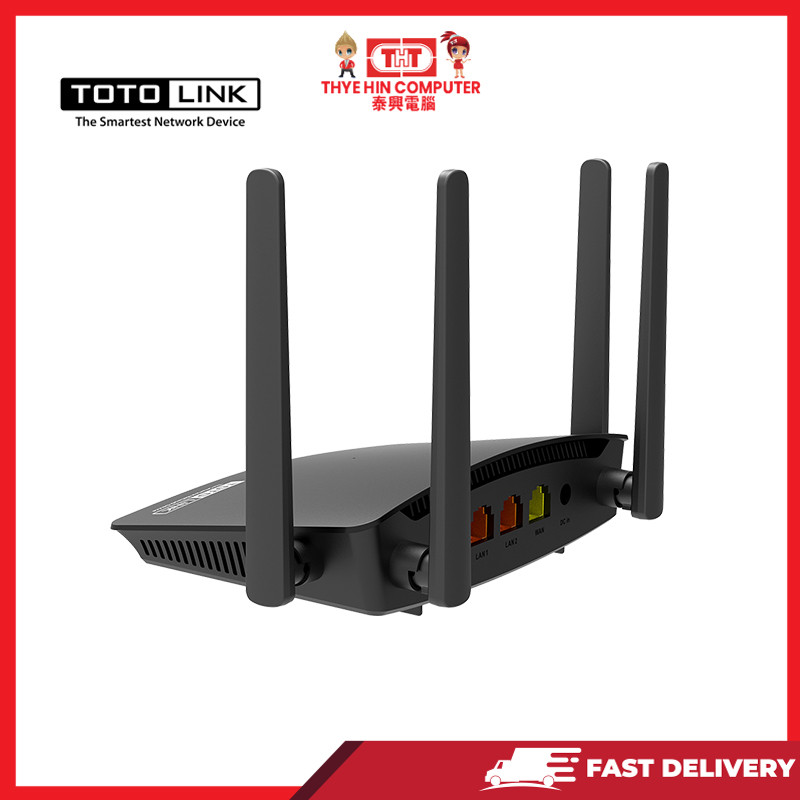

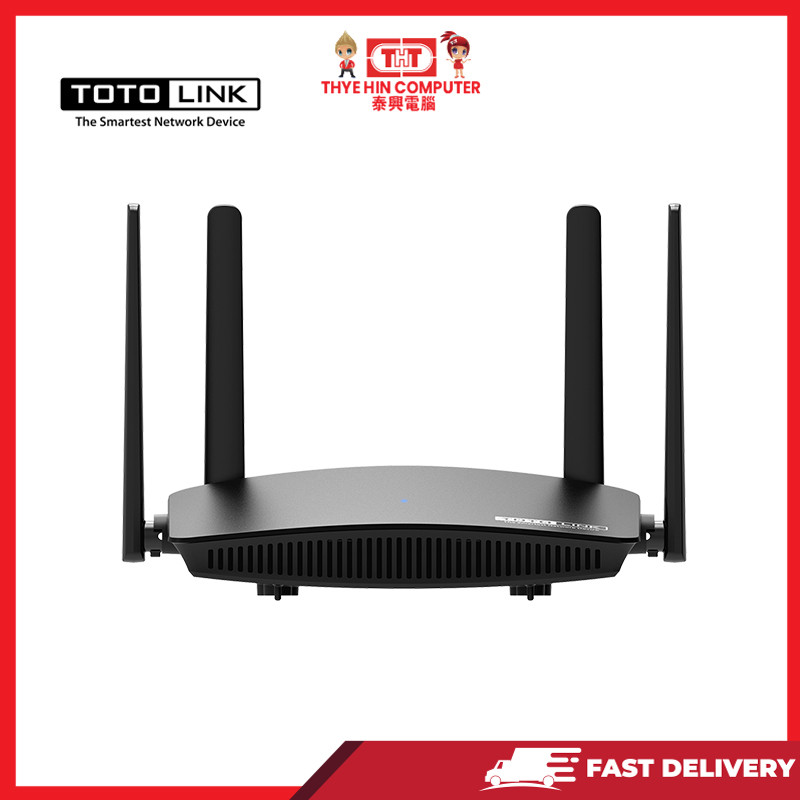

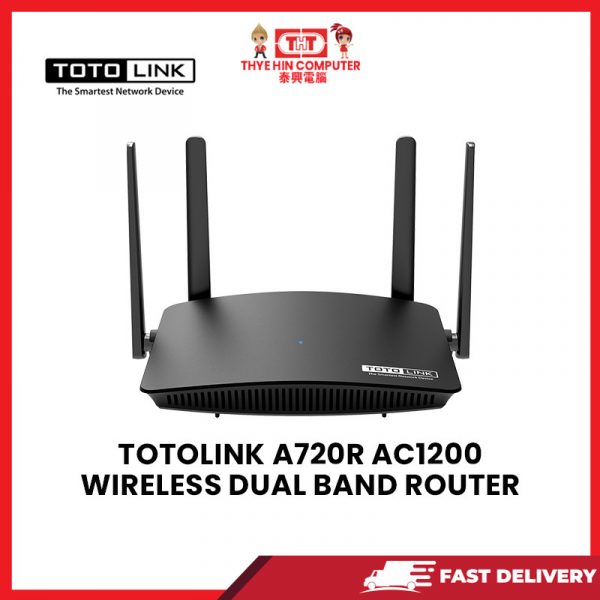

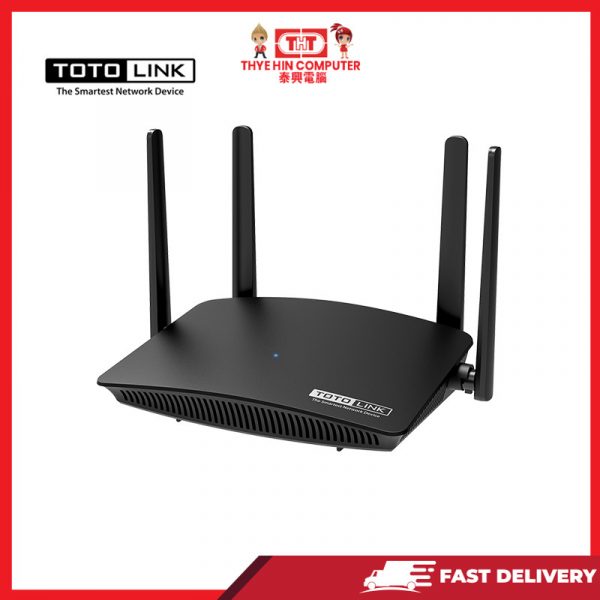

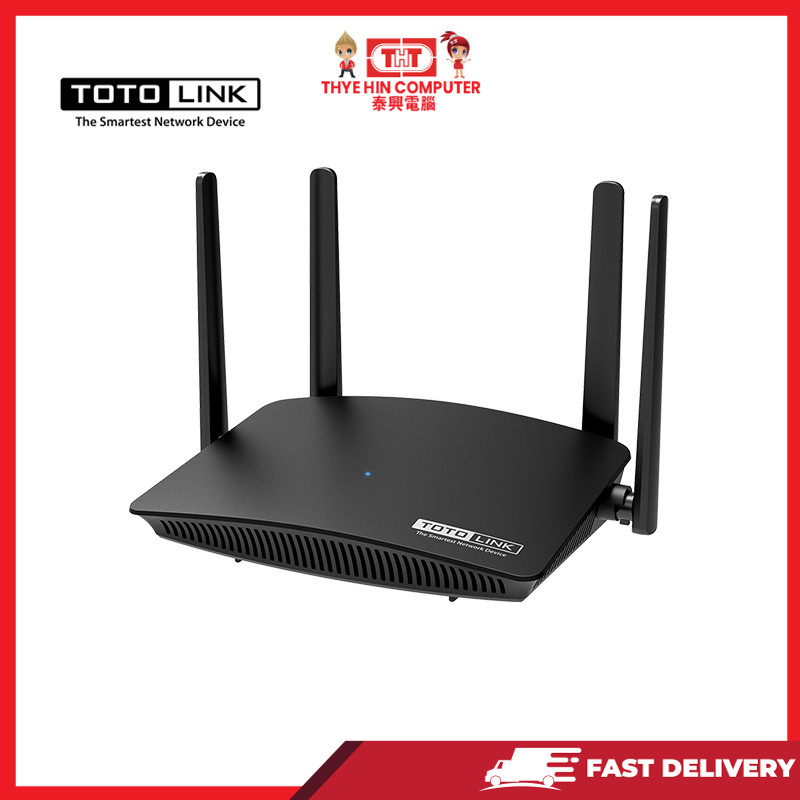

TOTOLINK A720R AC1200 WIRELESS DUAL BAND ROUTER [SBN:YES NILAI:NO MELAKA:YES HPS:NO]
RM99.00
The A720R is a fast 802.11ac router with incredible range.
It's better than many routers that are twice as expensive.
This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.
Equipped with 4 pieces omni-directional antennas, A720R delivers Wi-Fi speed up to 1167Mbps.
Meanwhile, fast WAN port and LAN ports offer a stable capability for data streaming via cable connection.
It is an ideal choice for the homes or offices with a high demand for the Internet access.
Features
- Comply with the IEEE 802.11ac Wave 2 Wi-Fi standard.
- 1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz
- Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.
- Fast WAN/LAN ports offers a stable capability for data streaming via cable connection.
- Support DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.
- Support IPv6, the next generation of internet protocol, helping you to future-proof your network.
- Provides WPA/WPA2 mixed security.
- QoS function allows to change the bandwidth for different terminals via IP address.
- IPTV function allows to enjoy online movies at home.
- Support IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding.
- Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.
- Smart UI design or totolink router APP is easy for the users to finish the basic configuration with their cellphones.
In stock
TOTOLINK A720R AC1200 WIRELESS DUAL BAND ROUTER
|
Hardware |
|
| Interface |
– 2 *100Mbps LAN Ports – 1 *100Mbps WAN Port |
| Power Supply | – DC 9V/0.8A |
| Button | – 1 *RST/WPS Button |
| LED Indicator | – 1 *SYS |
| Antenna |
– 2 * 2.4GHz fixed antennas(5dBi) – 2 * 5GHz fixed antennas(5dBi) |
| Dimensions (L x W x H) | – 142X95 X41mm |
|
Wireless |
|||||
| Standards |
– IEEE 802.11ac, – IEEE 802.11a, – IEEE 802.11b, – IEEE 802.11g, – IEEE 802.11n |
||||
| RF Frequency |
– 2.4GHz/5GHz |
||||
| Data Rate |
– 2.4GHz: Up to 300Mbps – 5GHz: Up to 867Mbps |
||||
| EIRP |
– 2.4GHz < 20dBm – 5GHz < 20dBm |
||||
| Wireless Security |
– WPA/WPA2 Mixed |
||||
| Reception Sensitivity |
– 2.4G:11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER
– 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER
|
||||
|
Software |
|
|
Operation Mode |
– Gateway Mode – Repeater Mode – AP Mode – WISP Mode |
|
Home |
– Quick Setup – Basic setup – Advanced setup – QR Code – LED – Logout – Reboot |
|
Network |
– WAN Setting – LAN Setting – DDNS Setting – IPTV Setting – IPv6 Setting |
|
WAN Type |
– Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP |
|
Wireless |
– Basic setup – Guest Network(Multiple SSID) – Wireless Schedule – Access Control – Advanced setup |
|
Parental Control |
– Internet time control based on MAC |
| QoS |
– Up/Down speed control on WAN, – Bandwidth control based on IP address |
|
Device management |
– Static Route – Routing Table – IP/MAC Binding |
| Security |
– MAC Filtering – IP/Port Filtering – URL Filtering |
|
NAT |
– Virtual Server(Port Forwarding) – DMZ – VPN passthrough |
| Tools |
– Upgrade Firmware – Time Setup – Remote management – Password Settings – Reboot Schedule – System Log and so on |
|
Others |
|||||
| Package Contents |
– A720R Wireless Router *1 – Power Adapter *1 – Ethernet Cable *1 – Quick Installation Guide *1 |
||||
| Environment | – Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
– Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 5%~95% non-condensing – Storage Humidity: 5%~95% non-condensing |
||||
| Weight | 0.20 kg |
|---|---|
| Dimensions | 14.20 × 9.50 × 4.10 cm |
