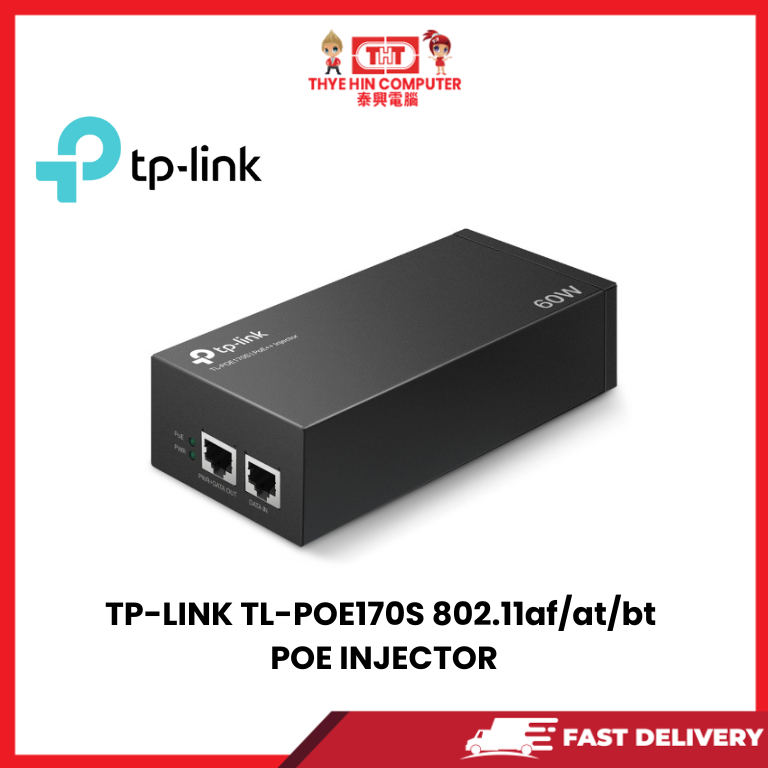

TL-POE170S 802.11af/at/bt POE INJECTOR [SBN:YES NILAI:NO MELAKA:NO HPS:NO]

RM359.00

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
Durable metal casing

Only 1 left in stock

SKU: N3509 Categories: Brand, Network Accessories, Networking, Tplink

TL-POE170S 802.11af/at/bt POE INJECTOR

– NETWORK
– Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

– GENERAL
– Certification: FCC, CE, RoHS
– Environment:
– Operating Temperature: 0°C to 45°C (32°F to 113°F)
– Storage Temperature: -40°C to 70°C (-40°F to 158°F)
– Operating Humidity: 10% to 90% RH non-condensing
– Storage Humidity: 5% to 90% RH non-condensing
– Material: Metal Casing

– PACKAGE CONTENTS
– PoE++ Injector TL-POE170S
– Installation Guide
– Power Cord
– RJ45 Cable

– HARDWARE FEATURES
– Network Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
– EIA/TIA-568 100Ω STP (maximum 100 m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
– EIA/TIA-568 100Ω STP (maximum 100 m)
– 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m)
– Ports:
– 1 10/100/1000Mbps RJ45 data-in port
– 1 10/100/1000Mbps RJ45 power+data-out port
– 1 AC socket
– Power Consumption:
– Input: 100-240 V, 50/60 Hz, 1.6A
– Output: Auto-determine the necessary power requirements (max. 60 W)
– Basic Function:
– Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
– Auto-determine the necessary power requirements
– Wall-mounting and desktop installation supported
– Plug-and-Play
– Dimensions (W x D x H): 6.1 x 2.8 x 1.7 in (155 x 70 x 42 mm)
