TEAM CARDEA CERAMIC C4400 M.2 2280 PCIE4X4 1TB [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Name: TEAM CARDEA CERAMIC C4400 M.2 2280 PCIE4X4 1TB [SBN:NO NILAI:NO MELAKA:NO HPS:NO] | Thye Hin Computer
SKU: H1793
Price: 399.00 MYR
Availability: OutOfStock

RM399.00

Out of stock

SKU: H1793 Categories: Brand, Internal Storage, Storage

TEAM CARDEA CERAMIC C4400 M.2 2280 PCIE4X4 1TB

Our SSD sample is of a 2TB capacity and this SSD utilizes the Phison E16 which is based on a component build that TeamGroup believes will meet the needs of gamers everywhere. We found that this SSD fit perfectly in our ASRock X570 Creator motherboard with their integrated Gen 4 heatsink, however, it was a tight fit on a different motherboard sample, the MSI MPG X570 Gaming Pro Carbon, and we had to remove the ceramic branding for proper installation which wasn’t too difficult.

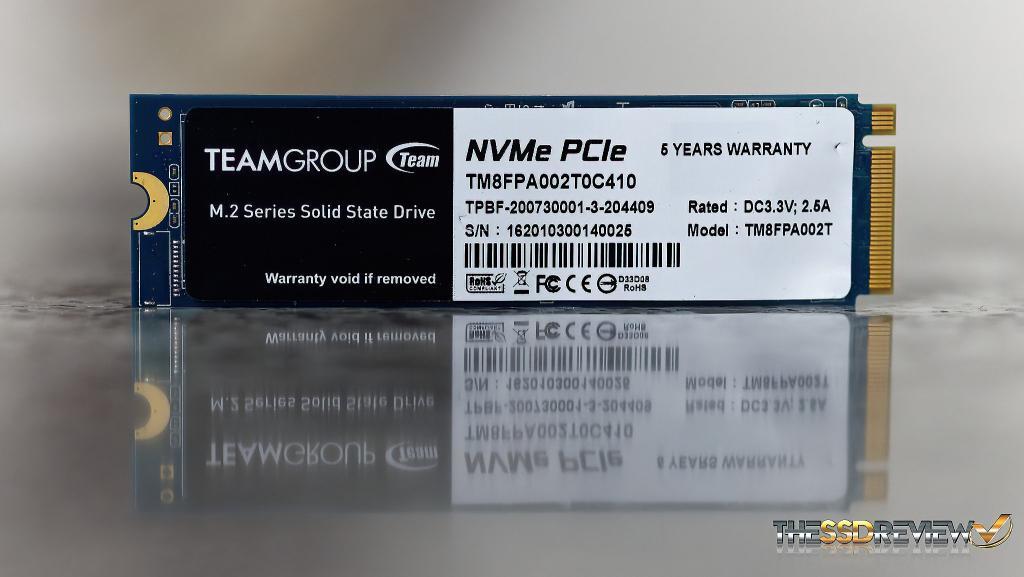

The TeamGroup T-FORCE CARDEA C440 SSD is a PCIe 4.0 x4 (four lane) M.2 SSD that is of the 2280 (80mm) factor and utilizes NVMe 1.3 protocol. It is available in one and two terabyte capacities, both with identical specifications of 5GB/s read, 4.4GB/s write and up to 750K read and write IOPS at low 4k random disk access. This SSD has a limited 5-year warranty which is accompanied by a 1800TBW (terabytes written) rating for the 1TB capacity, and doubled to 3600TBW for 2TB.

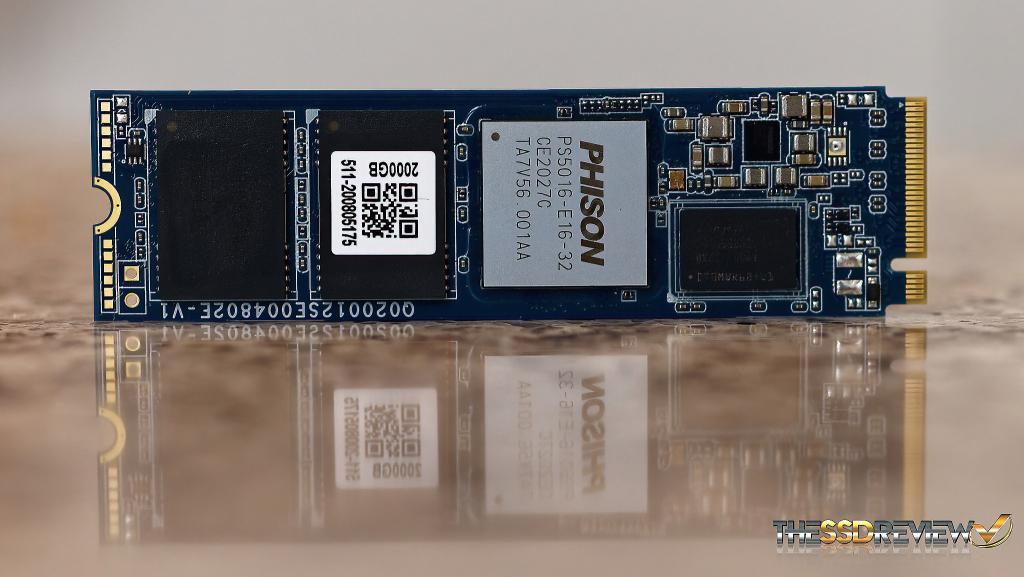

The C440 is based on the Phison PS5016-E16 NVMe 8-channel controller along with four pieces of Kioxia 96-layer TLC NAND flash memory, each having a base capacity of 512GB for a total of 2TB. Formatted, this SSD provides the user with 1863GB of storage space for their use.

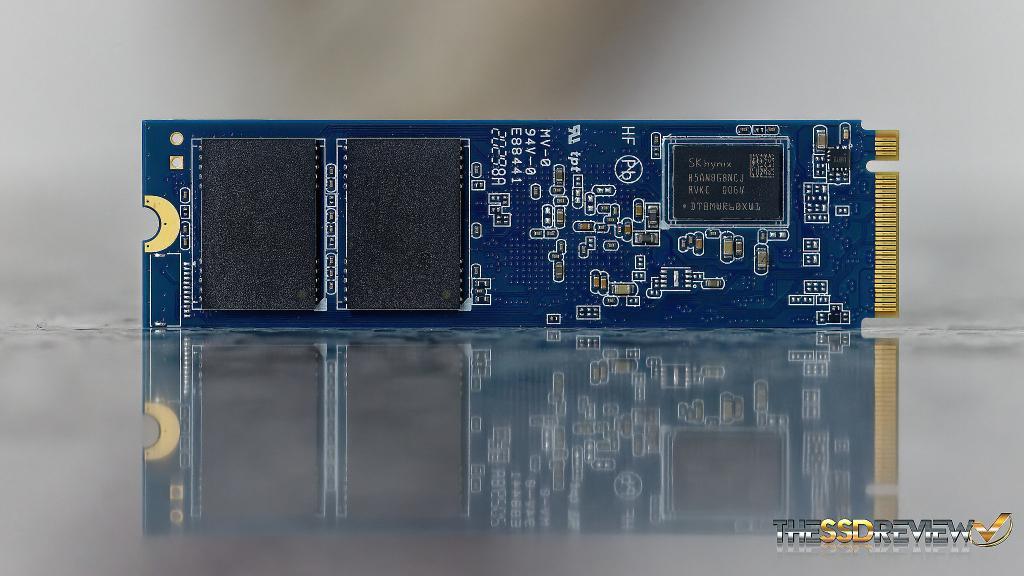

The TeamGroup T-FORCE CARDEA C440 NVMe SSD is also a two-sided SSD, each side containing a SKHynix DDR4 DRAM chip of 512MB, for a 1GB DRAM buffer for each GB of SSD size.

Model
Brand	Team Group
Series	T-FORCE CARDEA Ceramic C440
Model	TM8FPA001T0C410
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Details
Form Factor	M.2 2280
Capacity	1TB
Memory Components	3D NAND
Interface	PCIe Gen4 x4 with NVMe 1.3

Performance
Max Sequential Read	Up to 5000 MBps
Max Sequential Write	Up to 4400 MBps
4KB Random Read	Up to 750,000 IOPS
4KB Random Write	Up to 750,000 IOPS
MTBF	1,700,000 hours
HeatSink	Yes

Features
Features	Terabyte Written: >1,800TB Unleash the ultimate power Beautiful and thin as a snowflake Top specification that breaks through the limit Aerospace ceramic material for better heat dissipation Trustworthy smart management technology

Environmental
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Operating Humidity	RH 90% under 40 celsius degree
Max Shock Resistance	1,500G / 0.5 ms
Max Vibration Resistance	80~2,000 Hz / 20G
