ST65F 650W ATX 230V 80 PLUS (BLACK FLAT CABLE VERSION) POWER SUPPLY [SBN:NO NILAI:NO MELAKA:NO HPS:NO]
RM255.00
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- PCIe 8pin and PCIe 6pin connector support
- Silent running 120mm fan with 18dBA
Out of stock

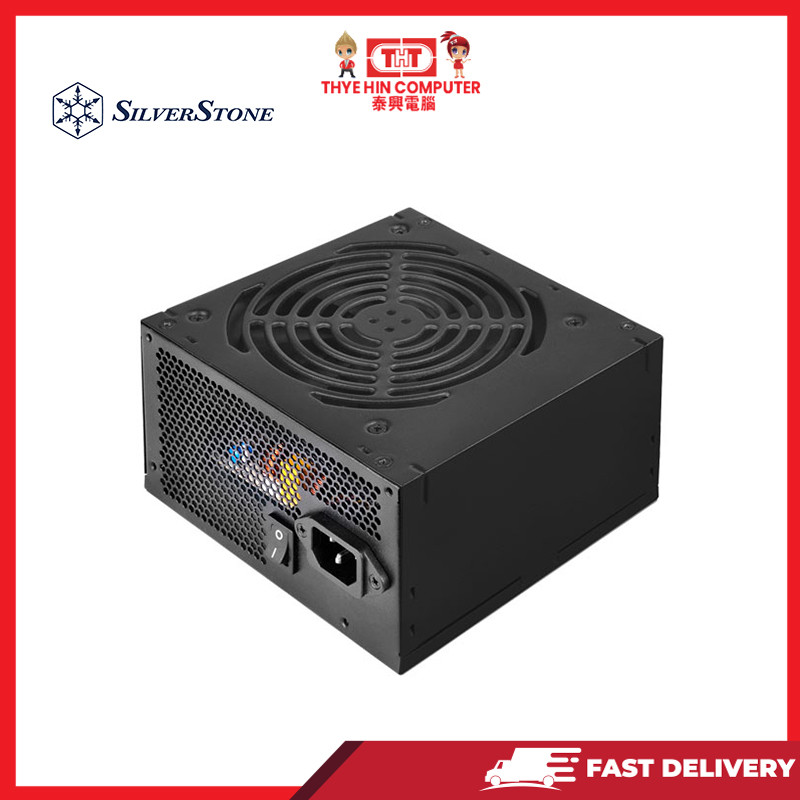

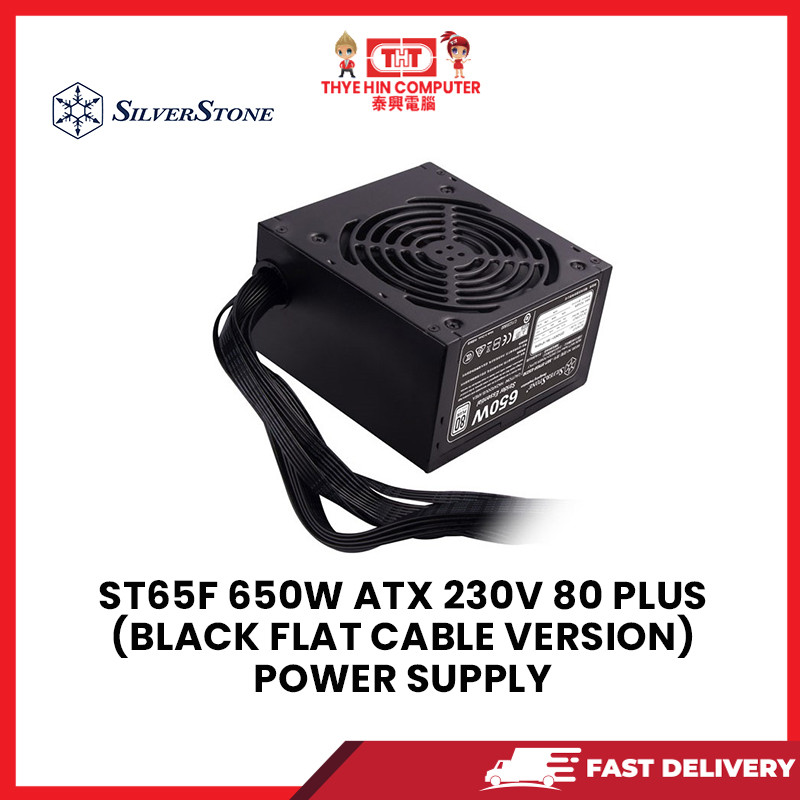

ST65F 650W ATX 230V 80 PLUS (BLACK FLAT CABLE VERSION) POWER SUPPLY
Product No.: SST-ST65F-ES230-BK
Color: Black（Lead-Free Paint）
Max. DC Output: 650W
Power density: 360W per liter
Load Range:
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 20A | 20A | 50A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | / |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V: 120W
Combined +12V: 600W
Input Voltage: 180V~264V
Input Frequency Range: 47Hz~63Hz
PFC: Active PFC（PF>0.9 at full load）
Efficiency: 82% ~ 85% at 20% ~ 100% loading
MTBF: 100,000 hours
Operating temperature: 0°C ~ 40°C
Protection:
Over power protection
Over voltage protection
Short circuit protection
Connectors:
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8 / 6-Pin PCIe connector（"500mm / 150mm" x 2）
4 x SATA connector（"500mm / 150mm" x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）

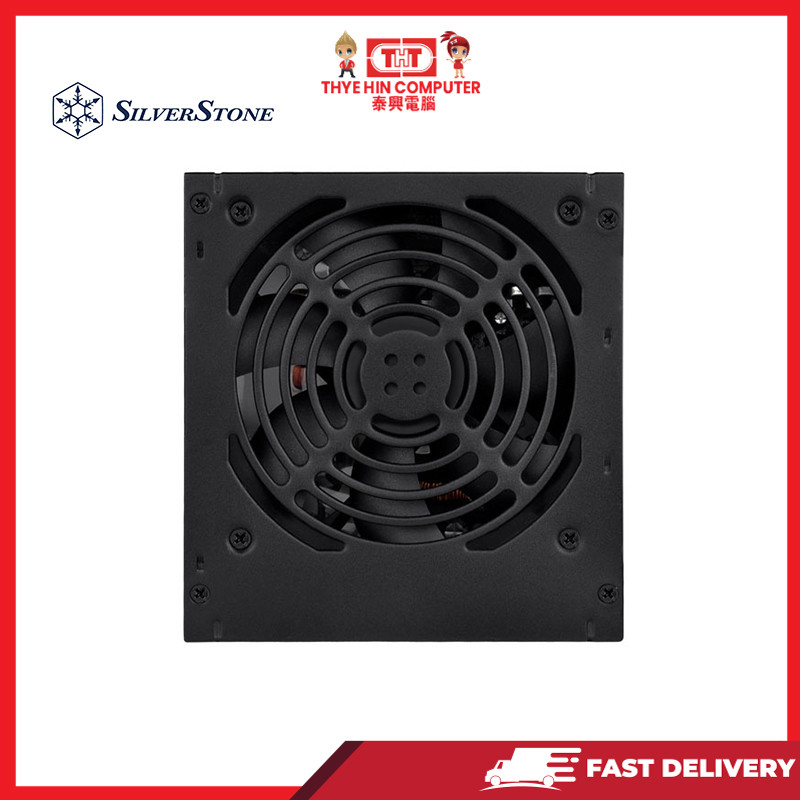

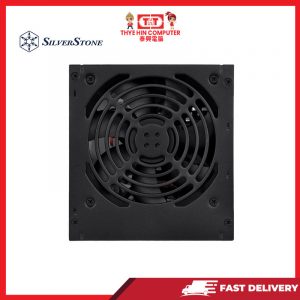

Cooling System: Single 120mm silent fan
Noise Level: 18 dBA minimum
Certification: 80 PLUS
Form factor: ATX
Dimension: 150 mm (W) x 86 mm (H) x 140 mm (D)
Weight: 1.42 kg
| Weight | 1.42 kg |
|---|---|
| Dimensions | 14 × 15 × 8.6 cm |
