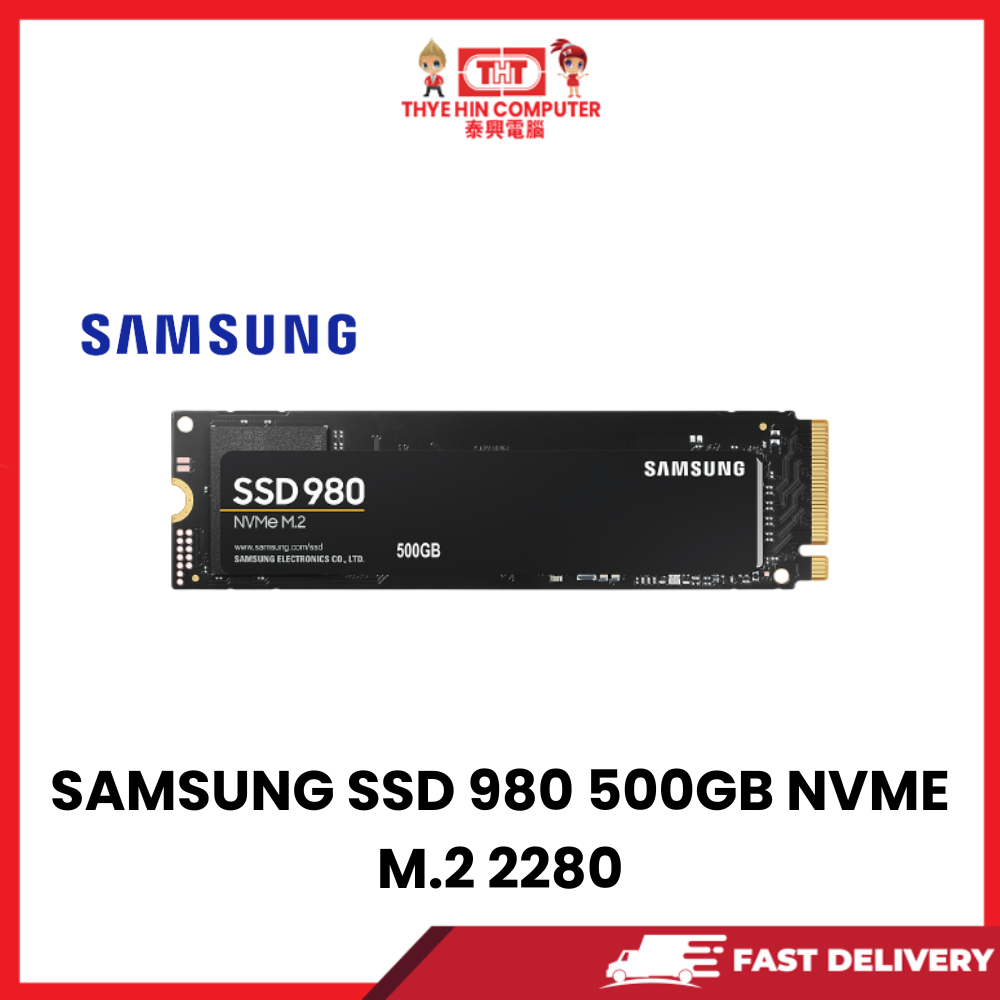

SAMSUNG SSD 980 500GB NVME M.2 2280 [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

SAMSUNG SSD 980 500GB NVME M.2 2280

General Feature

• Application : Client PCs
• Capacity : 500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor : M.2 (2280)
• Interface : PCIe Gen 3.0 x4, NVMe 1.4
• Dimension (WxHxD) : 80.15 x 22.15 x 2.38 (mm)
• Weight : Max 8.0 g Weight
• Storage Memory : Samsung V-NAND 3-bit MLC
• Controller : Samsung in-house controller
• Cache Memory : HMB(Host Memory Buffer)

Special Feature

• TRIM Support : Supported
• S.M.A.R.T Support : Supported
• GC (Garbage Collection) : Auto Garbage Collection Algorithm
• Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support : Not supported
• Device Sleep Mode Support : Yes

Performance

• Sequential Read : Up to 3,100 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write : Up to 2,600 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD32) : Up to 400,000 IOPS* Performance may vary based on system hardware & configuration
• Random Write (4KB, QD32) : Up to 470,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4KB, QD1) : Up to 17,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4KB, QD1) : Up to 54,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (system level) : *Average: 4.3 W*Maximum: 5.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle) :Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage :3.3 V ± 5 % Allowable voltage
• Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
• Operating Temperature : 0 – 70 ℃ Operating Temperature
• Shock : 1,500 G & 0.5 ms (Half sine)
