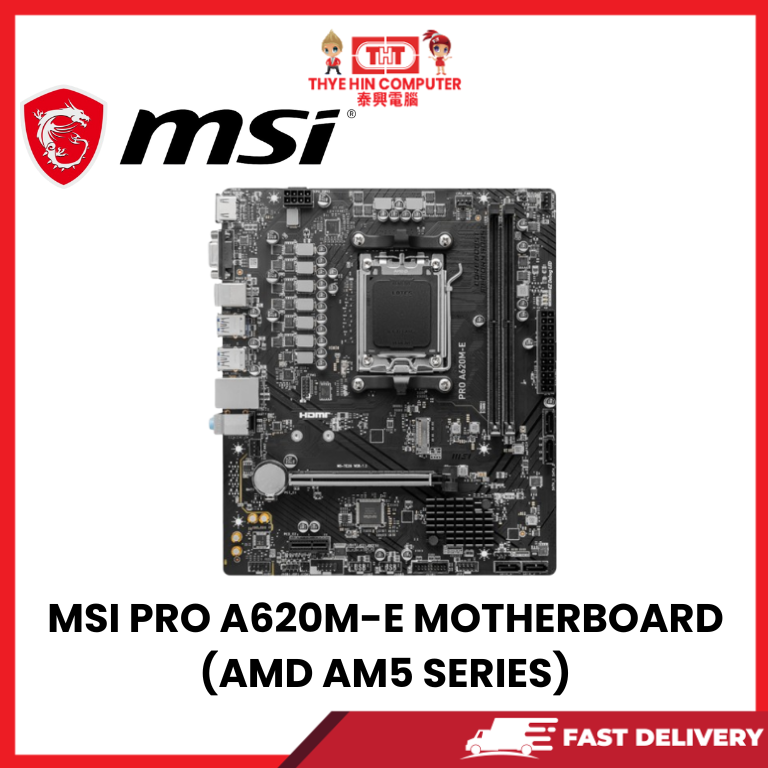

MSI PRO A620M-E MOTHERBOARD [SBN:NO NILAI:YES MELAKA:NO HPS:NO]

• Chipset: AMD A620

• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

• Socket: AM5

Memory

• 2× DDR5 DIMM slots, Dual Channel

• Maximum Capacity: 128GB

• Supported Speeds: DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz

• Supports AMD EXPO and non-ECC, unbuffered memory

Graphics Output

• 1× HDMI (up to 4K @ 60Hz)

• 1× VGA (up to 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz)

• Available only with processors featuring integrated graphics

Expansion Slots

• 1× PCIe 4.0 x16 slot (from CPU)

• 1× PCIe 3.0 x1 slot (from chipset)

Storage

• 1× M.2 slot (PCIe 4.0 x4, supports 2280/2260 devices)

• 4× SATA 6Gb/s ports

LAN

• Realtek RTL8111H Gigabit LAN

Audio

• Realtek ALC897 Codec

• 7.1-Channel High Definition Audio

Internal I/O Connectors

• 1× 24-pin ATX Power Connector

• 1× 8-pin CPU Power Connector

• 1× CPU Fan Header

• 2× System Fan Headers

• 1× Front Audio Header

• 1× RGB LED Connector

• 1× COM Port Header

• 1× TPM 2.0 Header

• 2× Front Panel Headers

• 4× USB 2.0 Headers

• 2× USB 5Gbps Type-A Headers

Rear I/O Ports

• 1× HDMI

• 1× VGA

• 4× USB 5Gbps Type-A ports

• 2× USB 2.0 ports

• 1× RJ45 LAN port

• 3× Audio jacks
