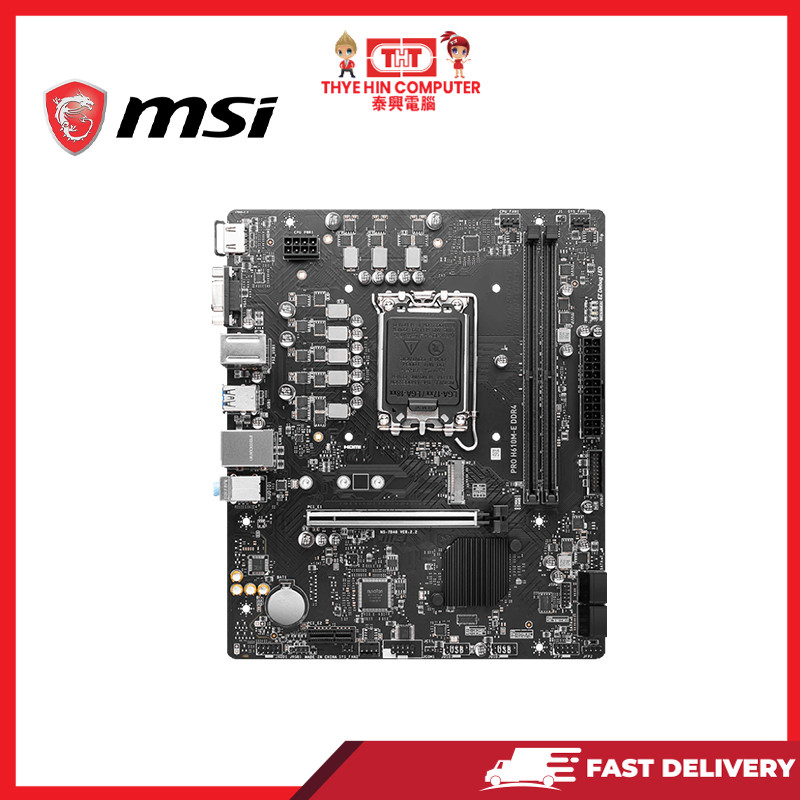

MSI INTEL MOTHERBOARD PRO H610M-E DDR4

PROCESSOR
Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700

CHIPSET    Intel® H610 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB 1
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1

ONBOARD GRAPHICS
1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1 / 2

SATA PORTS    4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT
1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices

AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

LAN    1x Realtek® RTL8111H 1Gbps LAN controller

POWER CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin +12V power connector

INTERNAL USB CONNECTORS
1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports

FAN CONNECTORS
1x 4-pin CPU fan connector
2x 4-pin system fan connectors

SYSTEM CONNECTORS
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector

JUMPERS    1x Clear CMOS jumper

LED FEATURES
1x 4-pin RGB LED connector
4x EZ Debug LED

BACK PANEL PORTS
HDMI
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
MSI PRO H610M-B DDR4 back panel ports

DIMENSIONS
M-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
