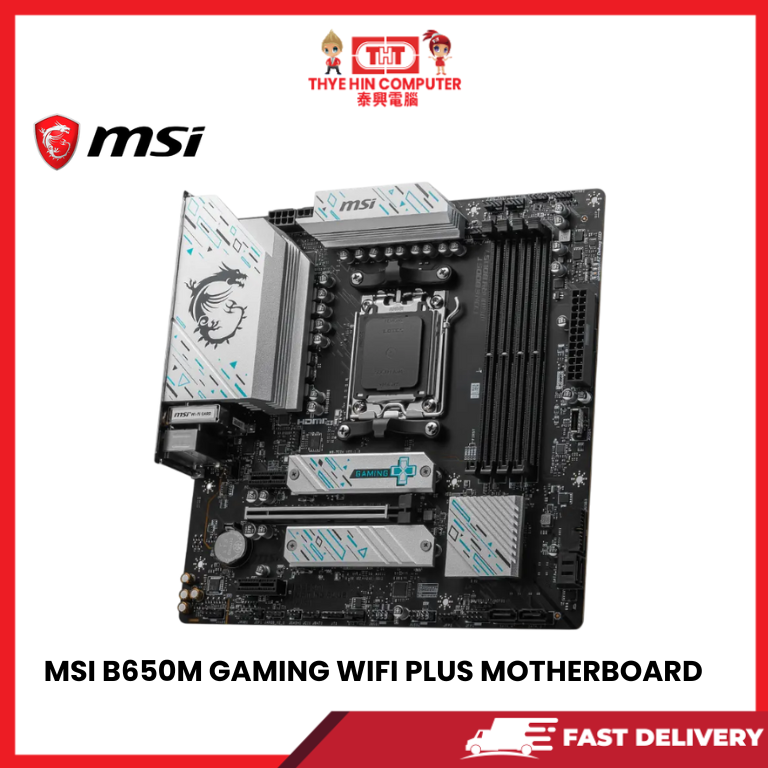

MSI B650M GAMING WIFI PLUS MOTHERBOARD [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

 Motherboard Key Specifications

CPU Support

• AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

 Memory

• 4x DDR5 UDIMM, up to 256GB

• Supports DDR5 speeds up to 7200+ MHz (OC)

• Dual-Channel, Non-ECC, Unbuffered

• Supports AMD EXPO™

Memory OC Speeds (Max.):

• 1DPC 1R: up to 7200+ MHz

• 1DPC 2R / 2DPC 1R: up to 6000+ MHz

• 2DPC 2R: up to 5400+ MHz

Graphics Output

• 1x HDMI™ 2.1 (4K@60Hz)*

• 1x DisplayPort 1.4 (4K@60Hz)*

  *Available only with processors featuring integrated graphics

 Expansion Slots

• 1x PCI-E x16

  • x16/x4 (Ryzen 9000/7000)

  • x8/x4 (Ryzen 8700/8600/8400)

  • x4/x4 (Ryzen 8500/8300)

• 2x PCI-E x1 (Gen 3.0 from Chipset / Gen 4.0 from CPU)

 Audio

• Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

Storage

• 2x M.2 (PCIe 4.0 x4, supports 2280/2260)

• 4x SATA 6Gb/s

• RAID 0/1/10 (SATA), RAID 0/1 (M.2 NVMe)

  *Note: M.2_2 runs at PCIe 4.0 x2 when using Ryzen 8500/8300

 USB Ports

• Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C

• Rear: 4x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C

 Network

• Realtek® RTL8125BG 2.5Gbps LAN

• Wi-Fi 6E with MU-MIMO & 160MHz support

• Bluetooth 5.3

 Internal Connectors

• 1x ATX Power, 2x CPU Power

• 1x CPU Fan, 1x Pump Fan, 3x System Fan

• RGB: 2x ARGB V2, 2x RGB

• TPM 2.0 header, JAUD, JDASH, JFP, JCI

• Additional USB headers: 4x USB 2.0, 2x USB 5Gbps, 1x USB 10Gbps Type-C
