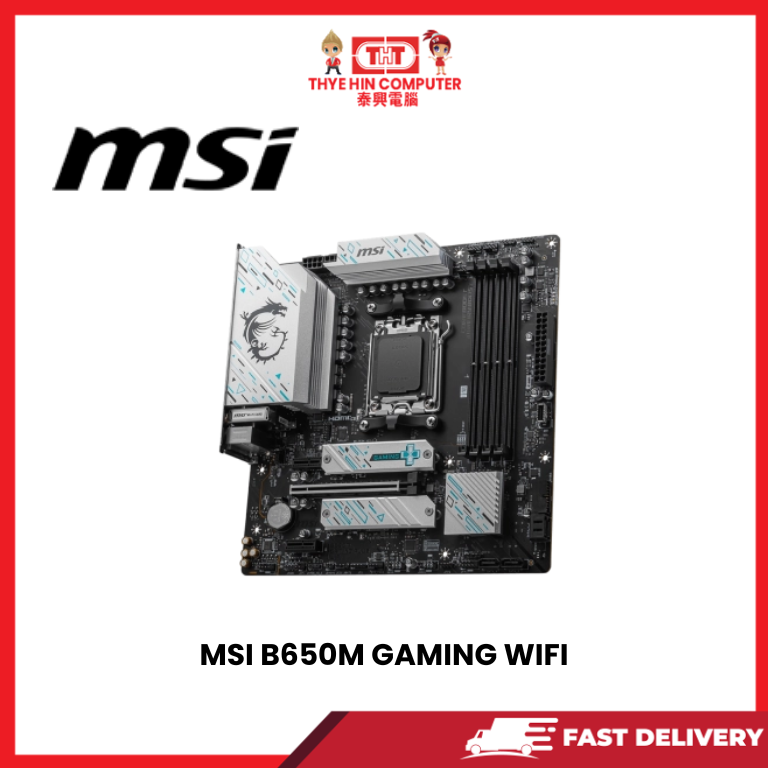

MSI B650M GAMING WIFI [SBN:NO NILAI:NO MELAKA:NO HPS:NO]

Chipset:

• AMD B650

CPU Support:

• Supports AMD Ryzen™ 8000/7000 Series Desktop Processors
• Socket AM5

Memory:

• 2x DDR5 Slots, Maximum Memory Capacity: 96GB
• Memory Support (Overclocked speeds):
  • DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
• Max Overclocking Frequency:
  • 1DPC 1R: Max speed up to 7800+ MHz
  • 1DPC 2R: Max speed up to 6400+ MHz
• Supports Dual-Channel mode
• Non-ECC, un-buffered memory
• Supports AMD EXPO™

Onboard Graphics:

• 1x HDMI™ (Support HDMI™ 2.1, 4K 60Hz max resolution) – available only for CPUs with integrated graphics
• 1x DisplayPort (Supports DP 1.4, 4K 60Hz max resolution)

Slots:

• 1x PCI-E x16 slot (Supports x16/x1):
  • x16 (For Ryzen™ 7000 Series processors)
  • x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • x4 (For Ryzen™ 5 8500G processor)
• 1x PCI-E x1 slot (PCI_E1 Gen PCIe 3.0 up to x1 from Chipset)
• PCI_E2 Gen PCIe 4.0 (Supports up to x16 from CPU)

Storage:

• 2x M.2:
  • M.2_1 (PCIe 4.0 x4, 2280 devices)
  • M.2_2 (PCIe 4.0 x4, 2280 devices, PCIe 4.0 x2 speed for Ryzen™ 5 8500G)
• 4x SATA 6G

RAID:

• Supports RAID 0, RAID 1, RAID 10 for both SATA and M.2 NVMe storage devices

USB Ports:

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 3x USB 3.2 Gen1 Type A (Rear)
• 1x USB 3.2 Gen1 Type C (Rear)
• 4x USB 3.2 Gen1 Type A (Front)

LAN:

• Realtek® RTL8125BG 2.5Gbps LAN

Wireless LAN & Bluetooth:

• AMD Wi-Fi 6E (pre-installed in M.2 Key-E slot)
• Supports MU-MIMO TX/RX, bandwidths: 20MHz, 40MHz, 80MHz, 160MHz in 2.4GHz, 5GHz, and 6GHz* bands
• Bluetooth® 5.3 (Ready with Windows 10 build 21H1 and Windows 11)

Audio:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Internal IO:

• 1x Power Connector (ATX_PWR)
• 1x Power Connector (CPU_PWR)
• 1x Front Type-C Quick Charge Connector (PD_PWR1)
• 1x CPU Fan Connector
• 3x System Fan Connectors
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 2x Addressable V2 RGB LED Connectors (JARGB_V2)
• 1x RGB LED Connector (JRGB)
• 1x TPM pin header (Supports TPM 2.0)
• 4x USB 2.0 Ports
• 4x USB 3.2 Gen1 Type A Ports

LED Features:

• 4x EZ Debug LED

Operating System:

• Supports Windows® 11 64-bit, Windows® 10 64-bit

PCB Information:

• mATX form factor
• Dimensions: 226mm x 243.84mm
