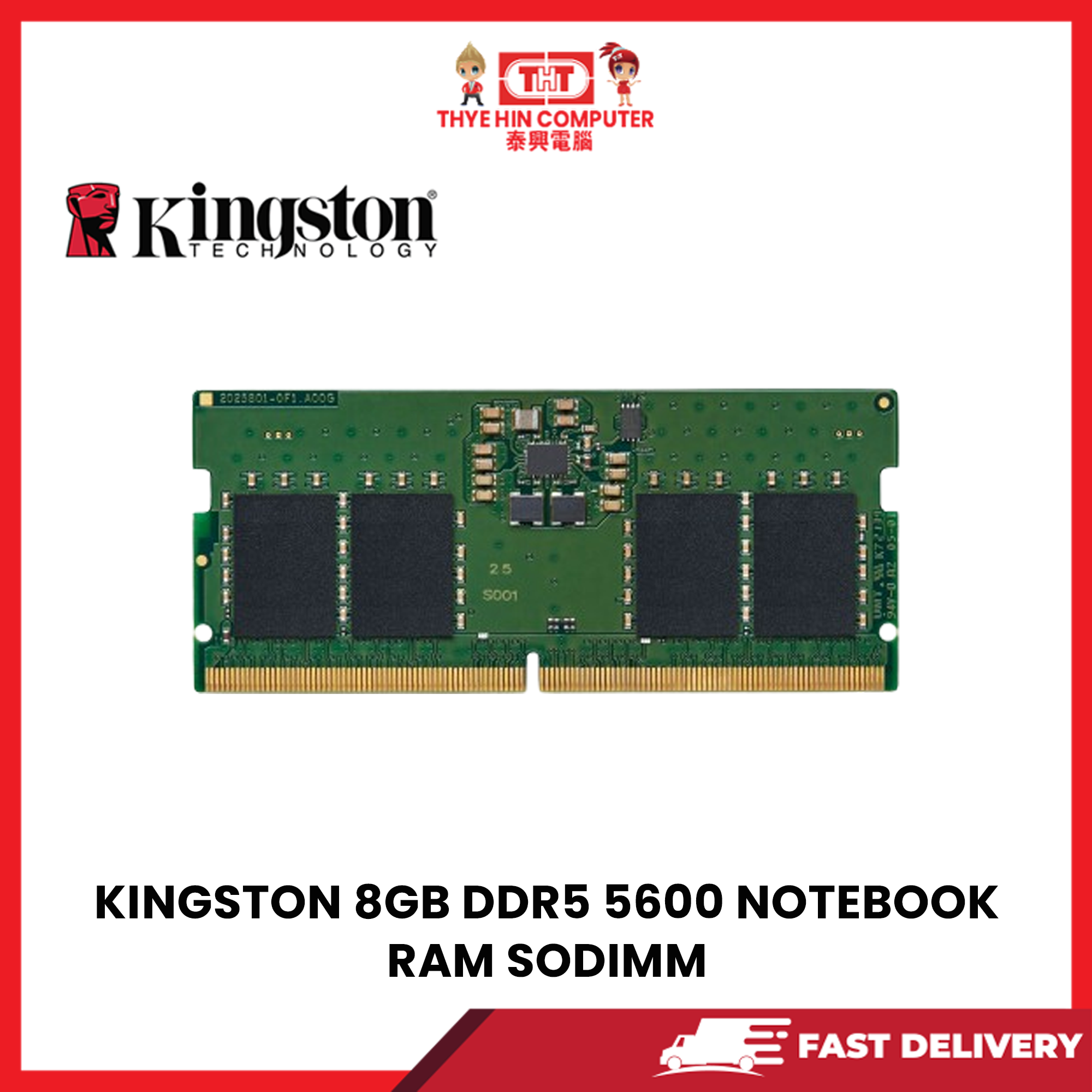

KINGSTON 8GB DDR5 5600 NOTEBOOK RAM SODIMM

DESCRIPTION
This document describes ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18" (30.00mm)
• RoHS Compliant and Halogen-Free

SPECIFICATIONS:

• CL (IDD): 46 cycles
• Row Cycle Time (tRCmin): 48ns (min.)
• Refresh to Active/Refresh: 295ns (min.)
• Command Time (tRFCmin):
• Row Active Time (tRASmin): 32ns (min.)
• UL Rating: 94 V-0
• Operating Temperature: 0° C to +85° C
• Storage Temperature: -55° C to +100° C
